Heated Oxygen Sensor

1NZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSPECTION

1. INSPECT HEATED OXYGEN SENSOR





(a) Check the resistance.

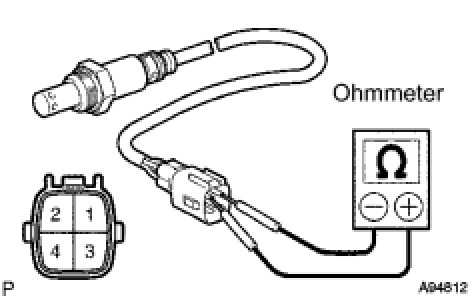

(1) Using an ohmmeter, measure the resistance between the terminals.

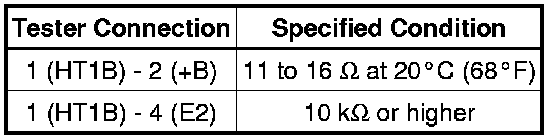

Standard resistance:





(1) If the resistance is not as specified, replace the sensor.
