Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>

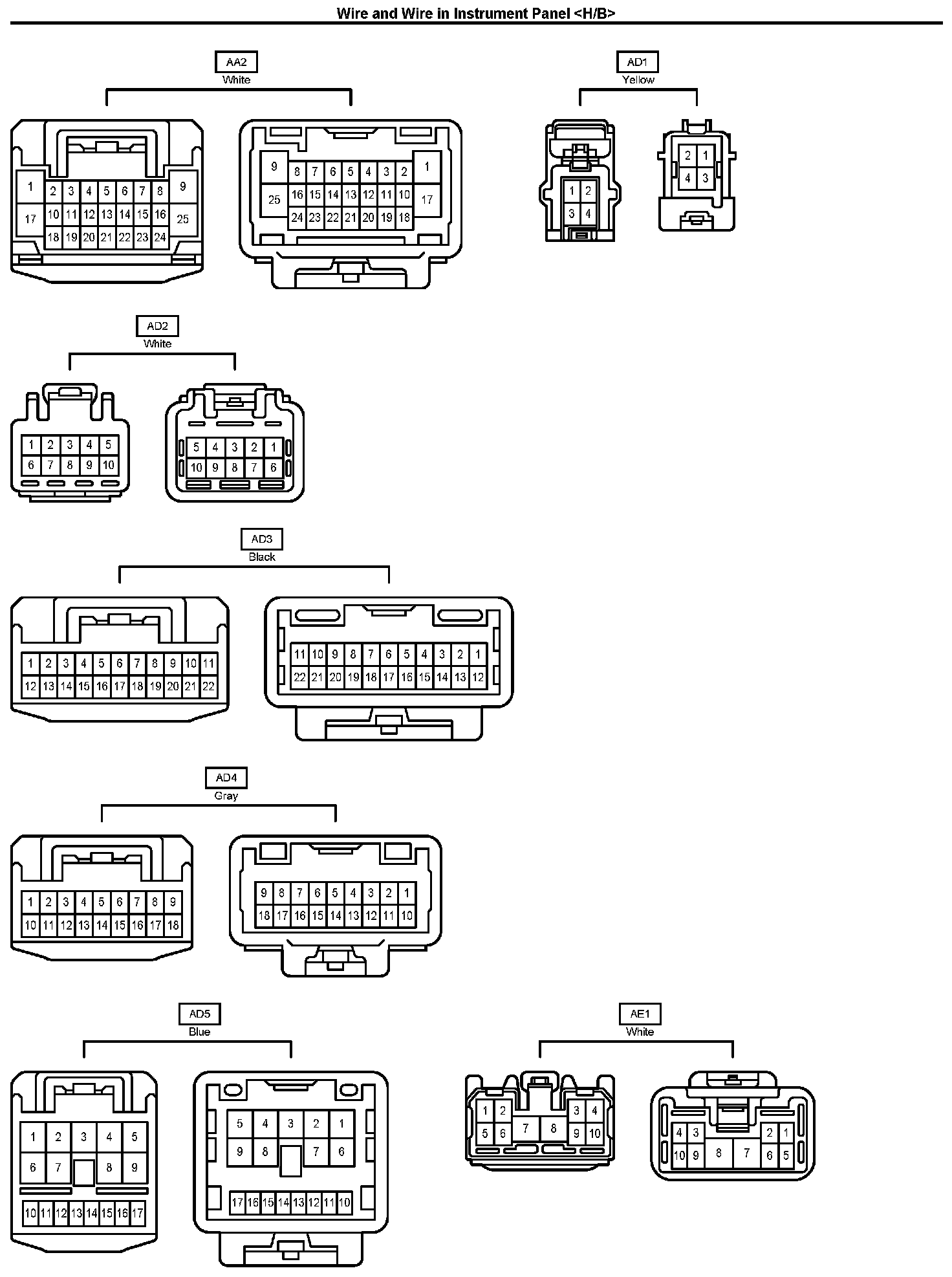

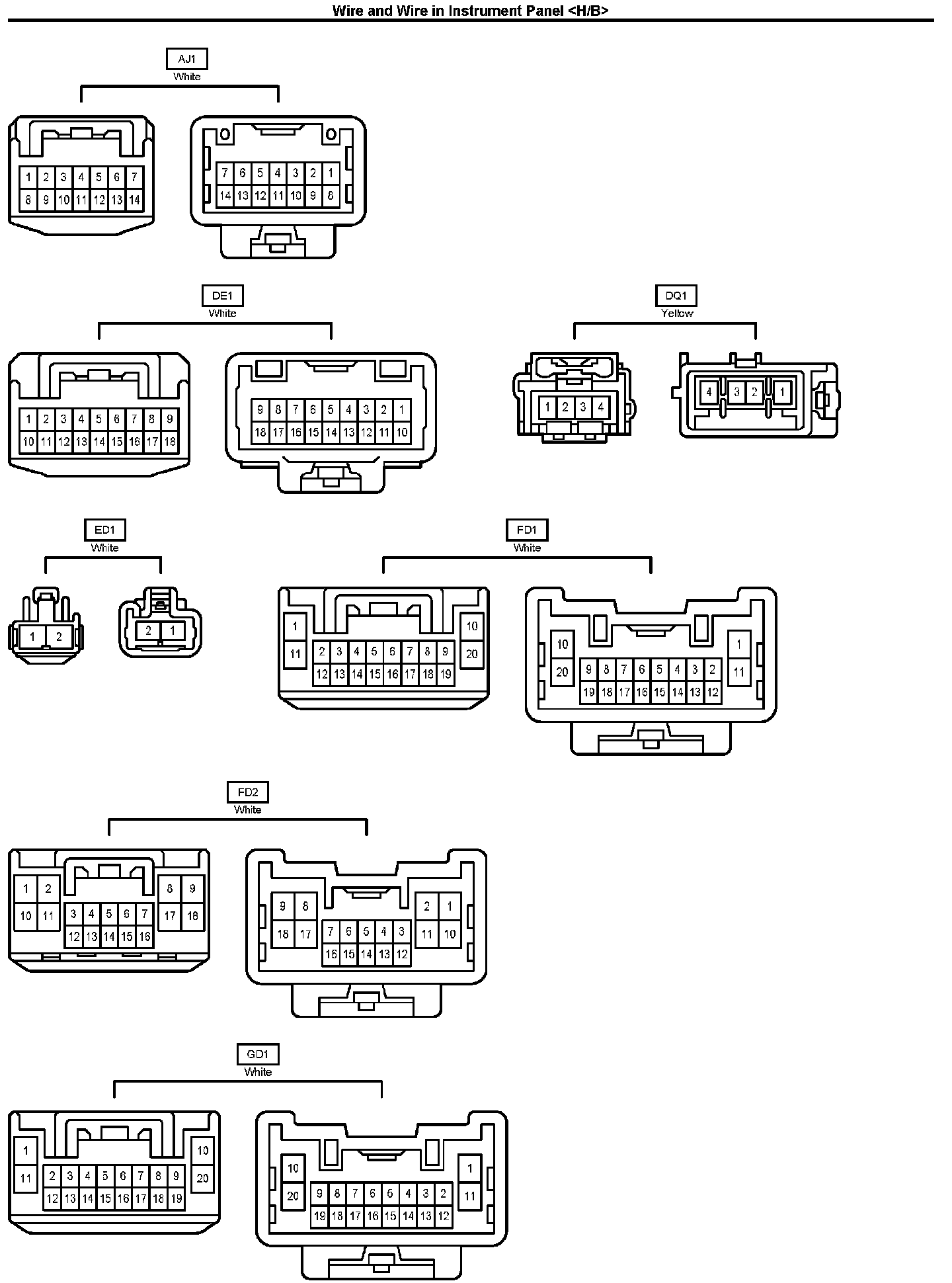

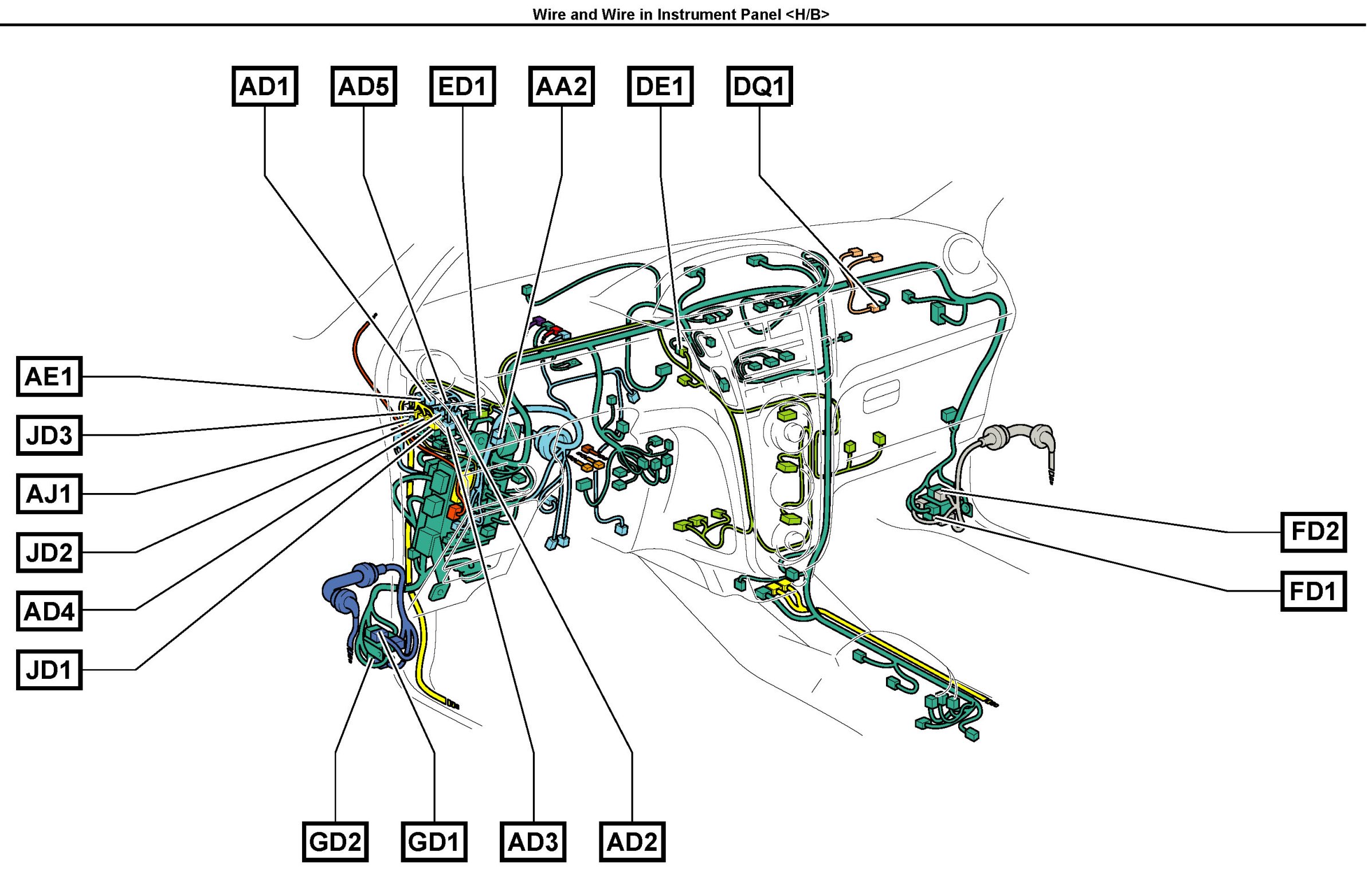

Wire and Wire In Instrument Panel [Hatchback]
Wire and Wire In Instrument Panel [Hatchback]
AA2-JD3:
AA2-AE1:
AJ1-GD1:
GD2-JD3:
