Reassembly

AXLE: FRONT AXLE HUB: REASSEMBLY

1. INSTALL FRONT AXLE HUB BEARING

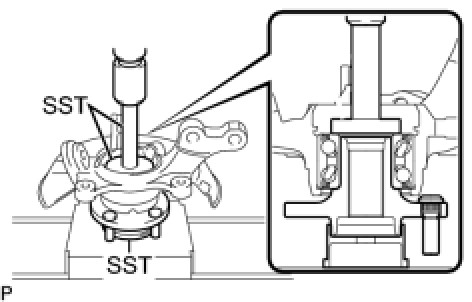

(a) Using SST and a press, insert a new hub bearing, with its magnetic rotor side facing the inside of the vehicle, until it reaches the end of the steering knuckle.

SST : 09950-60020

09951-00710

SST : 09950-70010

09951-07100

NOTICE:
* Do not remove the inner race because the hub bearing is built into the oil seal.
* Do not use bearings that have been removed.
* Do not wipe off any grease that has been applied to new bearings.
* Do not bring magnets close to the magnetic rotor surface of the bearing.
* Keep the magnetic rotor surface of the bearing free of foreign matter.
2. INSTALL FRONT DISC BRAKE DUST COVER

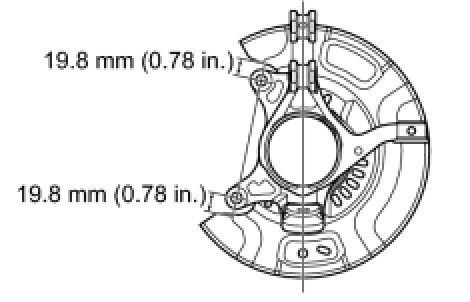

(a) Provisionally install a new disc brake dust cover, as shown in the illustration.

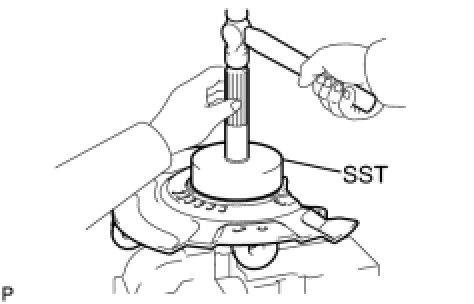

(b) Using SST and a hammer, install the disc brake dust cover.





SST : 09223-56010

NOTICE:
* Uniformly press in the disc brake dust cover while sliding SST slightly.
* Surely press in the disc brake dust cover until the pressing-in base.

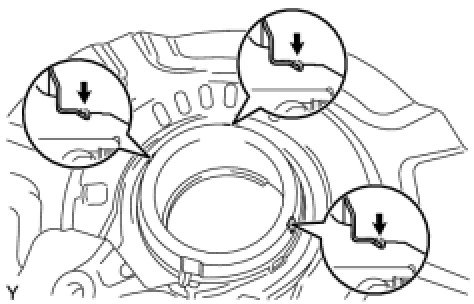

(c) Using a chisel, fix the 3 points on the circumference.





NOTICE:
Securely fold each end into the engagement grooves.

3. INSTALL FRONT AXLE HUB SUB-ASSEMBLY

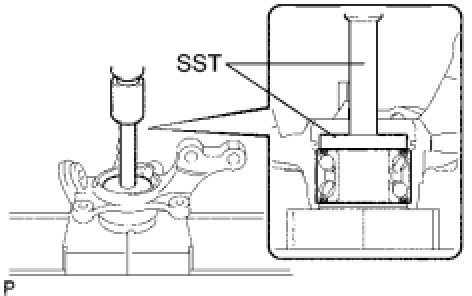

(a) Using SST and a press, press the axle hub into the steering knuckle.

SST : 09608-32010

SST : 09950-60010

09951-00500

SST : 09950-70010

09951-07100

4. INSTALL FRONT AXLE HUB HOLE SNAP RING

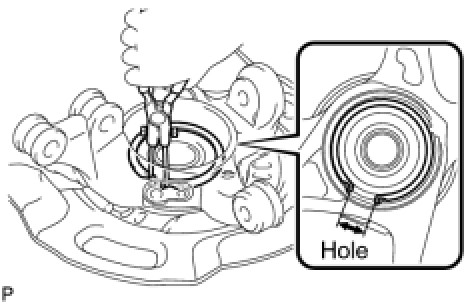

(a) Using snap ring pliers, install a new hole snap ring, as shown in the illustration.

NOTICE:
* Do not overlap the end of the snap ring and the installation hole in the speed sensor on the knuckle side.
* Do not damage the magnetic rotor surface of the bearing when installing the snap ring.
