Disassembly

AXLE: FRONT AXLE HUB: DISASSEMBLY

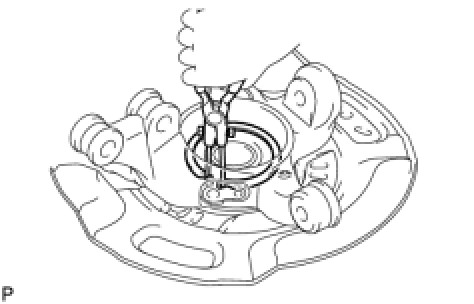

1. REMOVE FRONT AXLE HUB HOLE SNAP RING





(a) Using snap ring pliers, remove the hole snap ring.

NOTICE:
When removing the hole snap ring, do not damage the magnetic rotor surface.

2. REMOVE FRONT AXLE HUB SUB-ASSEMBLY





(a) Fix the steering knuckle in a vise between aluminum plates.

NOTICE:
Do not overtighten the vise.

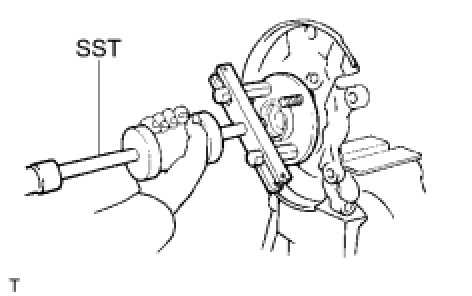

(b) Using SST, remove the axle hub.

SST : 09520-00031

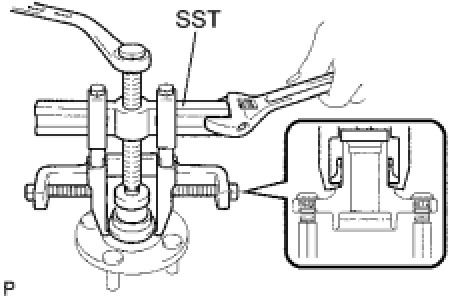

(c) Using SST, remove the hub bearing inner race from the axle hub.





SST : 09950-40011

09951-04020

09952-04010

09953-04020

09954-04010

09955-04011

09957-04010

09958-04011

SST : 09950-60010

09951-00370

3. REMOVE FRONT DISC BRAKE DUST COVER

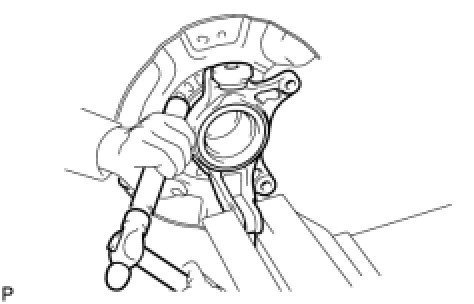

(a) Remove the dust cover by tapping the back side with a brass bar and hammer.

4. REMOVE FRONT AXLE HUB BEARING





(a) Install the removed hub bearing inner race onto the outer side of the hub bearing.

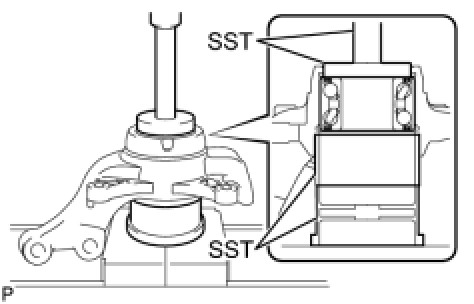

(b) Using SST and a press, remove the hub bearing from the steering knuckle.

SST : 09223-15020

SST : 09387-00041

09387-02010

SST : 09950-60010

09951-00630

SST : 09950-70010

09951-07100
