TIRE AND WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

1. INSPECT TIRES

(a) Check the tires for wear and proper inflation pressure.

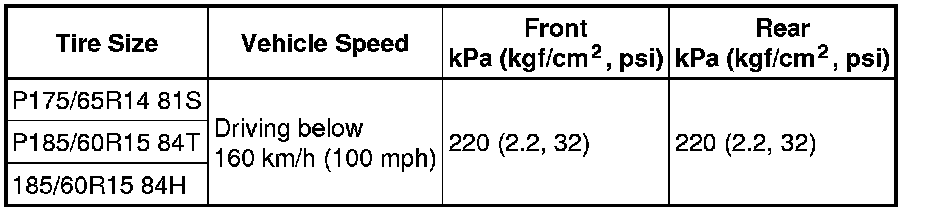

Cold Tire Inflation Pressure:

for Hatchback:

for Sedan:

(b) Using a dial indicator, check the tire runout.





Tire Runout:





2. ROTATE TIRES

HINT

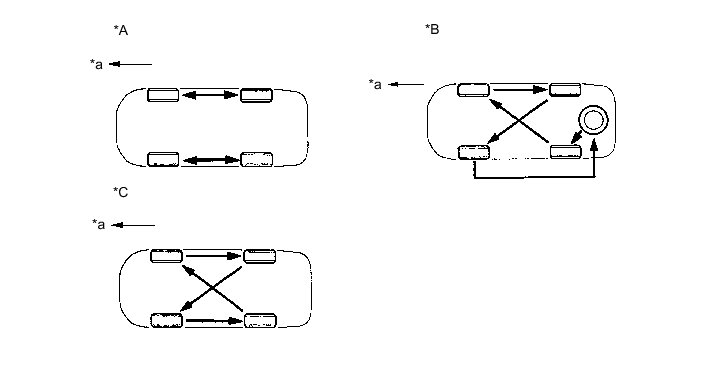

Rotate tires as shown in the illustration.

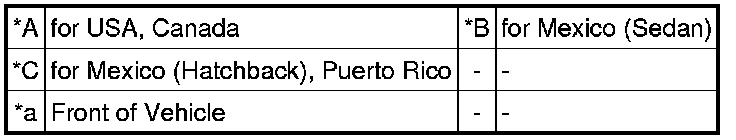

Text in Illustration:

3. INSPECT WHEEL BALANCE

(a) Check and adjust the off-car balance.

(1) Steel wheel





Maximum imbalance after adjustment:

8.0 g (0.0176 lb)

(2) Others (Non-steel wheel)





Maximum imbalance after adjustment:

8.0 g (0.0176 lb)

NOTICE:
* Remove dirt, oil and water from the balance weight surface with cleaning detergent.
* Do not touch the adhesive part of the balance weight.
* Adhere the sticking type balance weight to the flat surface (A) shown in the illustration.

Width (A):

25 mm (0.984 in.)

* Push the balance weight securely with a finger to adhere it to the position.
* Do not reuse the balance weight.
HINT
The inner side balance weight should be installed by clipping it to the rim.

(b) If necessary, check and adjust the on-car balance.

Imbalance after adjustment:

8 g (0.018 lb) or less

4. INSPECT FRONT AXLE HUB BEARING

(a) Inspect the front axle hub bearing Component Tests and General Diagnostics.

5. INSPECT REAR AXLE HUB BEARING

(a) Inspect the rear axle hub bearing Component Tests and General Diagnostics.
