Locations
>>
Ground Locations
>>

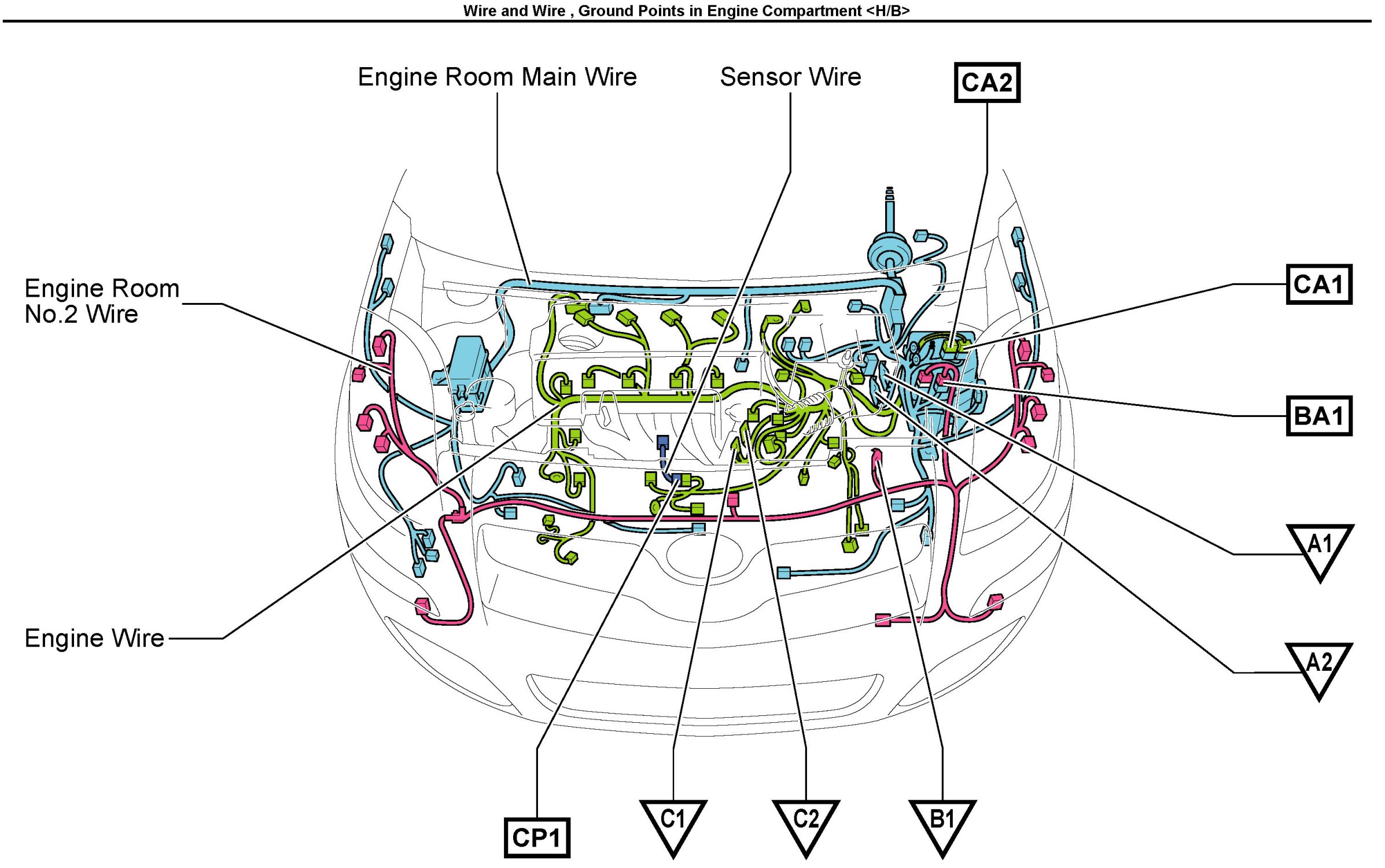

Wire and Wire, Ground Points In Engine Compartment [Hatchback]
Wire and Wire, Ground Points In Engine Compartment [Hatchback]

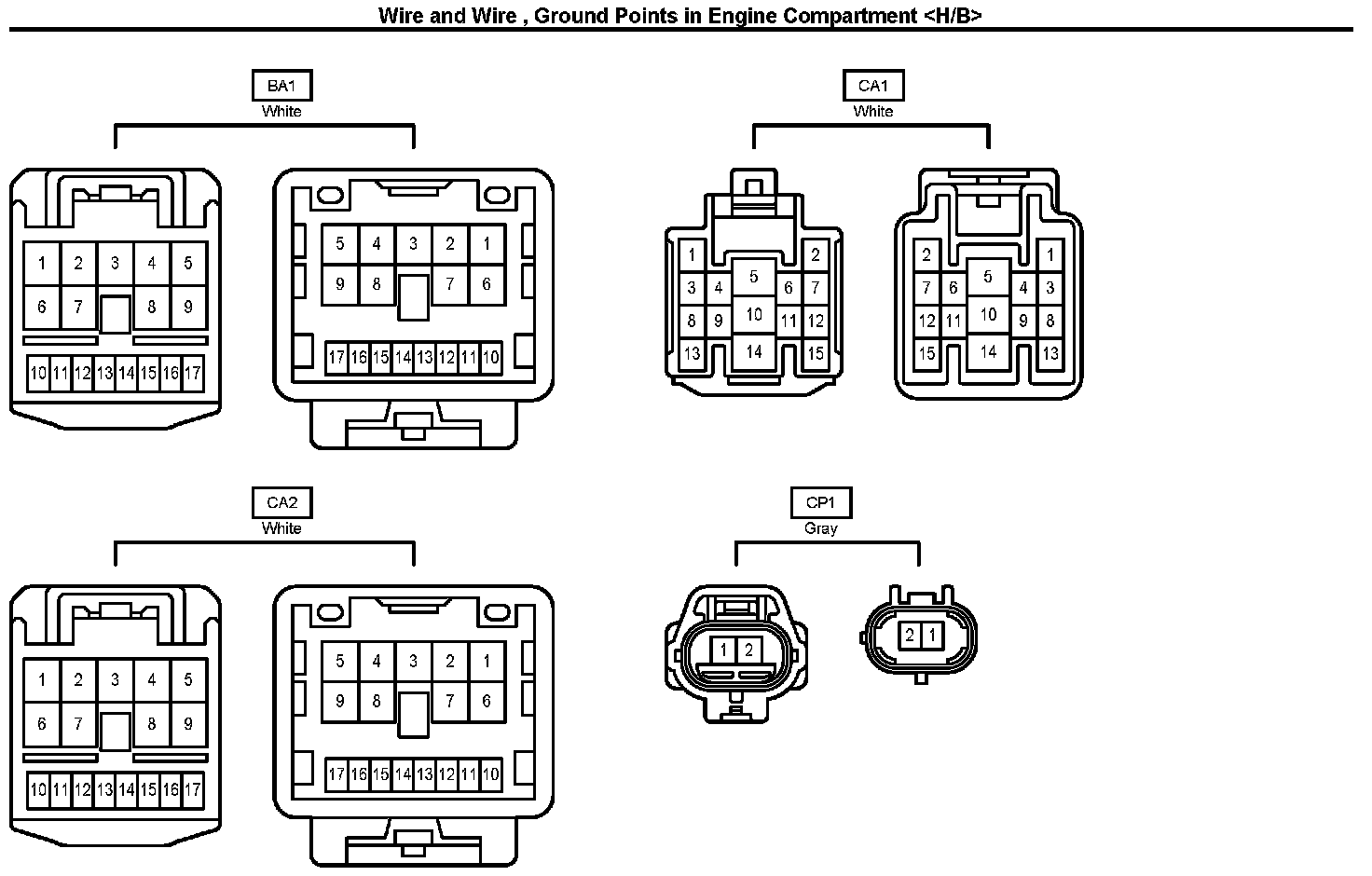

A1-C2, BA1-CP1:
BA1-CP1:
