Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY (for Hatchback): REMOVAL

HINT
* Use the same procedure for both the RH and LH sides.
* The procedure described below is for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

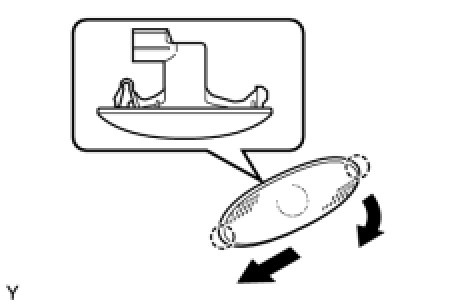

(a) Disengage the 2 claws and disconnect the side turn signal light.

(b) Disconnect the connector and remove the side turn signal light.
