Installation

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY (for Hatchback): INSTALLATION

1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY





(a) Connect the connector.

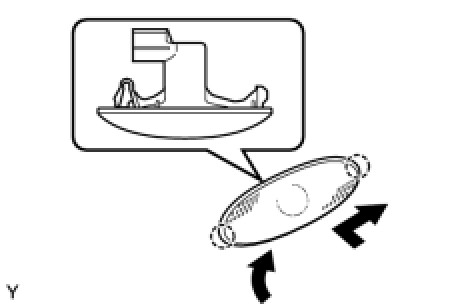

(b) Engage the 2 claws and install the side turn signal light assembly, as shown in the illustration.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
