Symptom Related Diagnostic Procedures





LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
Use the table below to help determine the causes of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

HEADLIGHT AND TAILLIGHT SYSTEM::





FOG LIGHT SYSTEM::





BACK-UP LIGHT SYSTEM::

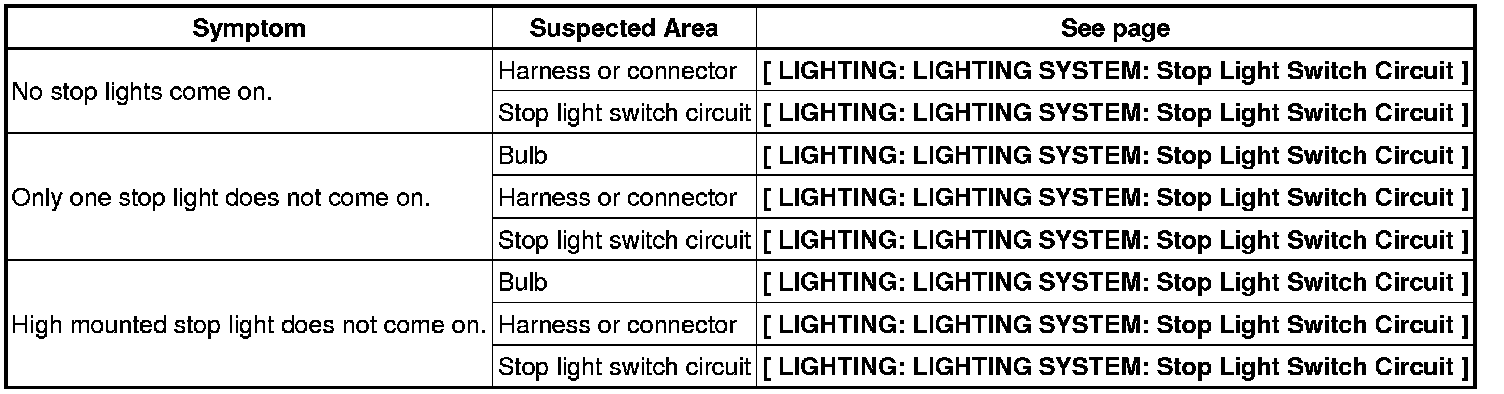

STOP LIGHT SYSTEM::

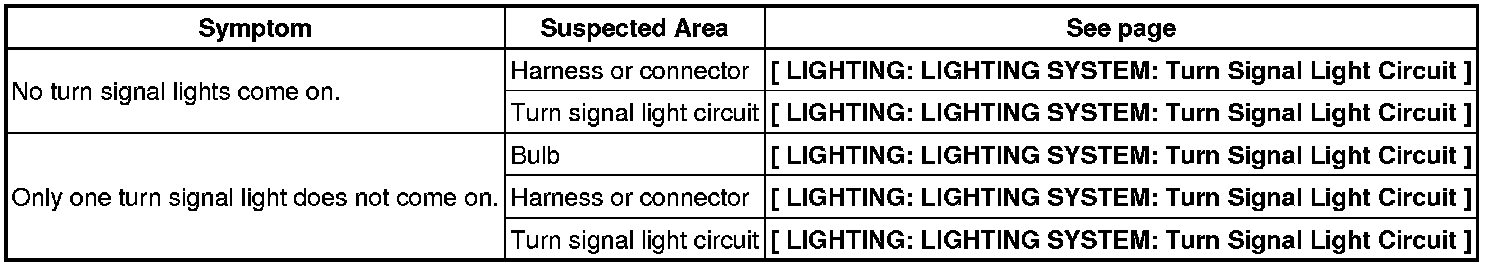

TURN SIGNAL LIGHT SYSTEM::

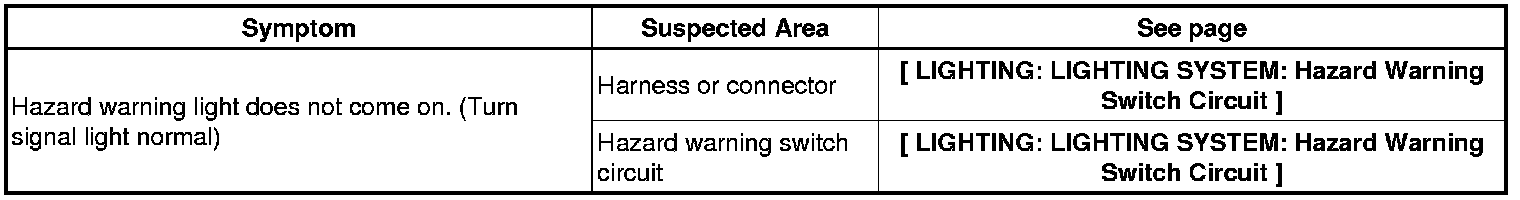

HAZARD WARNING LIGHT SYSTEM::





LICENSE PLATE LIGHT SYSTEM::

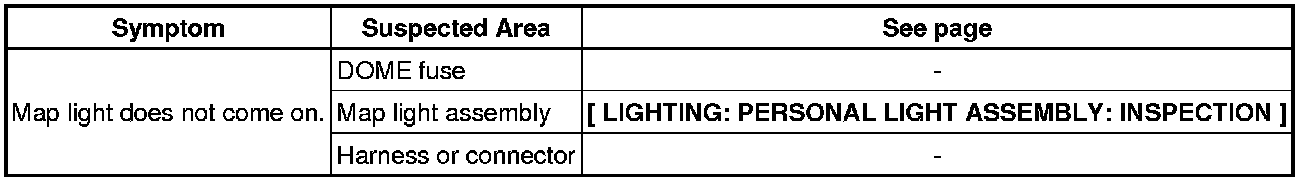

MAP LIGHT SYSTEM::





ROOM LIGHT SYSTEM::
