Light Control Switch Circuit
LIGHTING: LIGHTING SYSTEM: Light Control Switch Circuit
- Light Control Switch Circuit
DESCRIPTION
This circuit detects the state of the headlight dimmer switch.

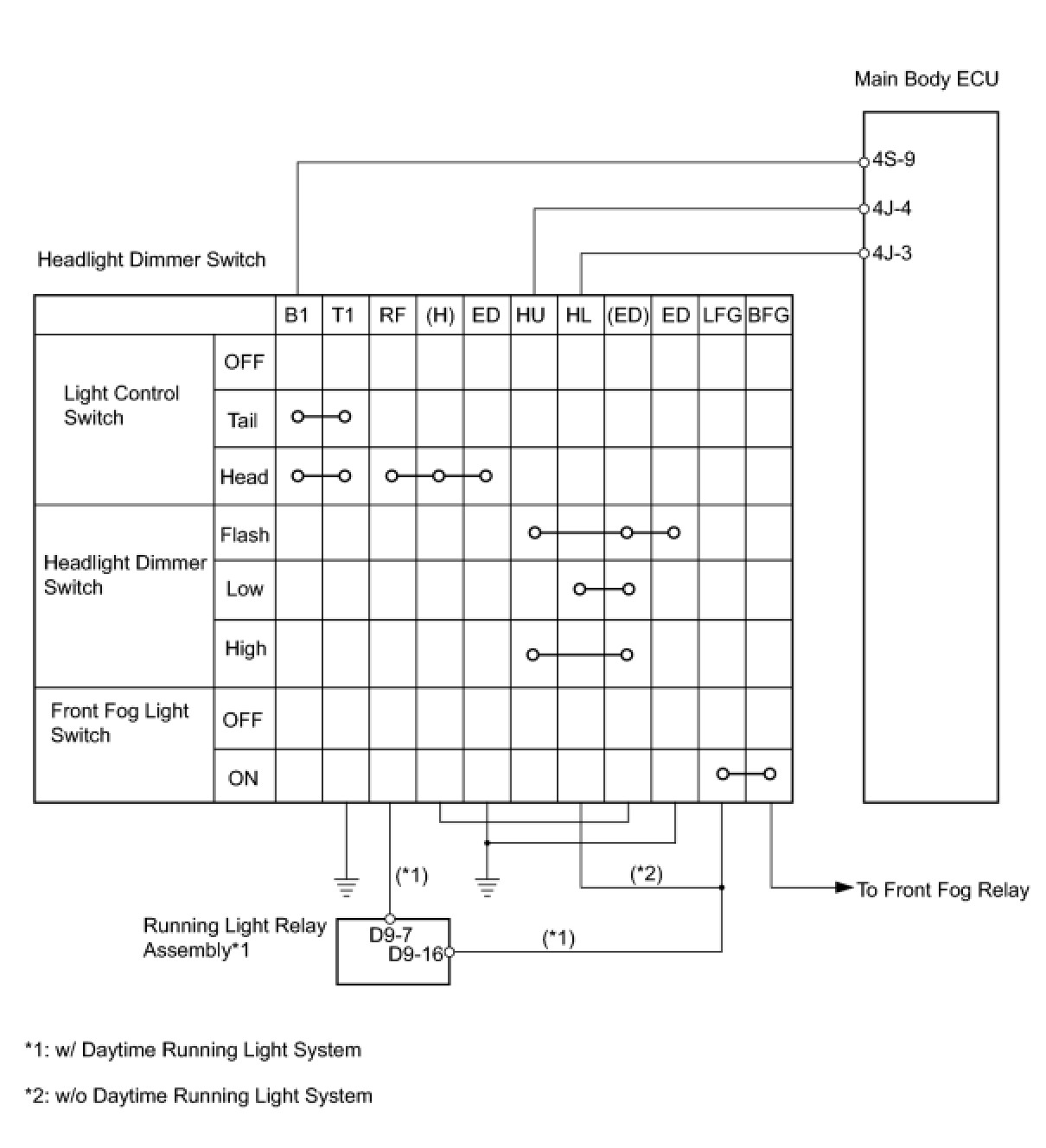

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
1. CHECK HARNESS AND CONNECTOR (HEADLIGHT DIMMER SWITCH - MAIN BODY ECU, RUNNING LIGHT RELAY)

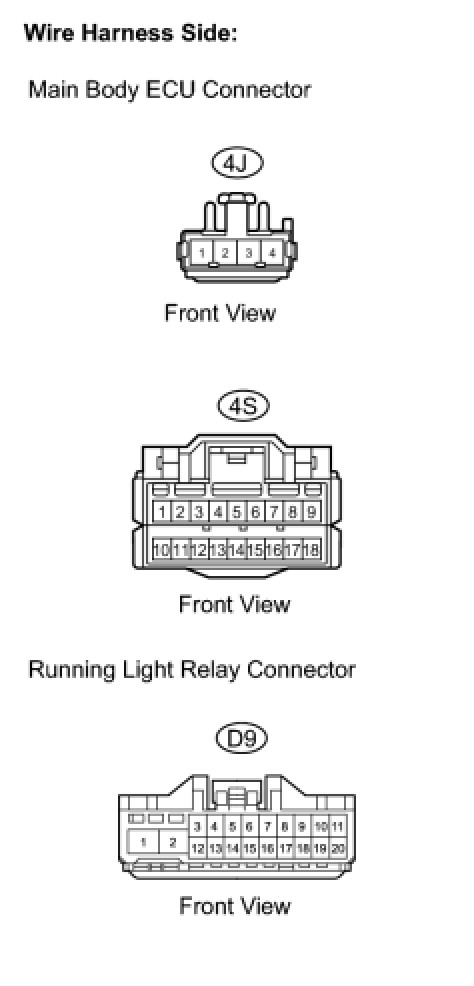

(a) Disconnect the 4J and 4S main body ECU connectors.
(b) Disconnect the D9 running light relay assembly connector.*1
HINT
*1: w/ Daytime running light system
(c) Measure the resistance.

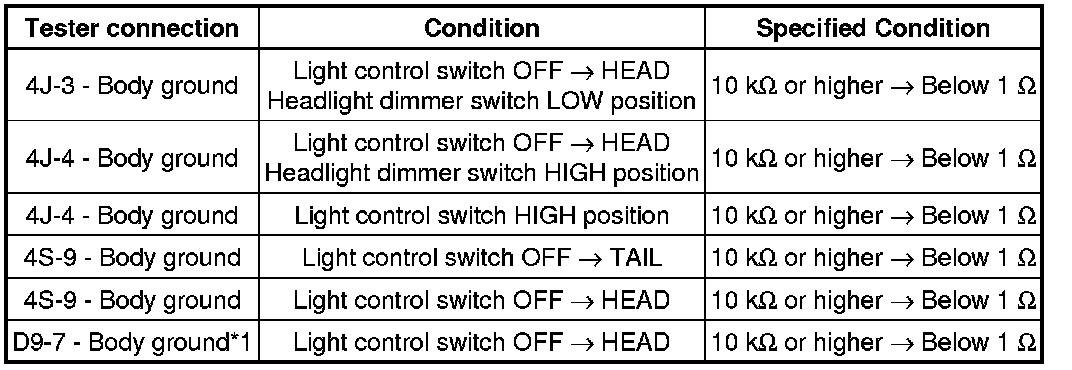

Standard resistance:
HINT
*1: w/ Daytime running light system
(d) Reconnect the main body ECU connectors.
(e) Reconnect the running light relay assembly connector*.
HINT
*: w/ Daytime running light system
NG -- INSPECT HEADLIGHT DIMMER SWITCH
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

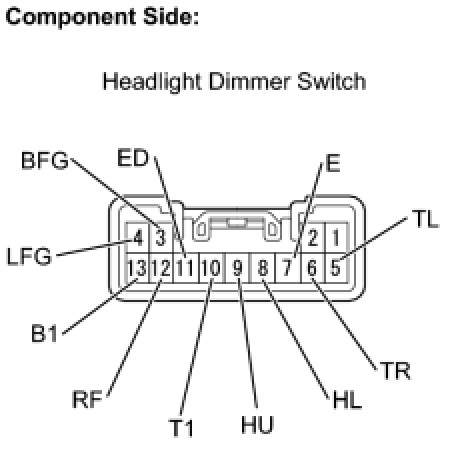

2. INSPECT HEADLIGHT DIMMER SWITCH
(a) Inspect the light control switch.
(1) Measure the resistance.

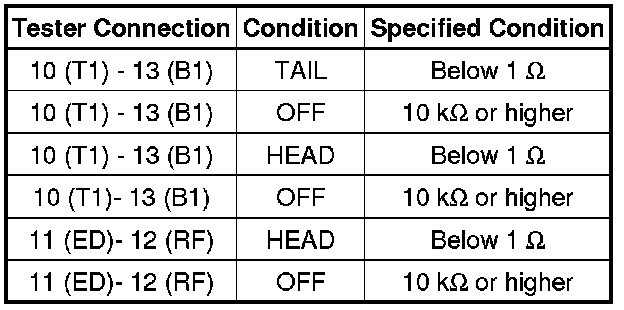

Standard resistance:
(b) Inspect the headlight dimmer switch.
(1) Measure the resistance.

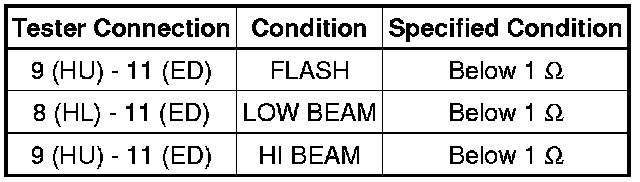

Standard resistance:
(c) Inspect the turn signal switch.
(1) Measure the resistance.

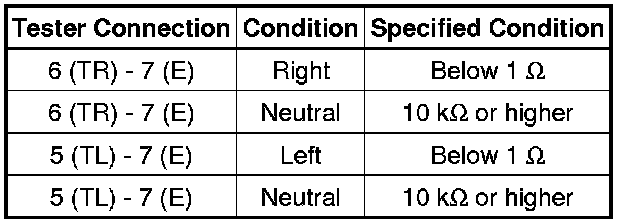

Standard resistance:
(d) Inspect the front fog light switch.
(1) Measure the resistance.

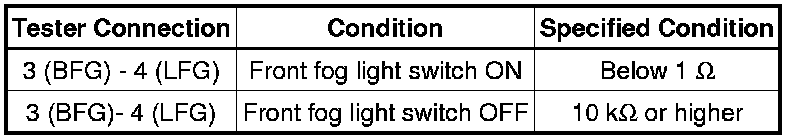

Standard resistance:
NG -- REPLACE HEADLIGHT DIMMER SWITCH
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR
