Installation

LIGHTING: REAR DOOR COURTESY SWITCH: INSTALLATION

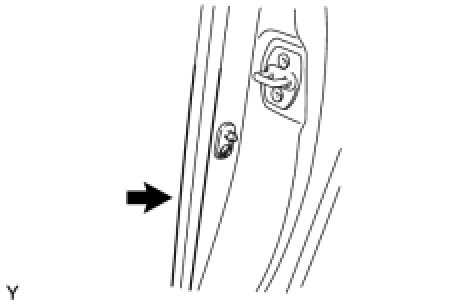

1. INSTALL REAR DOOR COURTESY SWITCH

(a) Using "Torx" socket wrench T30, install the rear door courtesy switch with the screw.





Torque : 3.7 Nm (38 kgf-cm, 33 in-lbf)

2. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

(a) Install the rear door opening trim weatherstrip.





3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
