Component Tests and General Diagnostics

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSPECTION

1. INSPECT LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan)

(a) Check the light operation.

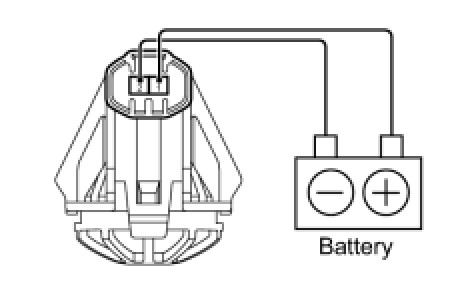

(1) Connect the positive (+) battery lead to terminal 1 and the negative (-) battery lead to terminal 2, then check that the light illuminates.

Standard:

Light illuminates.

(1) If the light does not illuminate, replace the bulb.

2. INSPECT LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback)

(a) Check the light operation.

(1) Connect the positive (+) battery lead to terminal 2 and the negative (-) battery lead to terminal 1, then check that the light illuminates.

Standard:

Light illuminates.

(1) If the light does not illuminate, replace the bulb.
