Removal

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan)

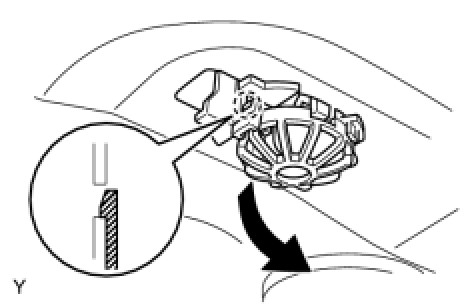

(a) Disengage the claw and pull up the luggage compartment room light in the direction indicated by the arrow.





(b) Disengage the 2 claws and remove the luggage compartment room light.





(c) Disconnect the connector.

3. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT BULB (for Sedan)

(a) Remove the luggage compartment room light bulb.





4. REMOVE LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback)

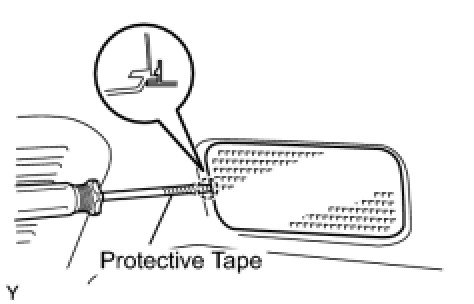

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the luggage compartment room light.

(b) Disconnect the connector.

5. REMOVE ROOM LIGHT BULB NO.2 (for Hatchback)





(a) Remove room light bulb No. 2.
