Installation

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSTALLATION

1. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT BULB (for Sedan)

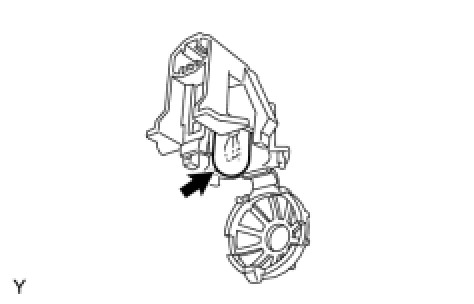

(a) Install the luggage compartment room light bulb.





2. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT (for Sedan)

(a) Connect the connector.

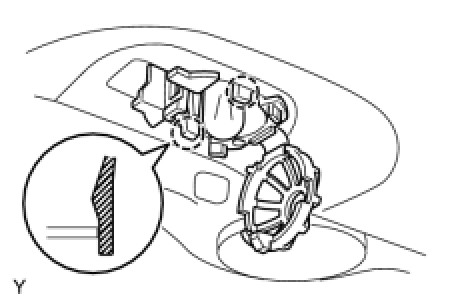

(b) Engage the 2 claws and install the luggage compartment room light.

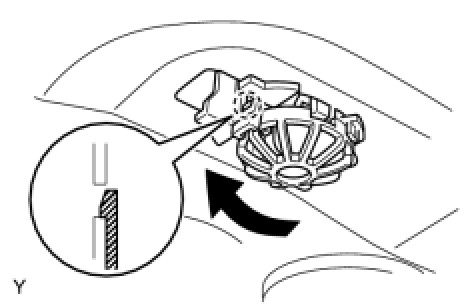

(c) Tilt the luggage compartment room light in the direction shown in the illustration and lock it.





3. INSTALL ROOM LIGHT BULB NO.2 (for Hatchback)

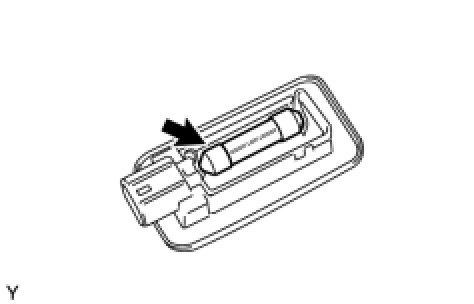

(a) Install room light bulb No. 2.

4. INSTALL LUGGAGE COMPARTMENT ROOM LIGHT (for Hatchback)





(a) Connect the connector.

(b) Engage the claw and install the luggage compartment room light.

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
