Removal

LIGHTING: ROOM LIGHT ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE ROOM LIGHT ASSEMBLY

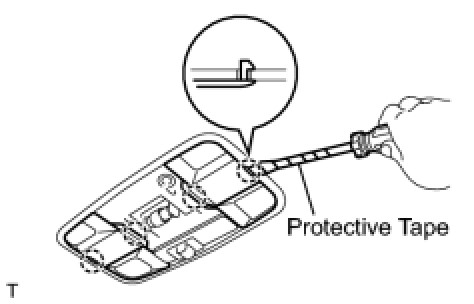

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light lens.

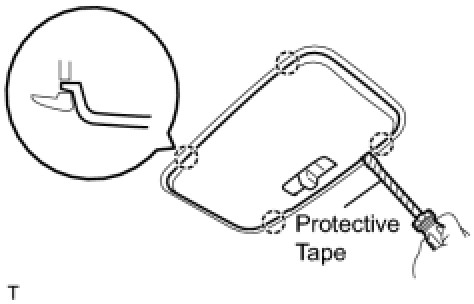

(b) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the 2 covers.

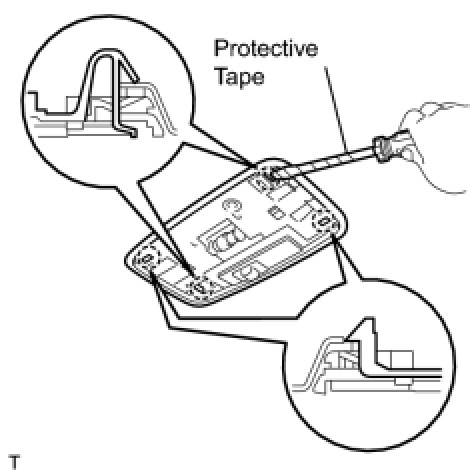

(c) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws.

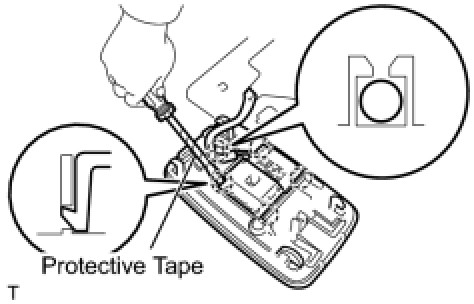

(d) Disengage the roof wire from the claw of the room light.





(e) Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light switch base.

(f) Remove room light bulb No. 1.
