Installation

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY (for Hatchback): INSTALLATION

1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY

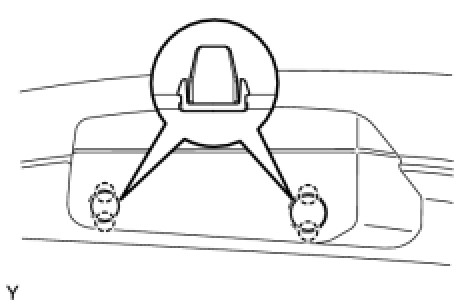

(a) Engage the 2 claws and install the high mounted stop light.

2. INSTALL CENTER STOP LIGHT COVER





(a) Connect the connector.

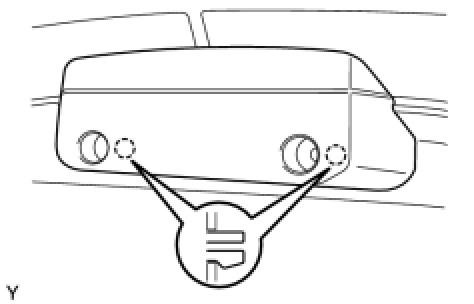

(b) Engage the 2 claws.

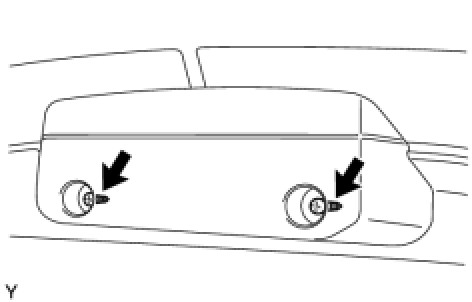

(c) Install the center stop light cover with the 2 screws.





NOTICE:
When reusing the center stop light cover, replace the screws with 90159-60303 screws to avoid insecure installation.

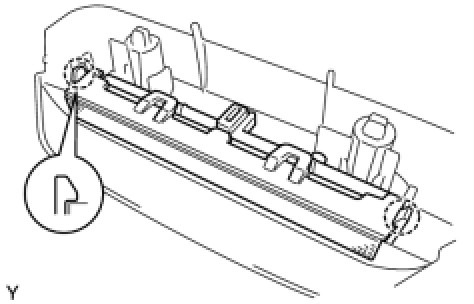

(d) Engage the 4 claws and install the rear light cover.





3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
