Installation

LIGHTING: STOP LIGHT SWITCH (for Hatchback): INSTALLATION

1. INSTALL STOP LIGHT SWITCH

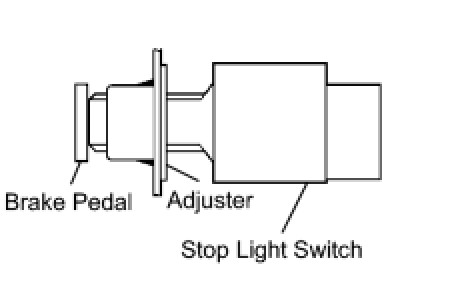

(a) Install the stop light switch into the adjuster until it slightly touches the brake pedal.

NOTICE:
Do not depress the brake pedal.

(1) Make a quarter turn clockwise to install the stop light switch.





NOTICE:
Do not depress the brake pedal.

HINT
The turning torque for installing the stop light switch is as below.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lb for less)

(b) Check the stop light switch clearance.

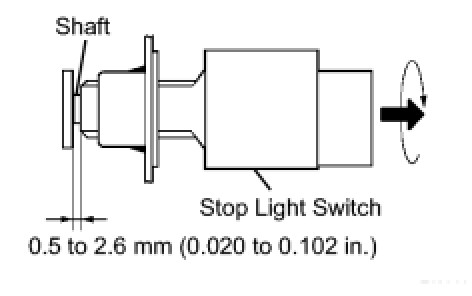

Stop light switch clearance:

0.5 to 2.6 mm (0.020 to 0.102 in.)

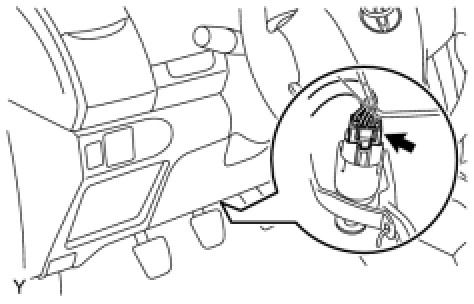

(c) Connect the stop light switch connector to the stop light switch.





2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
