How To Proceed With Troubleshooting

DOOR LOCK: KEY REMINDER WARNING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the key reminder warning system.
* The Techstream should be used in steps 3 and 5.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

HINT
If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

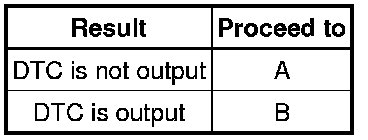

3. INSPECT COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM

(a) Use the Techstream to check if the CAN communication system is functioning normally.

Result::

B -- GO TO CAN COMMUNICATION SYSTEM
A -- Continue to next step.

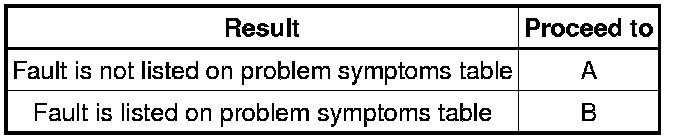

4. PROBLEM SYMPTOMS TABLE

Result::

B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING

(a) Operation Check

Operation Check.

(b) Terminals of ECU

Key Reminder Warning System.

(c) Data list/Active test

Key Reminder Warning System.

NEXT -- Continue to next step.

6. REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
