Installation

AIR CONDITIONING: FRONT BLOWER MOTOR: INSTALLATION

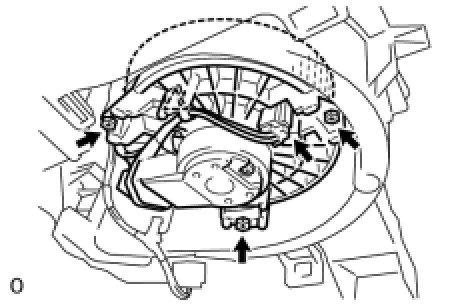

1. INSTALL BLOWER MOTOR





(a) Install the blower motor with the 3 screws.

(b) Connect the connector and the clamp.

2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Hatchback) Installation

3. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Sedan) Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
