Installation

AIR CONDITIONING: FRONT BLOWER RESISTOR: INSTALLATION

1. INSTALL BLOWER RESISTOR

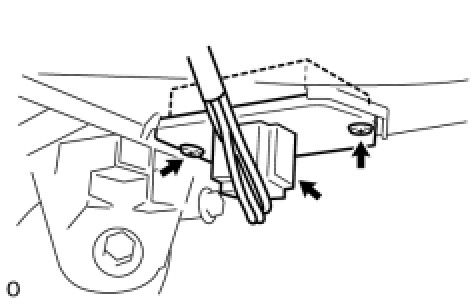

(a) Install the blower resistor with the 2 screws.

(b) Connect the connector.

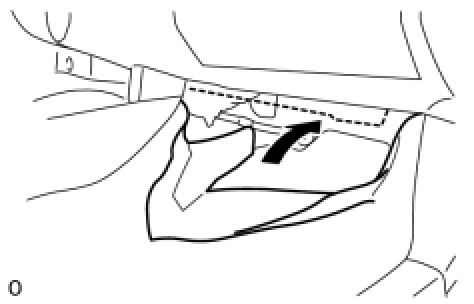

(c) Install the floor carpet.





2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Hatchback) Installation

3. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY RH (for Sedan) Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
