Toyota
>>
2010
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator
>>
Service and Repair
>>
Components
Components

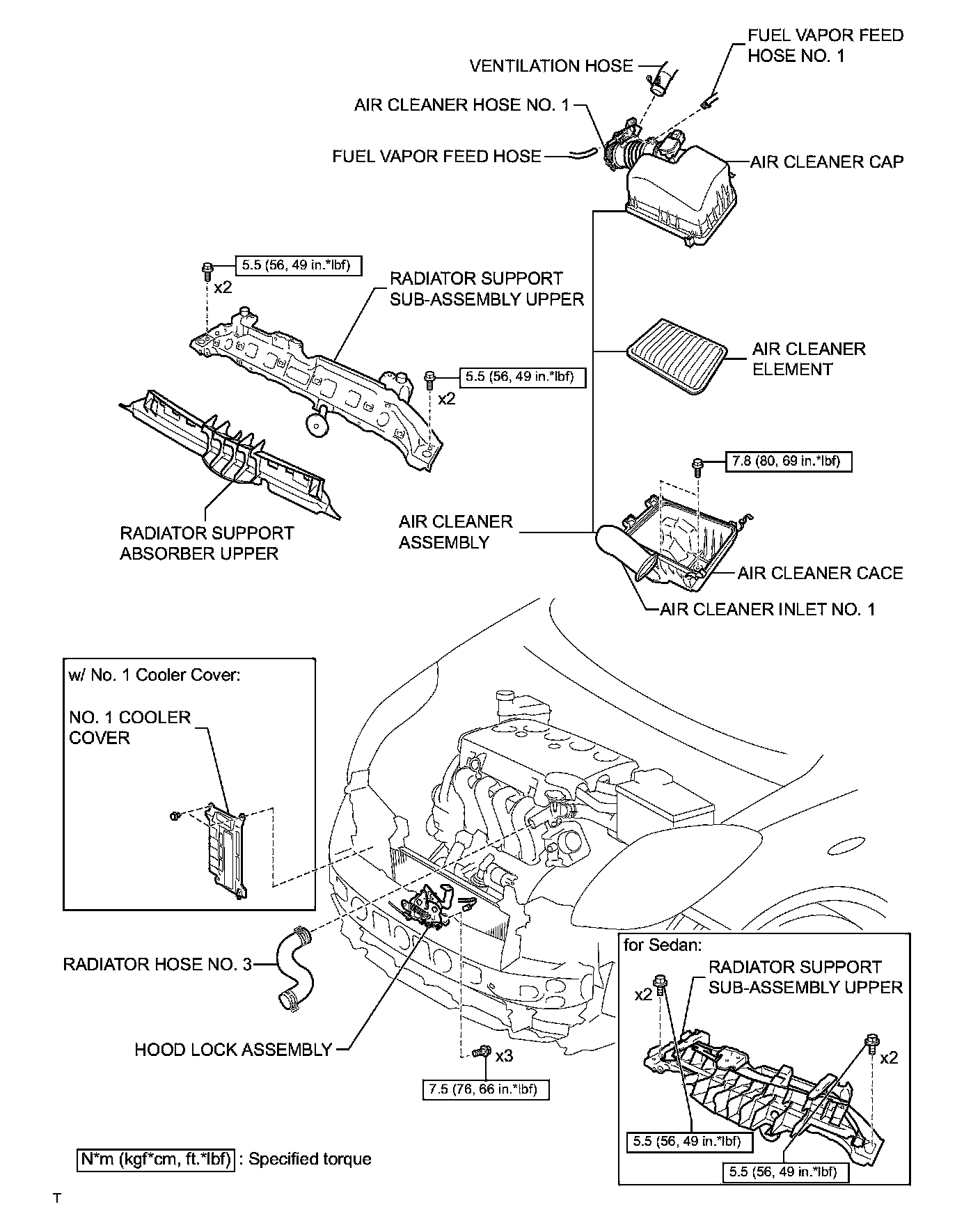

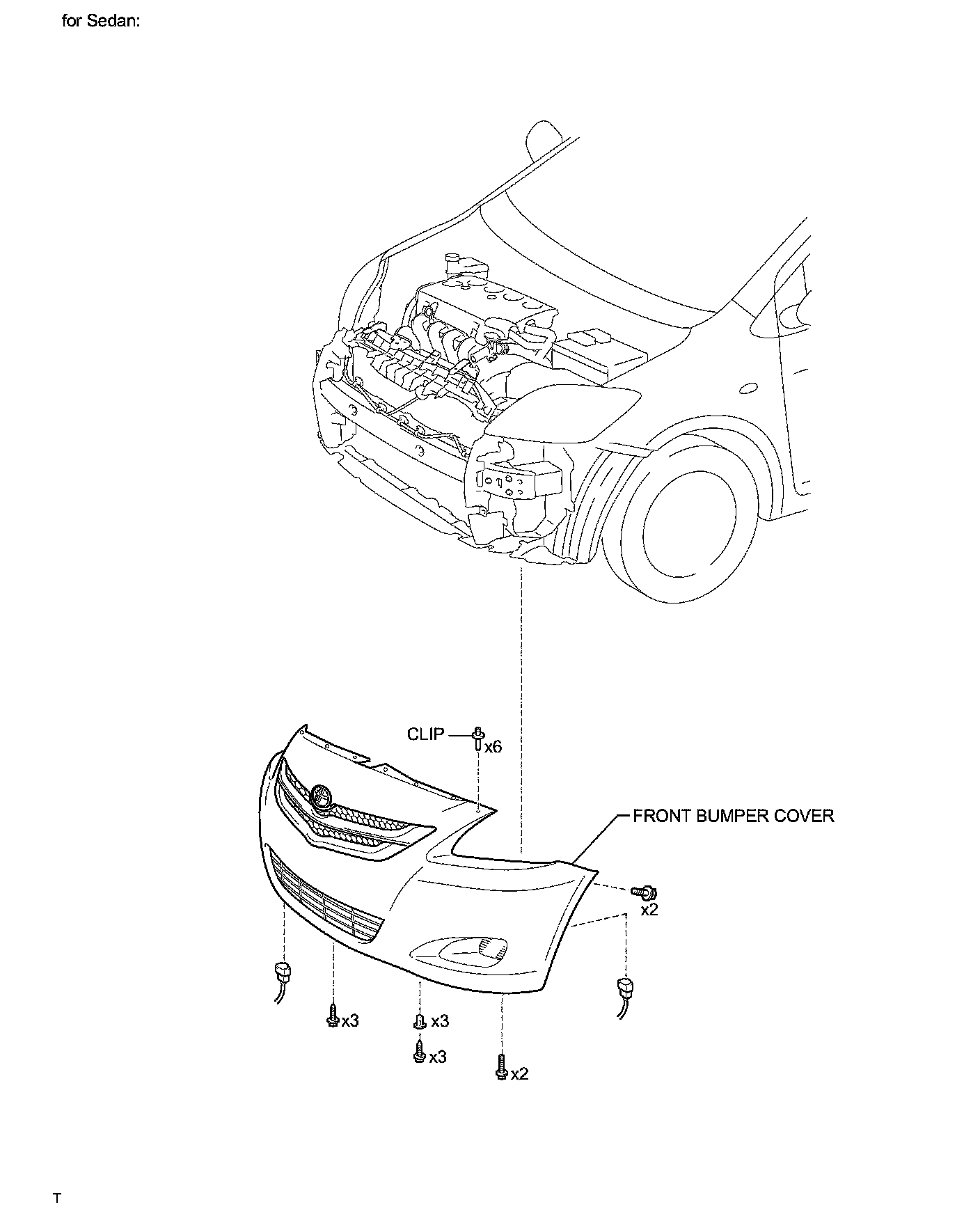

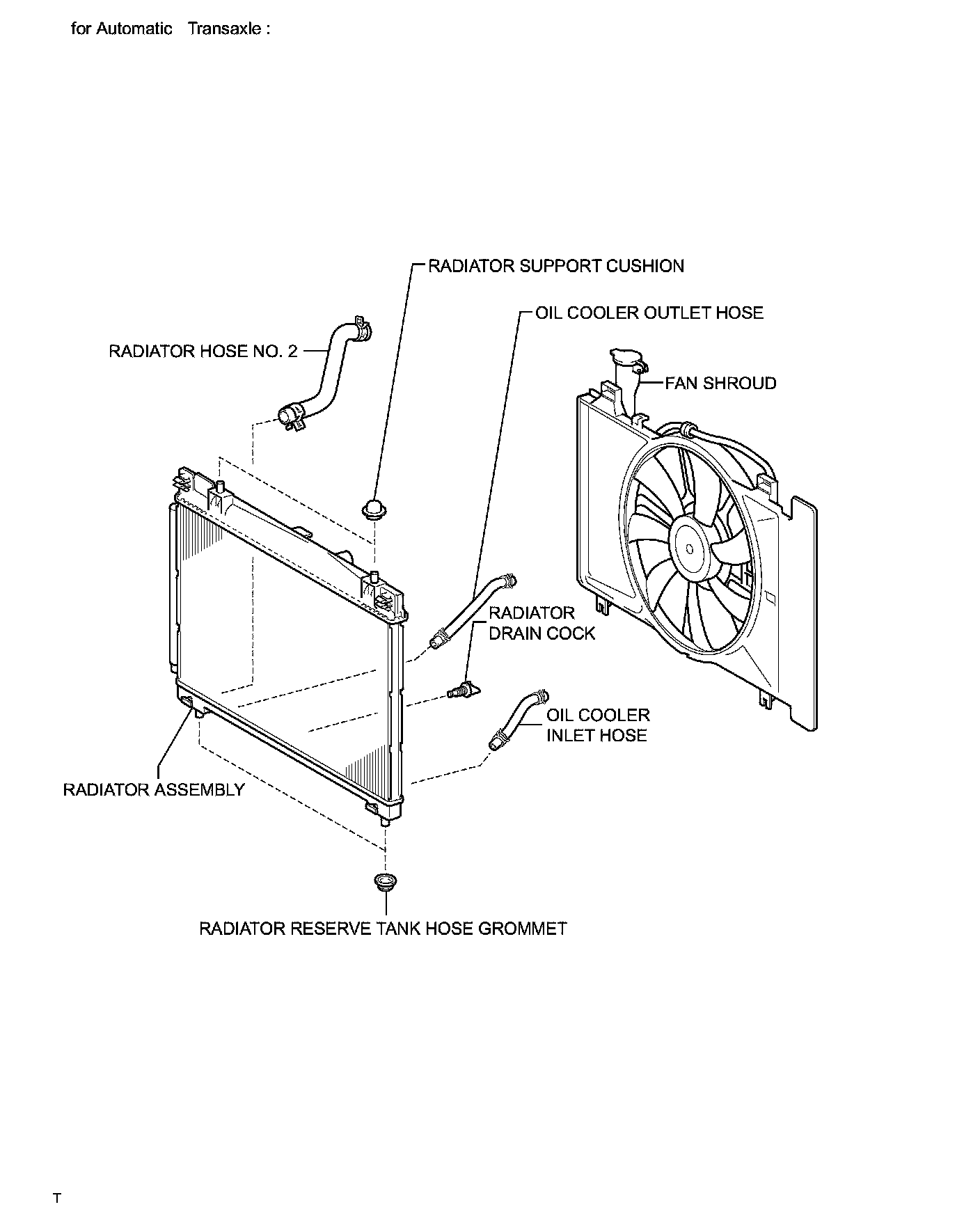

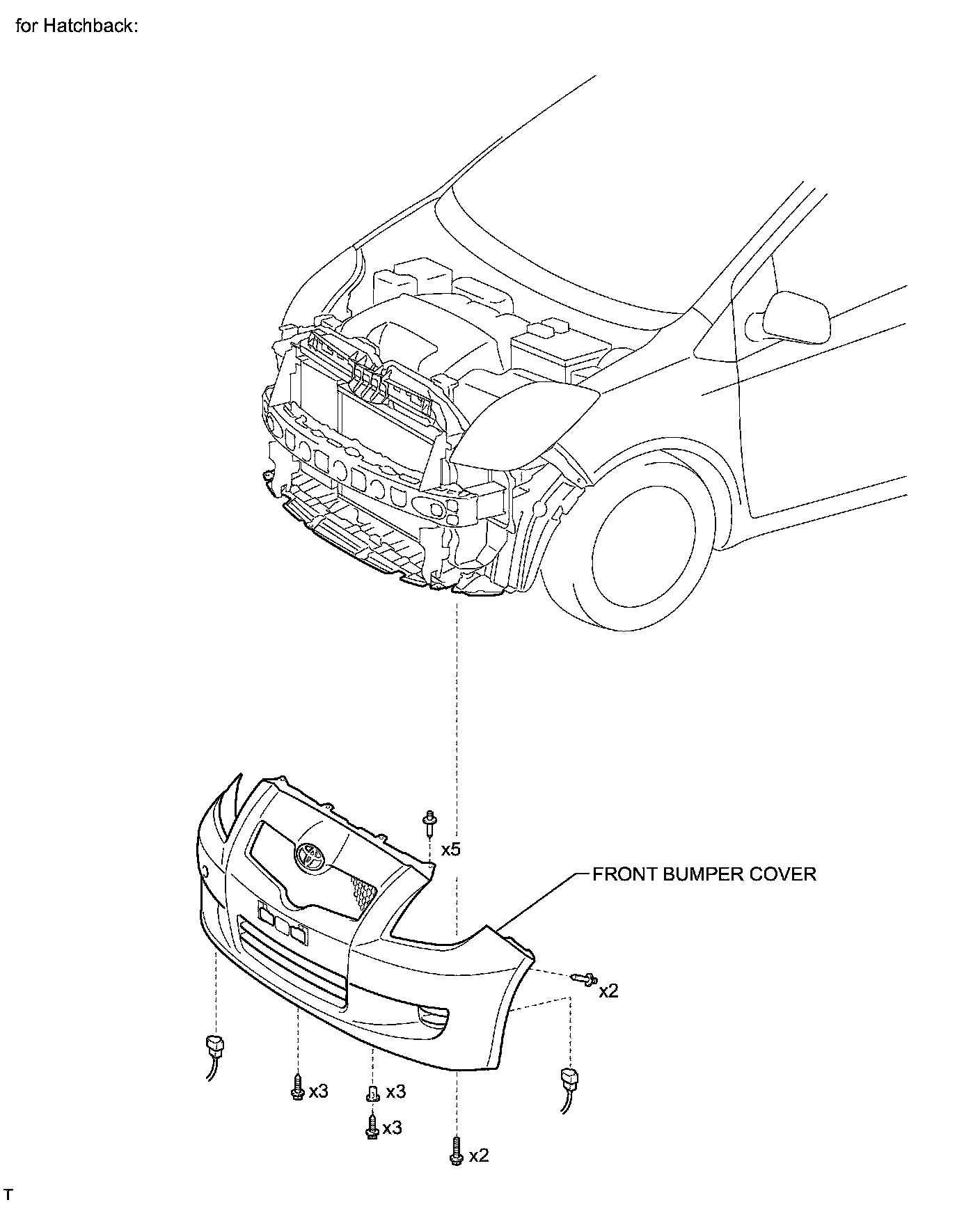

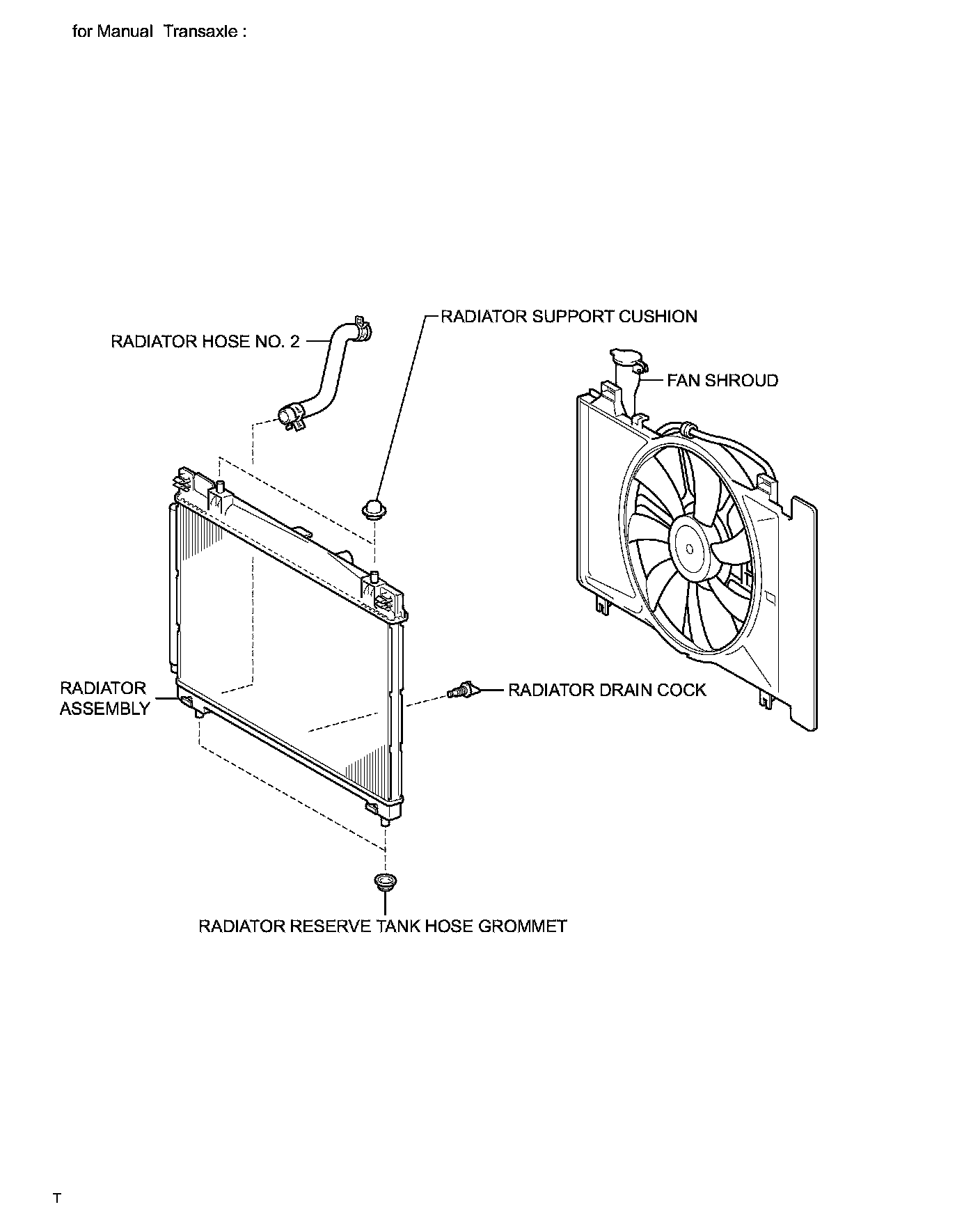

1NZ-FE COOLING: RADIATOR: COMPONENTS
