Position of Parts In Instrument Panel [Hatchback]
Position of Parts In Instrument Panel [Hatchback]

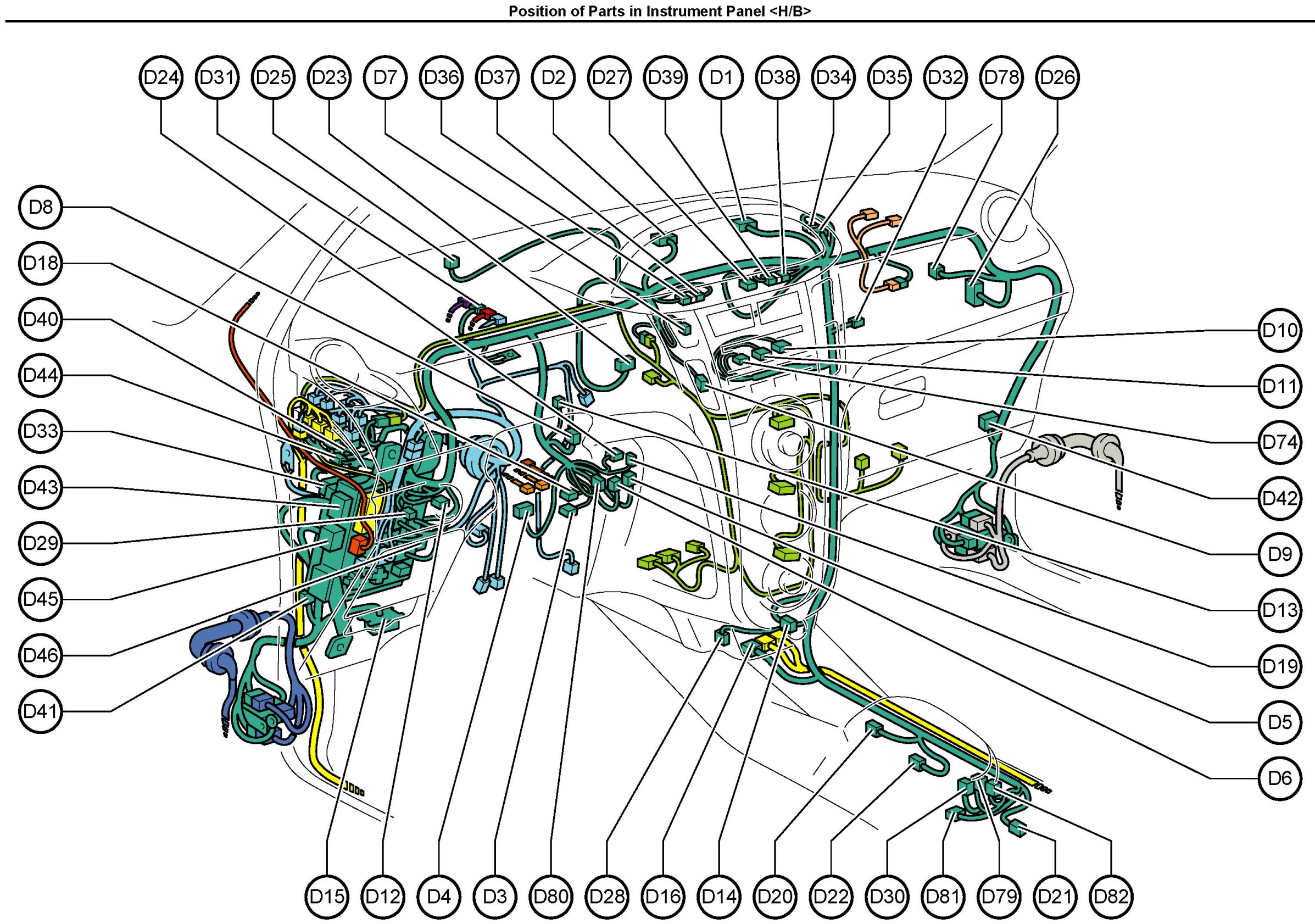

Position Of Parts In Instrument Panel [H/B]:

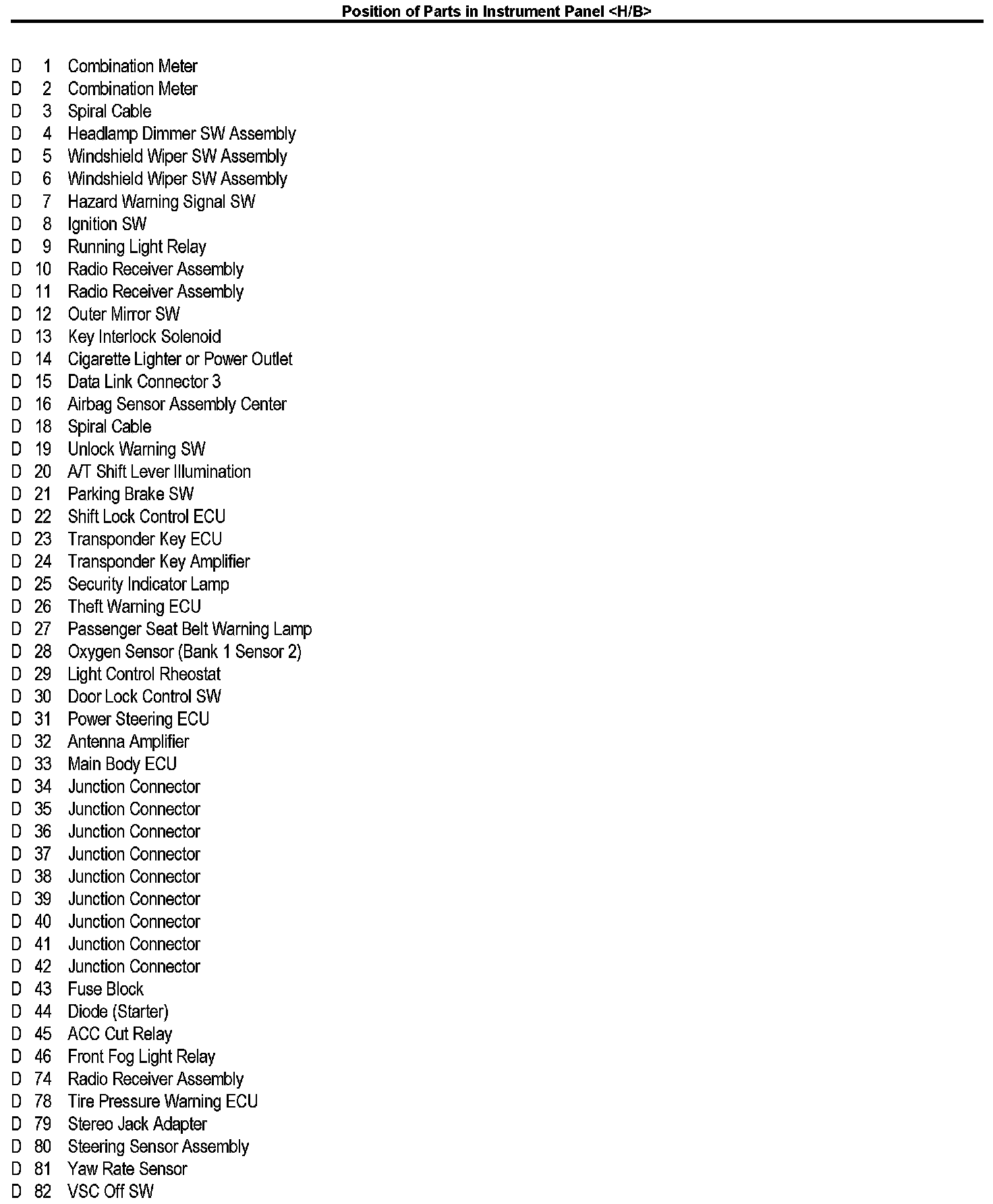

Legend:

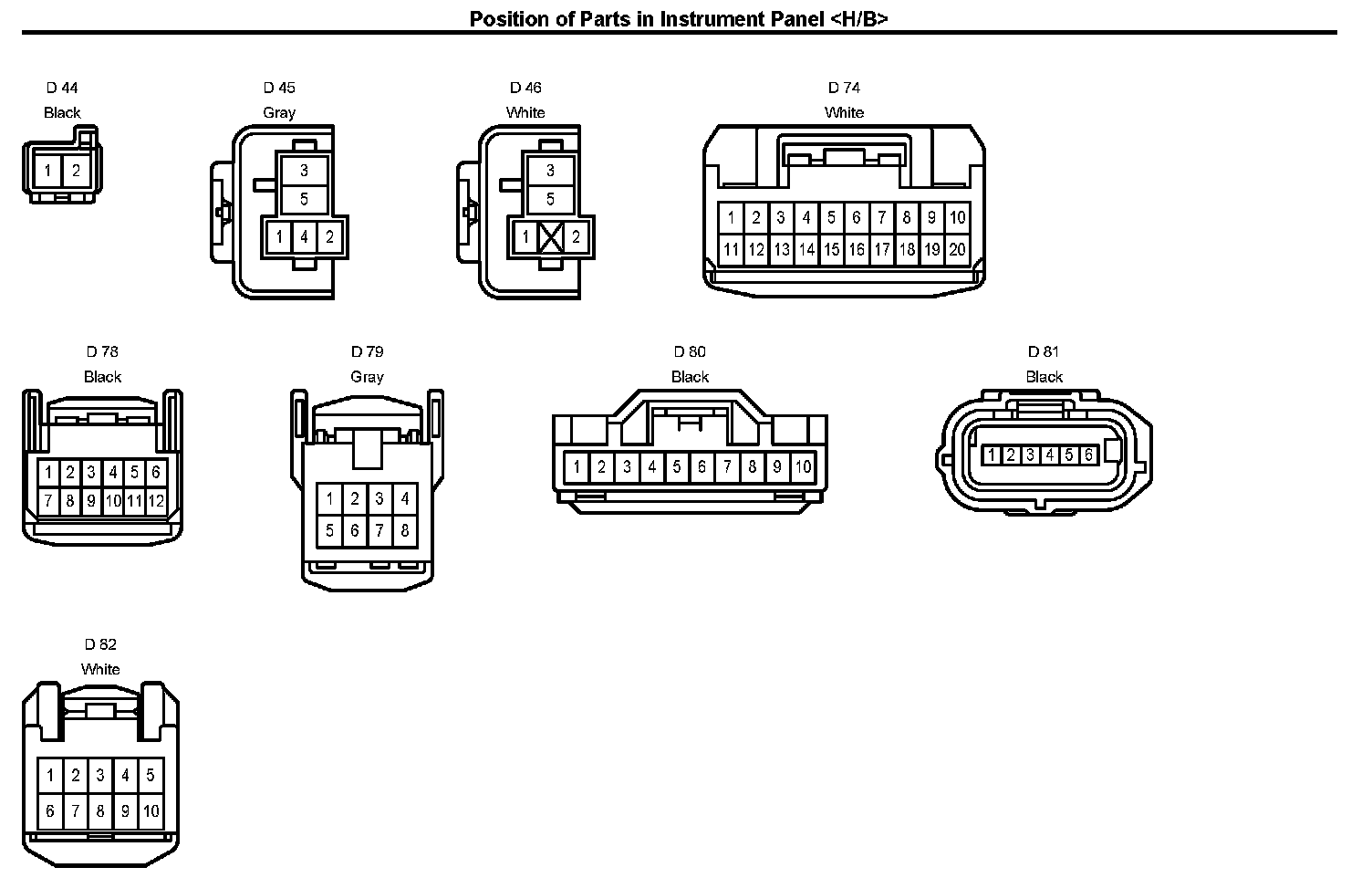

Connector Views:
Position Of Parts In Instrument Panel [H/B]:

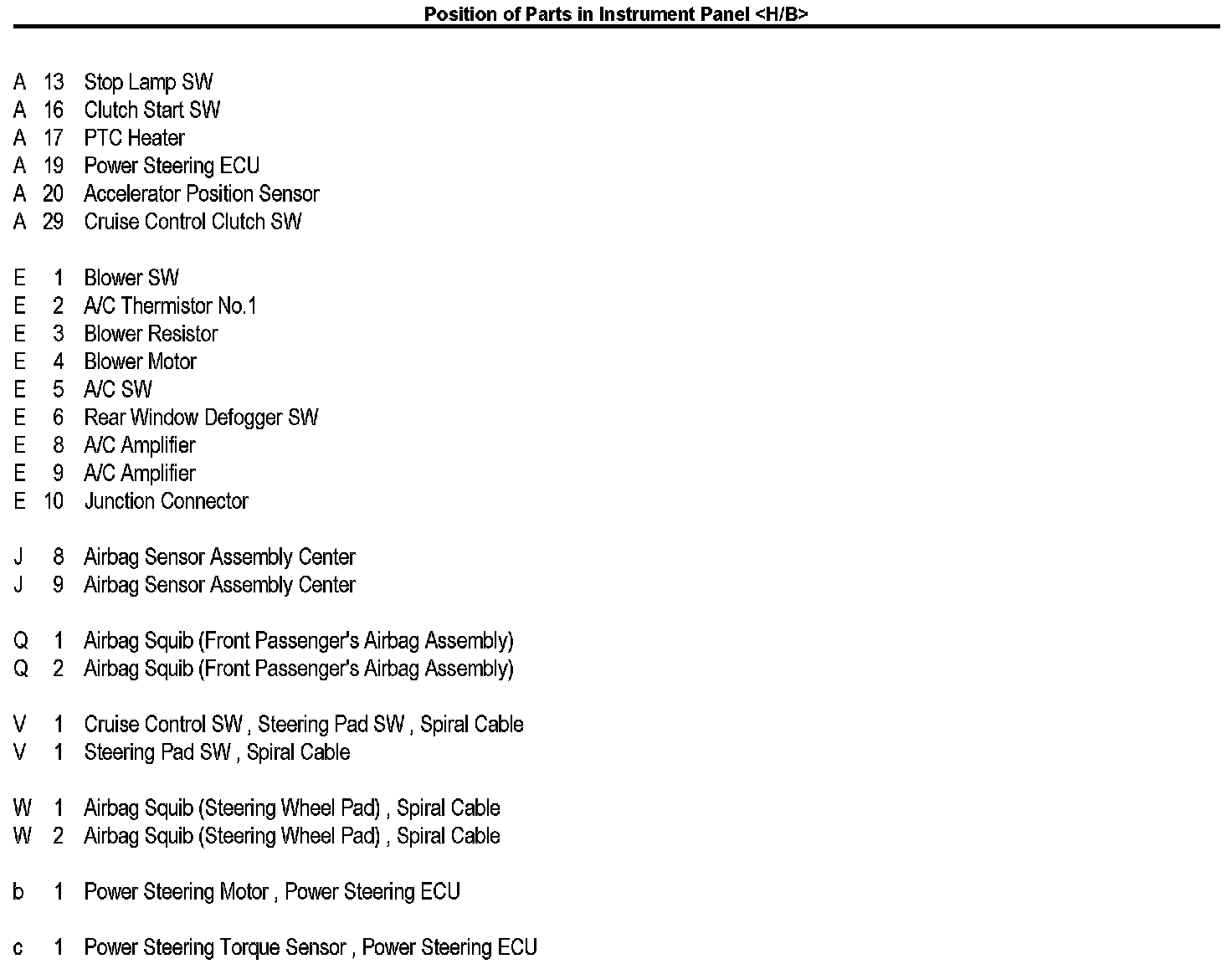

Legend:

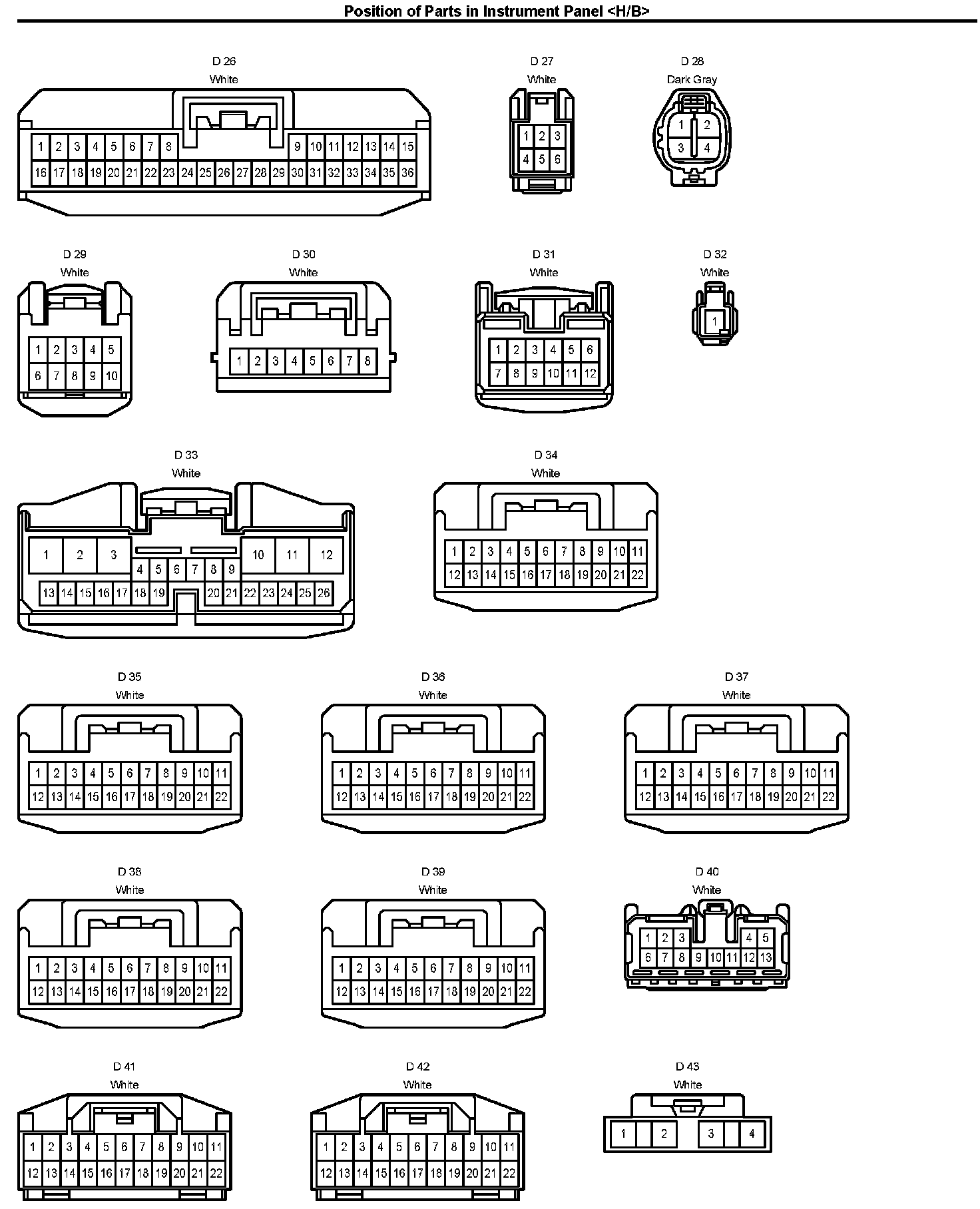

Connector Views:

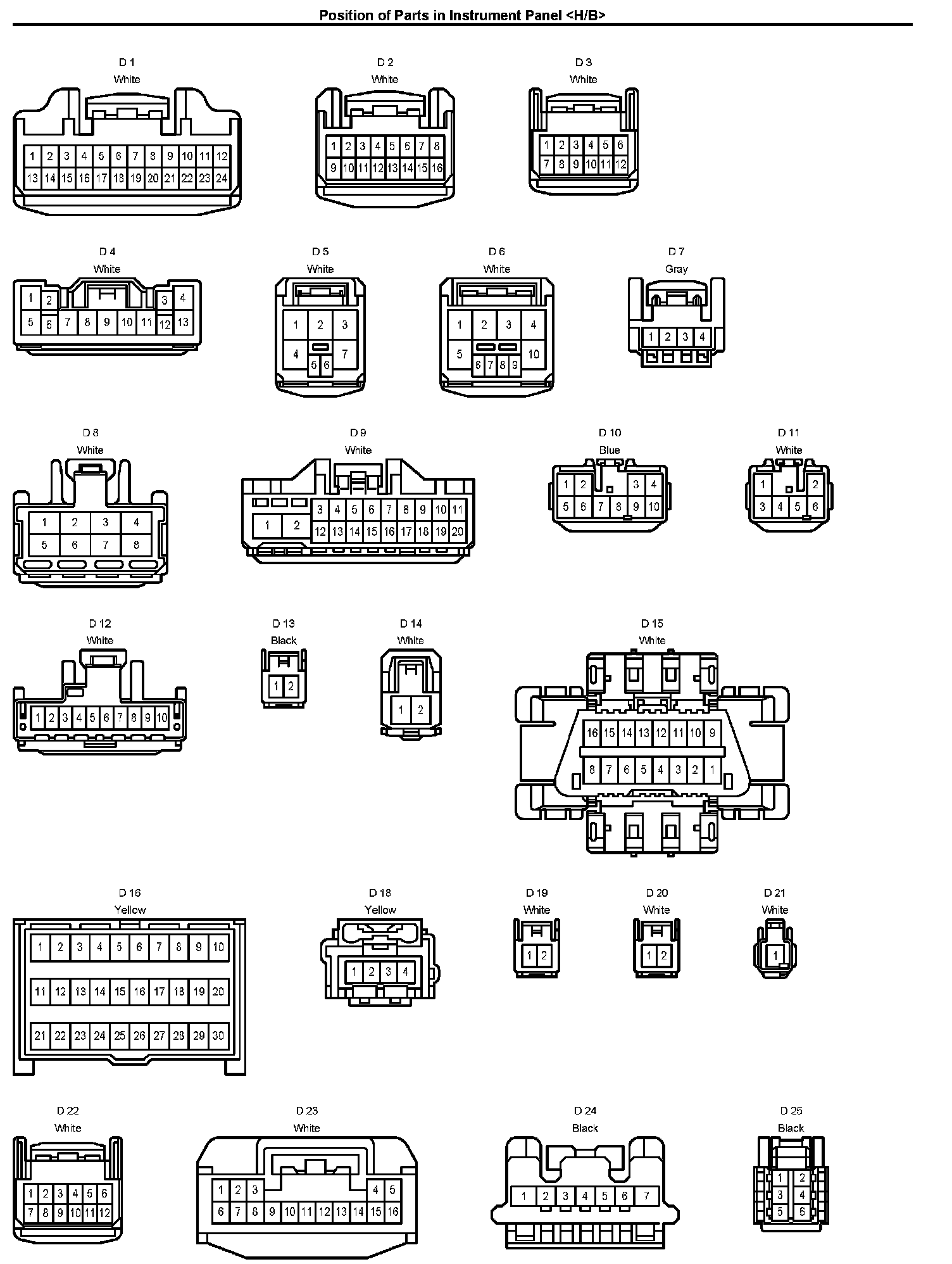

Connector Views:

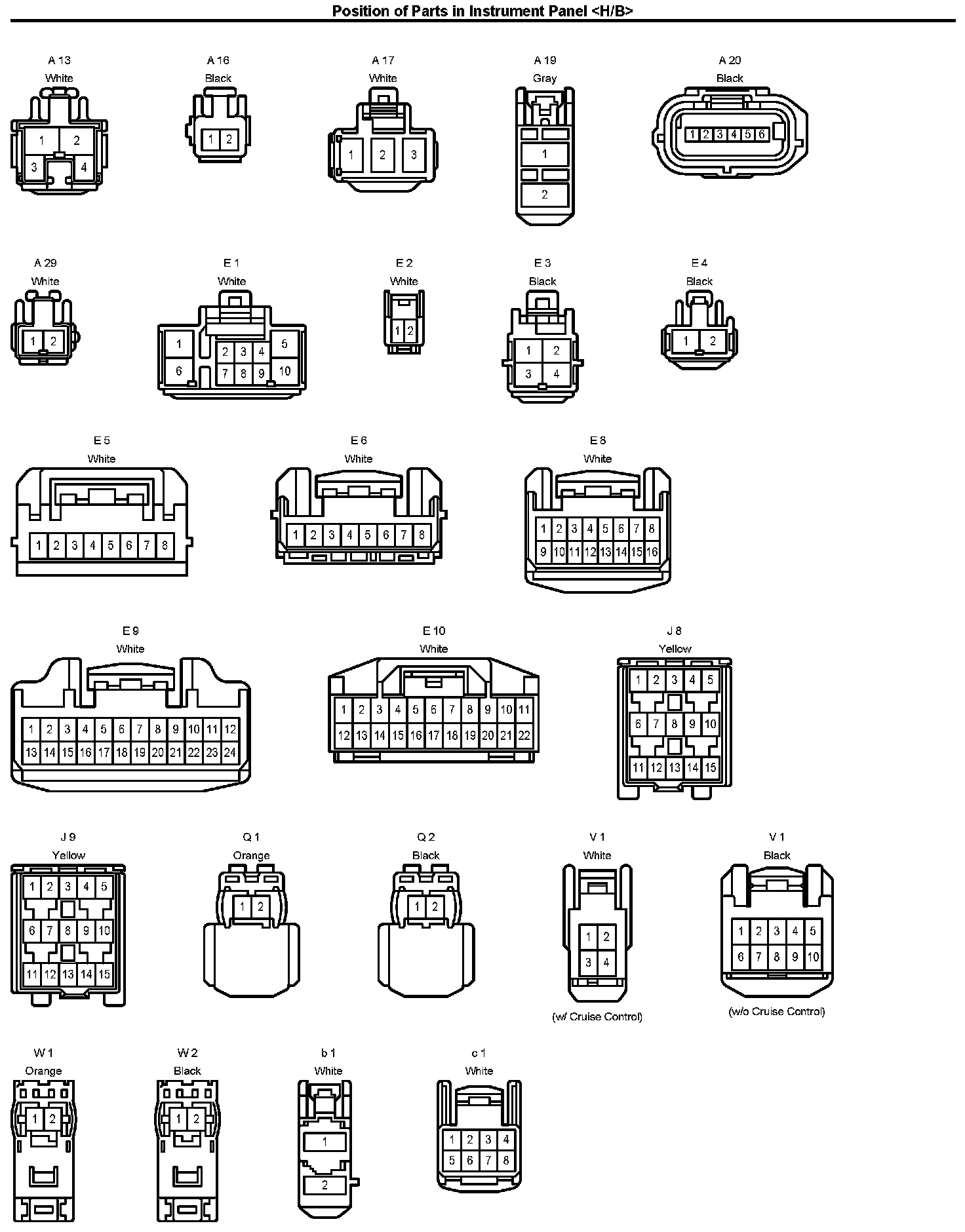

Connector Views:
