Position of Parts In Engine Compartment [Sedan]
Position of Parts In Engine Compartment [Sedan]

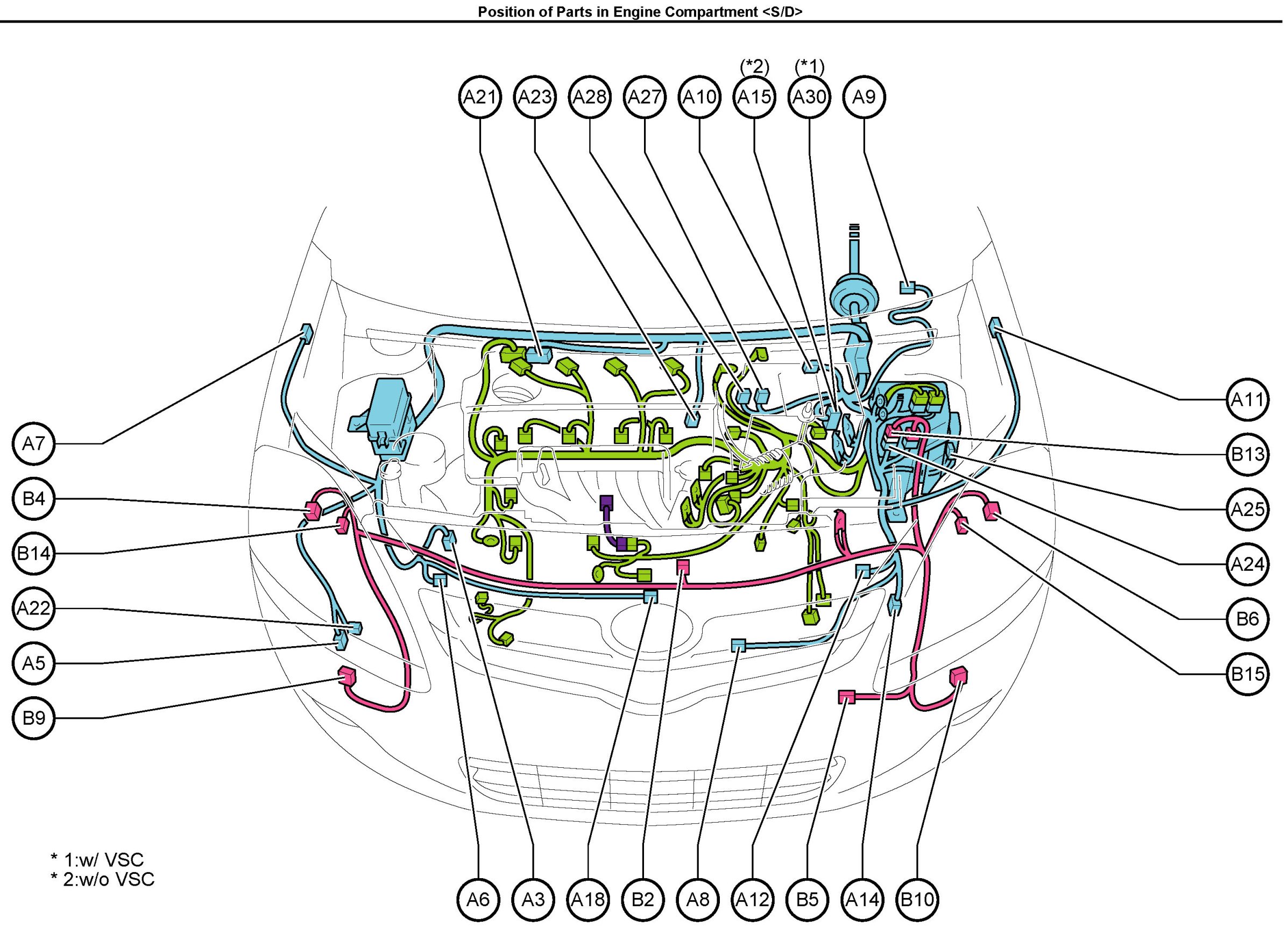

Position Of Parts In Engine Compartment [S/D]:

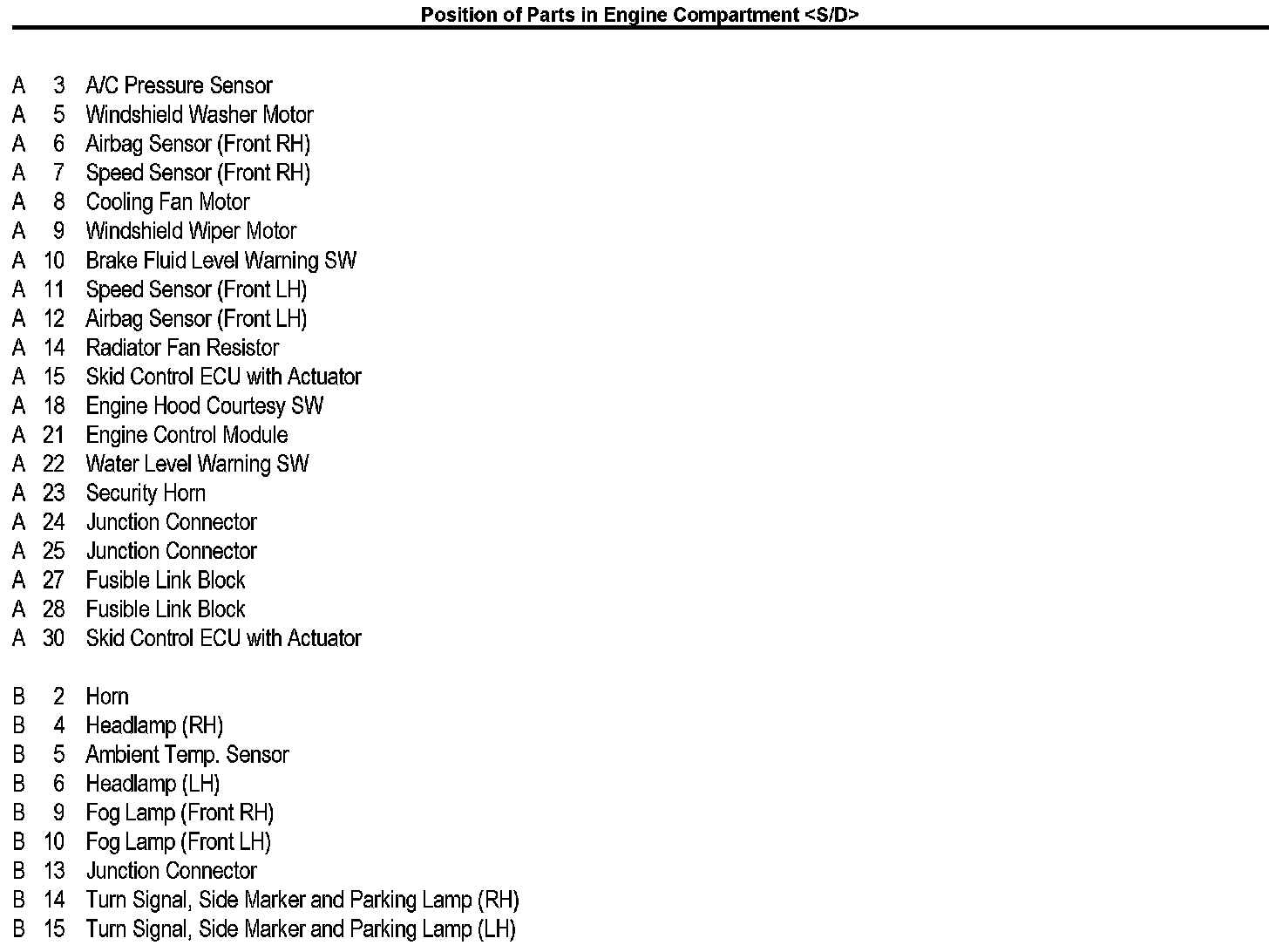

Legend:

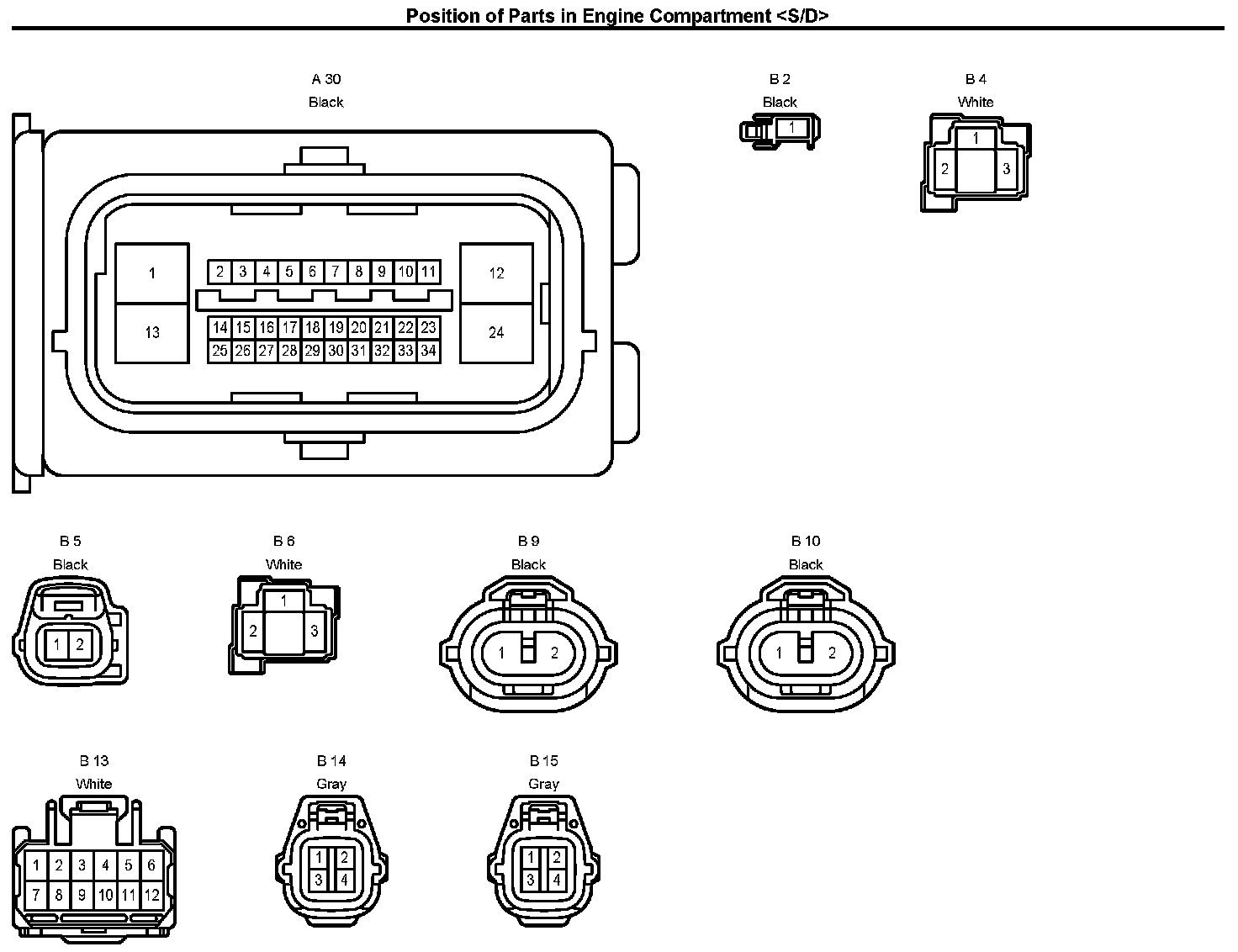

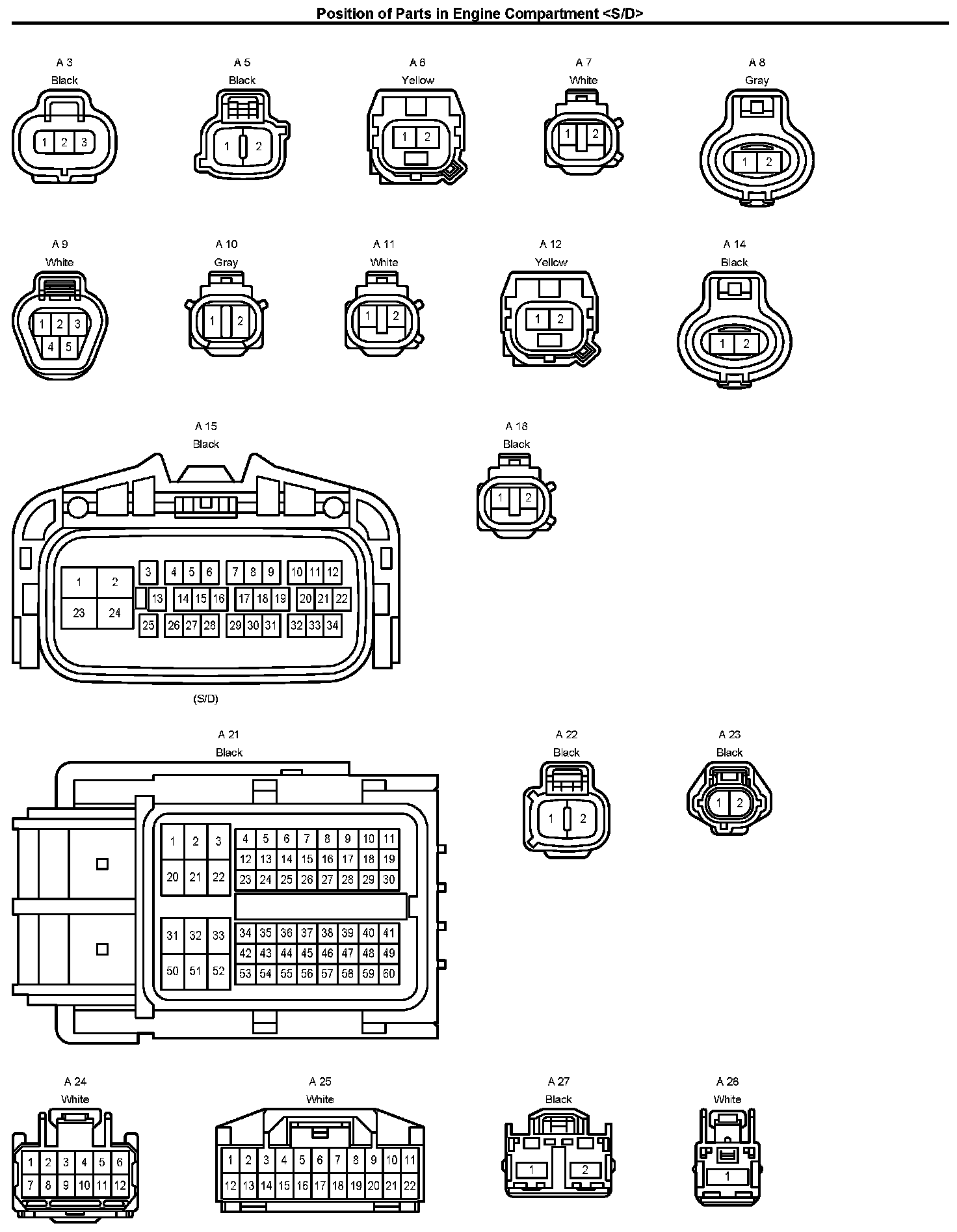

Connector Views:
Connector Views:

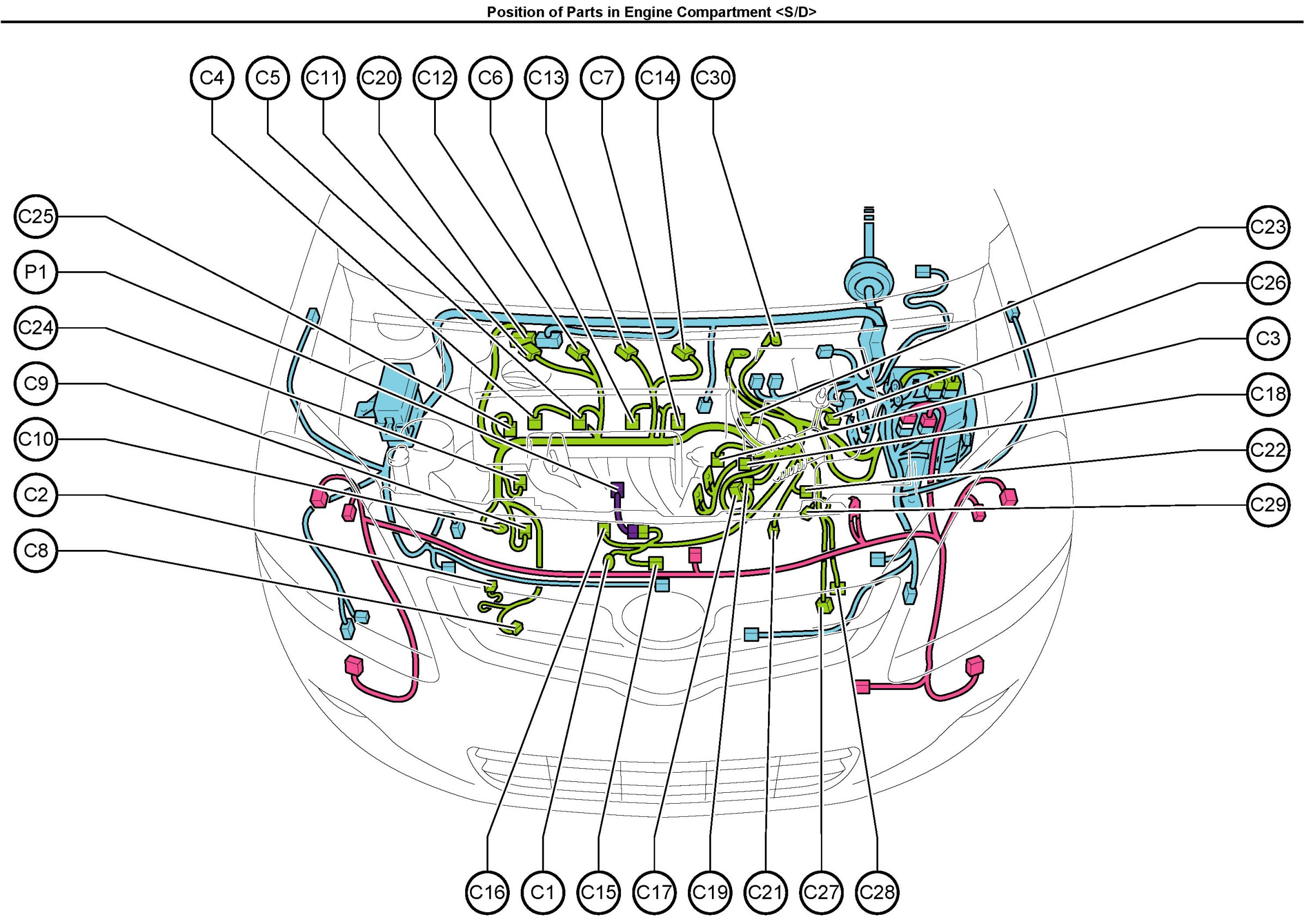

Position Of Parts In Engine Compartment [S/D]:

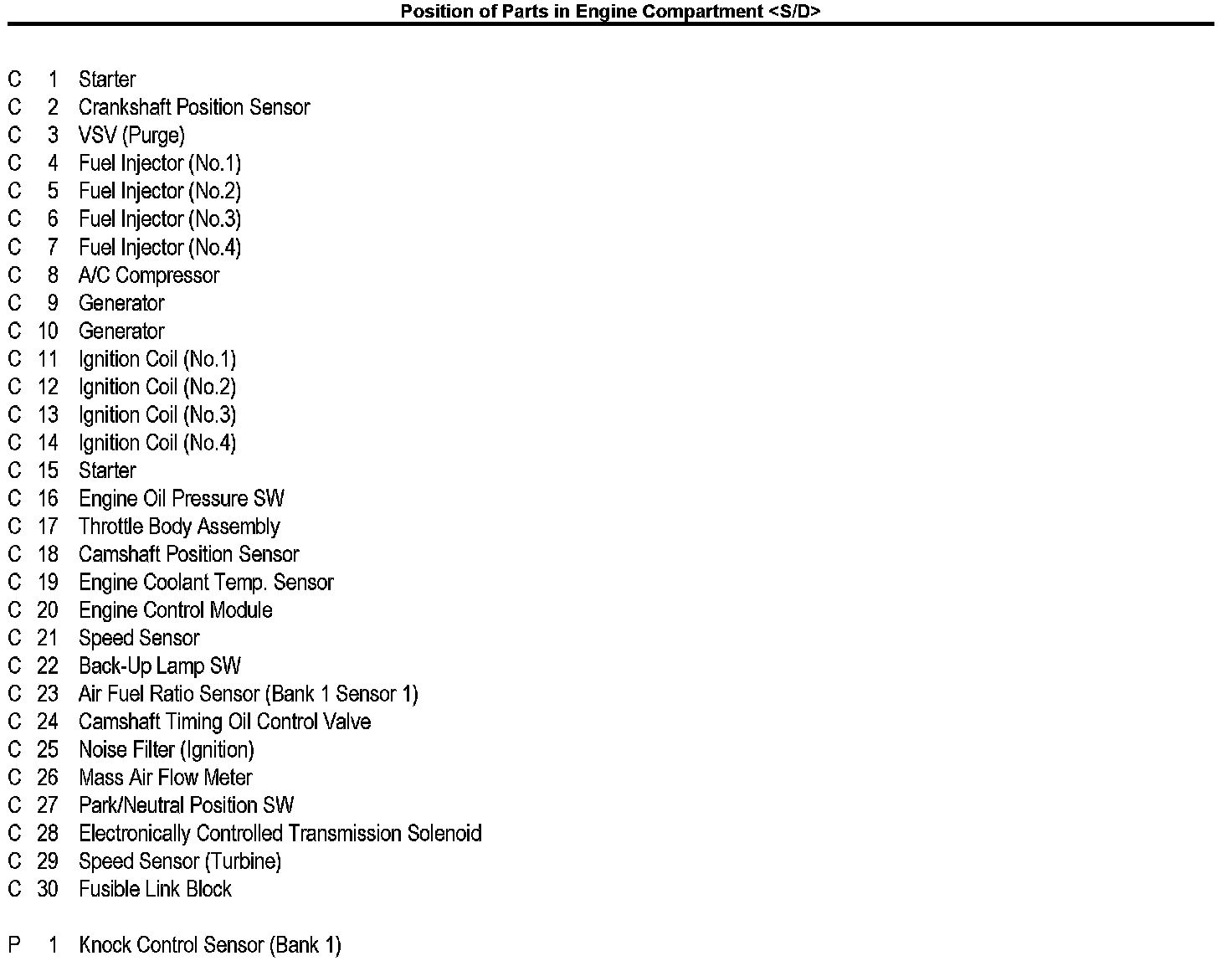

Legend:

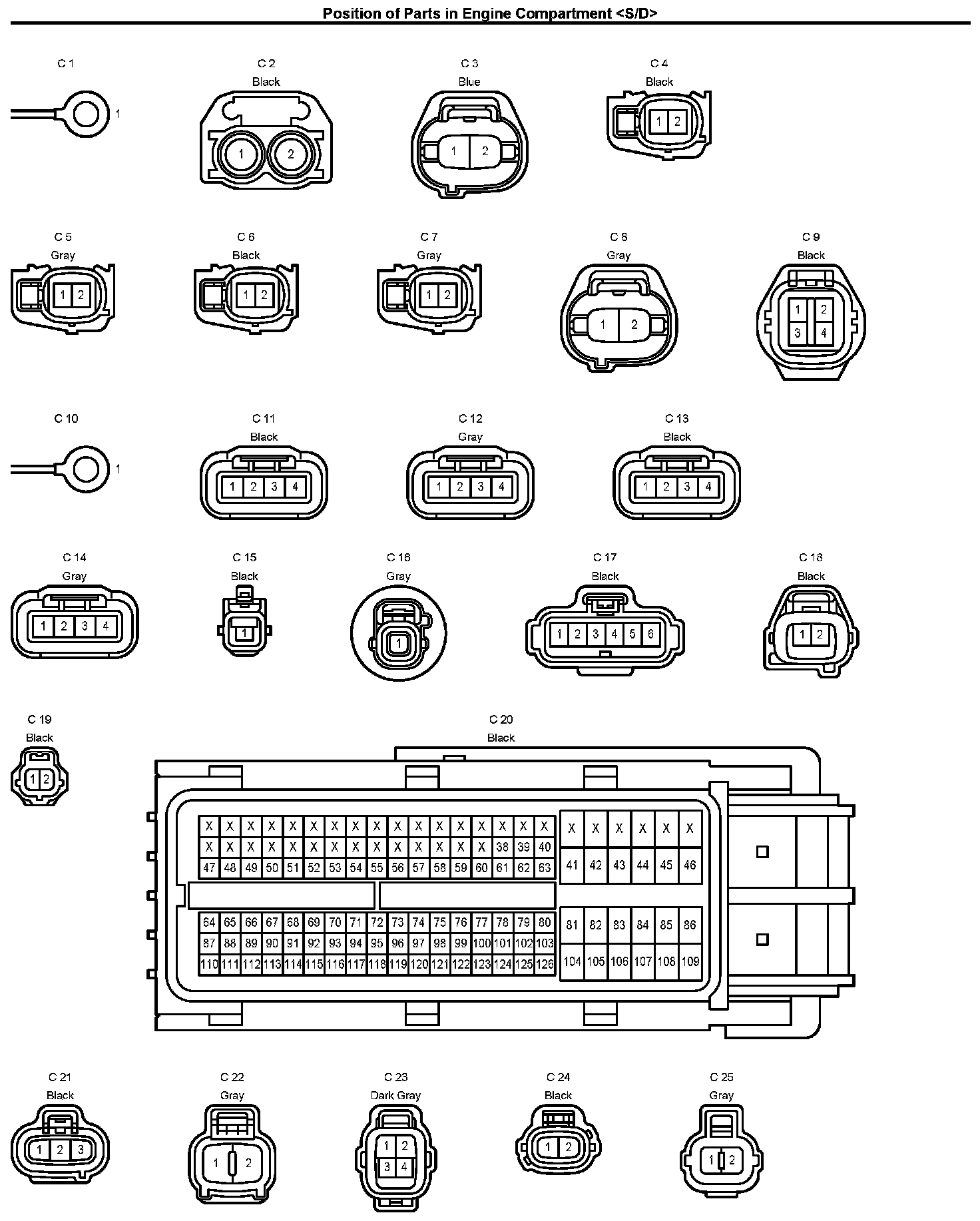

Connector Views:
Connector Views:
