Pinout Values and Diagnostic Parameters

CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

1. CHECK ECM

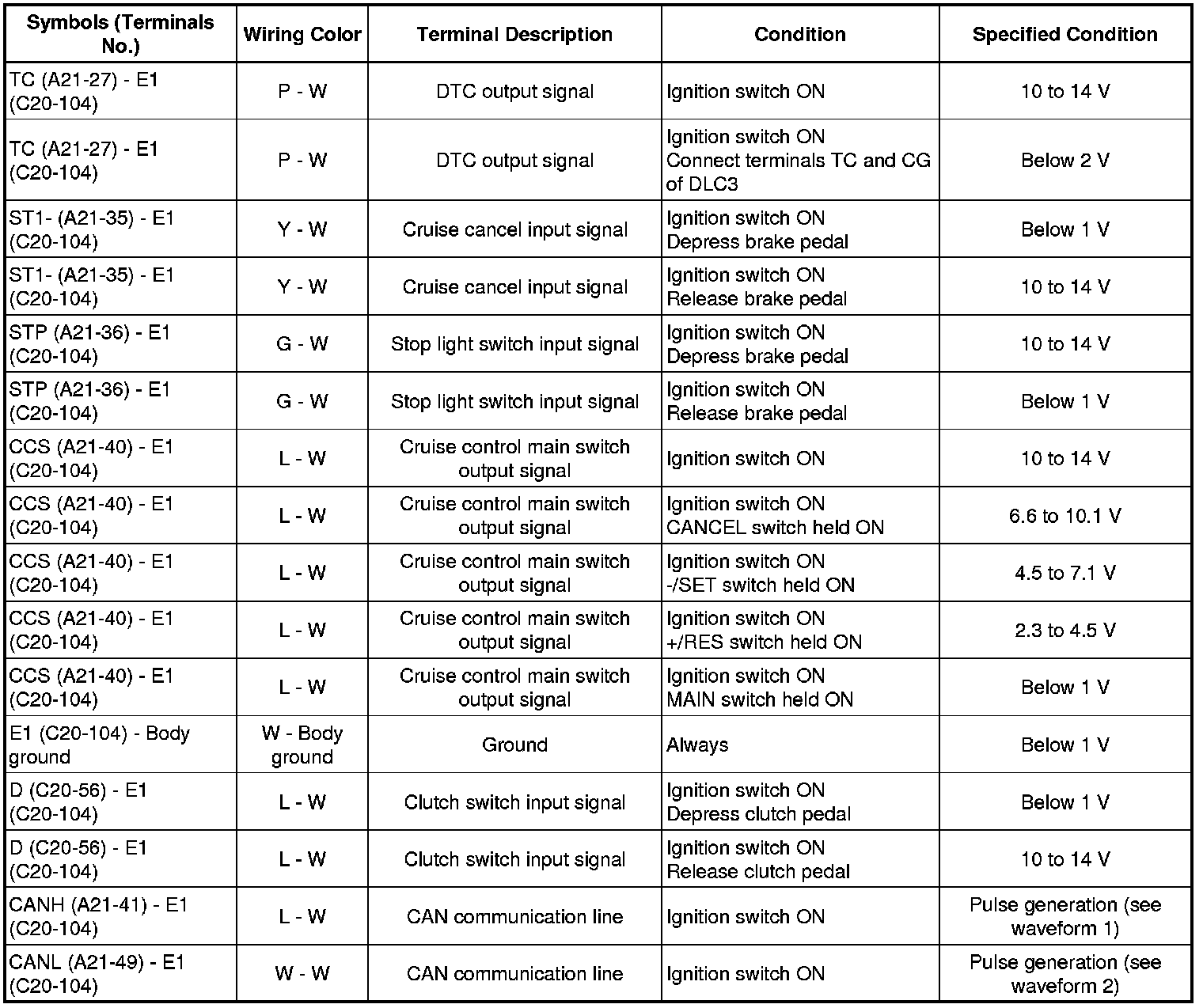

(a) Measure the voltages of the wire harness side connectors.

Standard voltage::

If the result is not as specified, there may be a malfunction on the wire harness side.

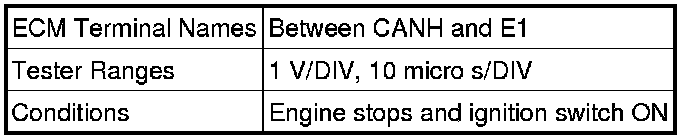

2. WAVEFORM 1(Reference)

CAN communication signal:

HINT
The waveform varies depending on the CAN communication signal.

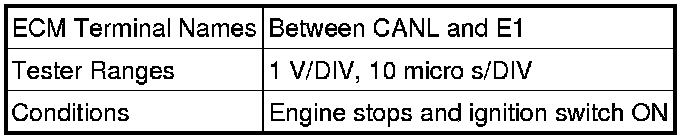

3. WAVEFORM 2(Reference)

CAN communication signal:

HINT
The waveform varies depending on the CAN communication signal.
