Removal

CRUISE CONTROL: CLUTCH SWITCH: REMOVAL

1. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH

for Sedan: Removal

for Hatchback: Removal

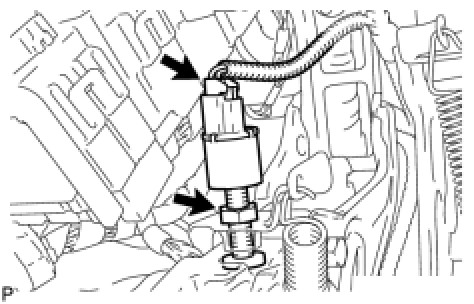

2. REMOVE CLUTCH SWITCH ASSEMBLY

(a) Disconnect the connector.





(b) Loosen the nut and remove the clutch switch assembly.
