Removal

BRAKE: PROPORTIONING VALVE: REMOVAL

1. DRAIN BRAKE FLUID

NOTICE:
Immediately wash off any brake fluid that comes into contact with any painted surfaces.

2. REMOVE PROPORTIONING VALVE

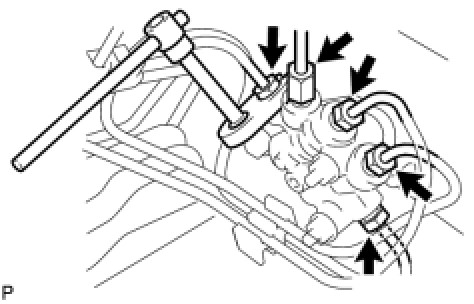

(a) Using a union nut wrench, separate the 5 brake tubes from the proportioning valve.

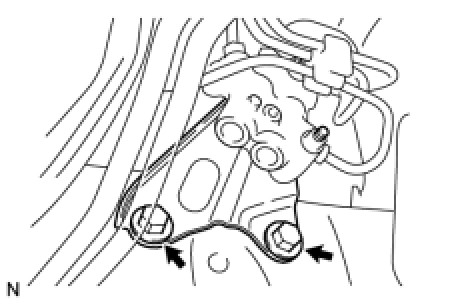

(b) Remove the 2 bolts and remove the proportioning vale bracket.





(c) Remove the 2 nuts and remove the proportioning valve from the proportioning valve bracket.
