Home
>>
Toyota
>>
2010
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Hydraulic System
>>
Brake Proportioning/Combination Valve
>>
Service and Repair
>>
Components
Components

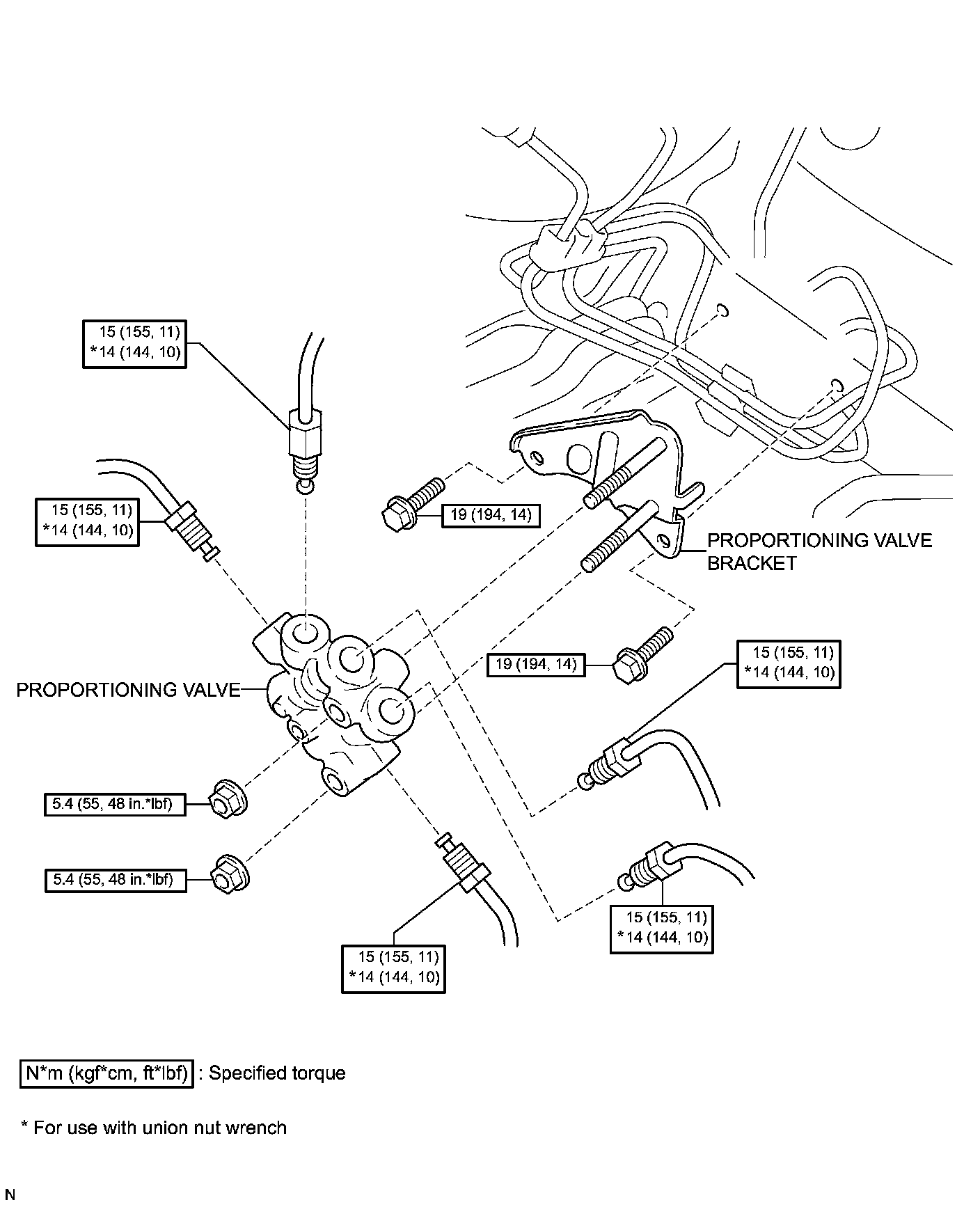

BRAKE: PROPORTIONING VALVE: COMPONENTS
