Removal
BRAKE: BRAKE PEDAL SUPPORT: REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Removal
3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Hatchback: Removal
Sedan: Removal
4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Hatchback: Removal
Sedan: Removal
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL NO.1
Hatchback: Removal
Sedan: Removal
6. REMOVE COMBINATION METER ASSEMBLY
Hatchback: Removal
Sedan: Removal
7. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Hatchback: Removal
Sedan: Removal
8. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Hatchback: Removal
Sedan: Removal
9. REMOVE FRONT PILLAR GARNISH RH
Hatchback: Removal
Sedan: Removal
10. REMOVE FRONT PILLAR GARNISH LH
Hatchback: Removal
Sedan: Removal
11. REMOVE NO. 1 SWITCH HOLE BASE (for Hatchback) Removal
12. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Hatchback: Removal
Sedan: Removal
13. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
Hatchback: Removal
Sedan: Removal
14. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Hatchback: Removal
Sedan: Removal
15. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Hatchback: Removal
Sedan: Removal
16. REMOVE COLUMN HOLE COVER SILENCER SHEET Removal
17. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY Removal
18. REMOVE STOP LIGHT SWITCH

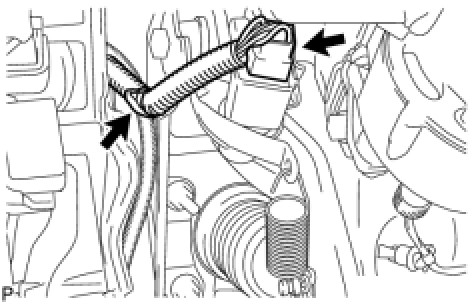

(a) Disconnect the connector from the stop light switch.
(b) Disconnect the wire harness clamp from the pedal support.

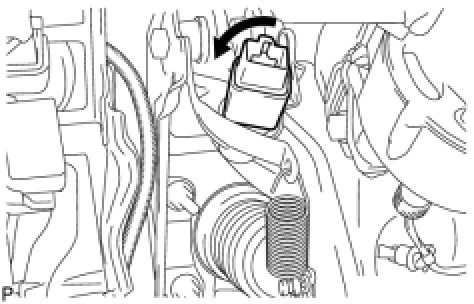

(c) Turn the stop light switch counterclockwise, and remove the stop light switch.
19. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
(a) Remove the stop light switch mounting adjuster from the pedal support.
20. SEPARATE BRAKE MASTER CYLINDER PUSH ROD CLEVIS
(a) Remove the brake pedal return spring.
(b) Remove the clip and the push rod pin and separate the push rod clevis from the brake pedal.
21. REMOVE BRAKE PEDAL SUPPORT
(a) Remove the 4 nuts and bolt and remove the pedal support.
22. REMOVE BRAKE PEDAL
(a) Remove the nut and brake pedal shaft and remove the brake pedal from the pedal support.
23. REMOVE BRAKE PEDAL BUSH
(a) Remove the 2 brake pedal bushes from the brake pedal.
24. REMOVE BRAKE PEDAL PAD
(a) Remove the brake pedal pad from the brake pedal.
