Home
>>
Toyota
>>
2010
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Brake Pedal Assy
>>
Service and Repair
>>
Components
Components

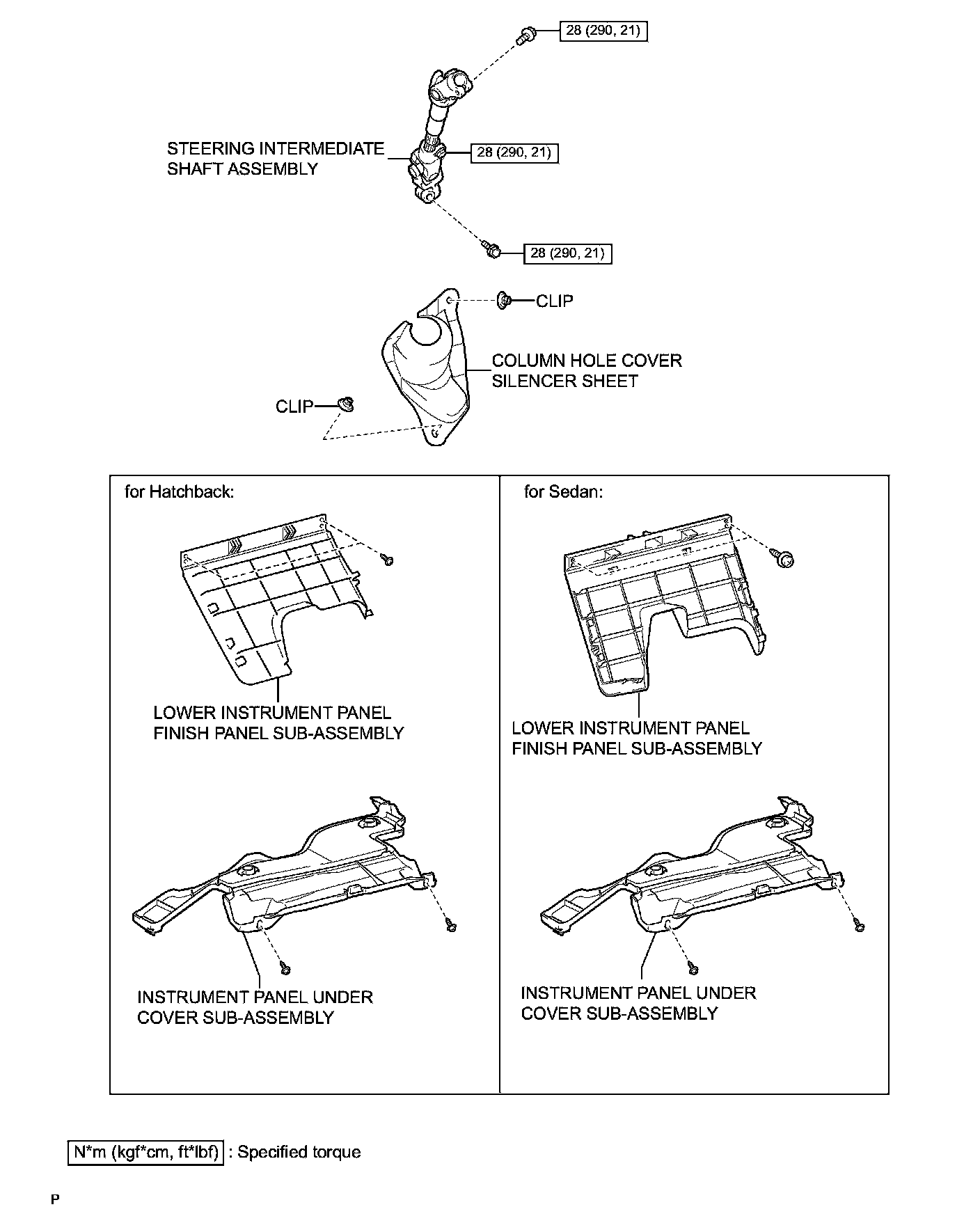

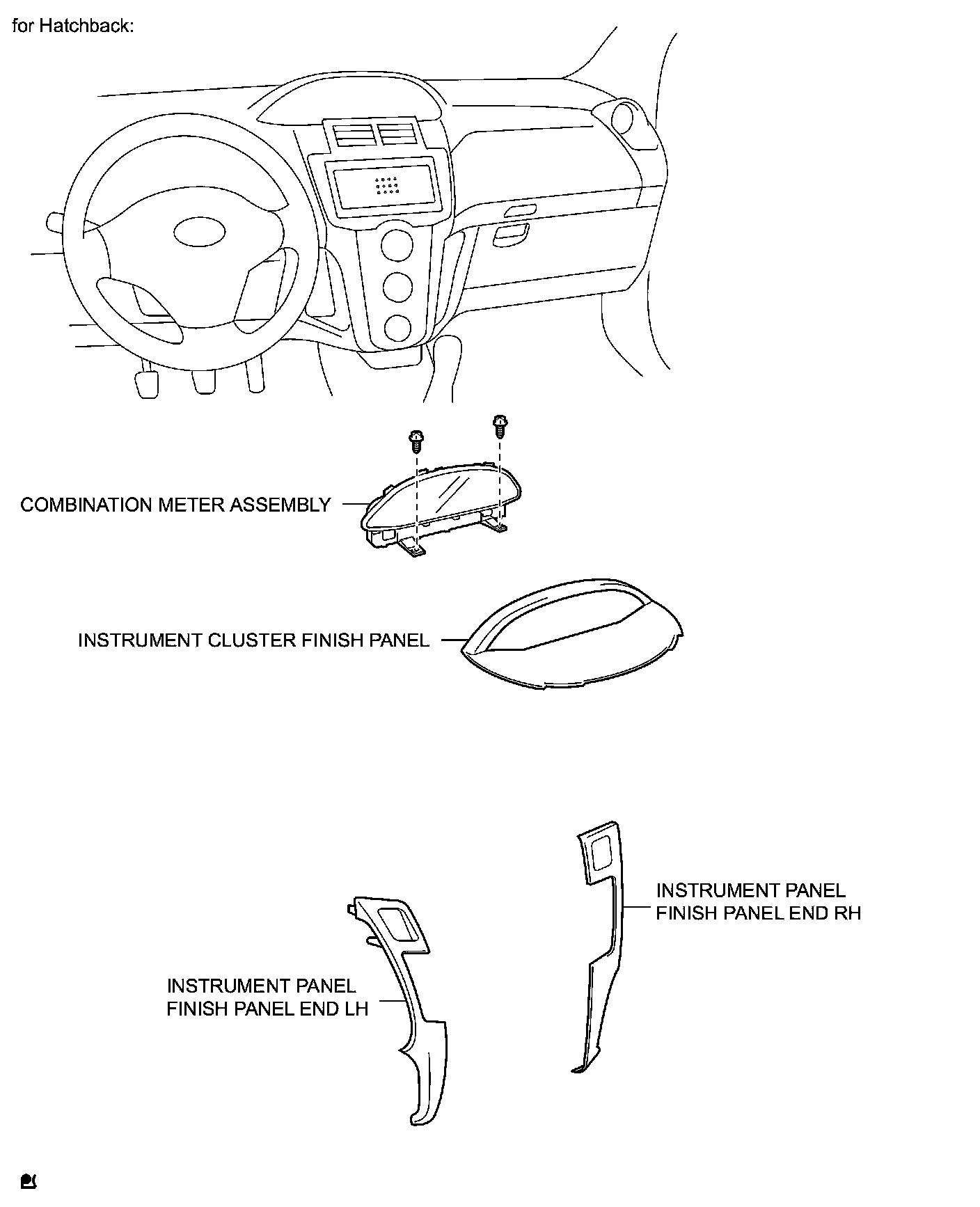

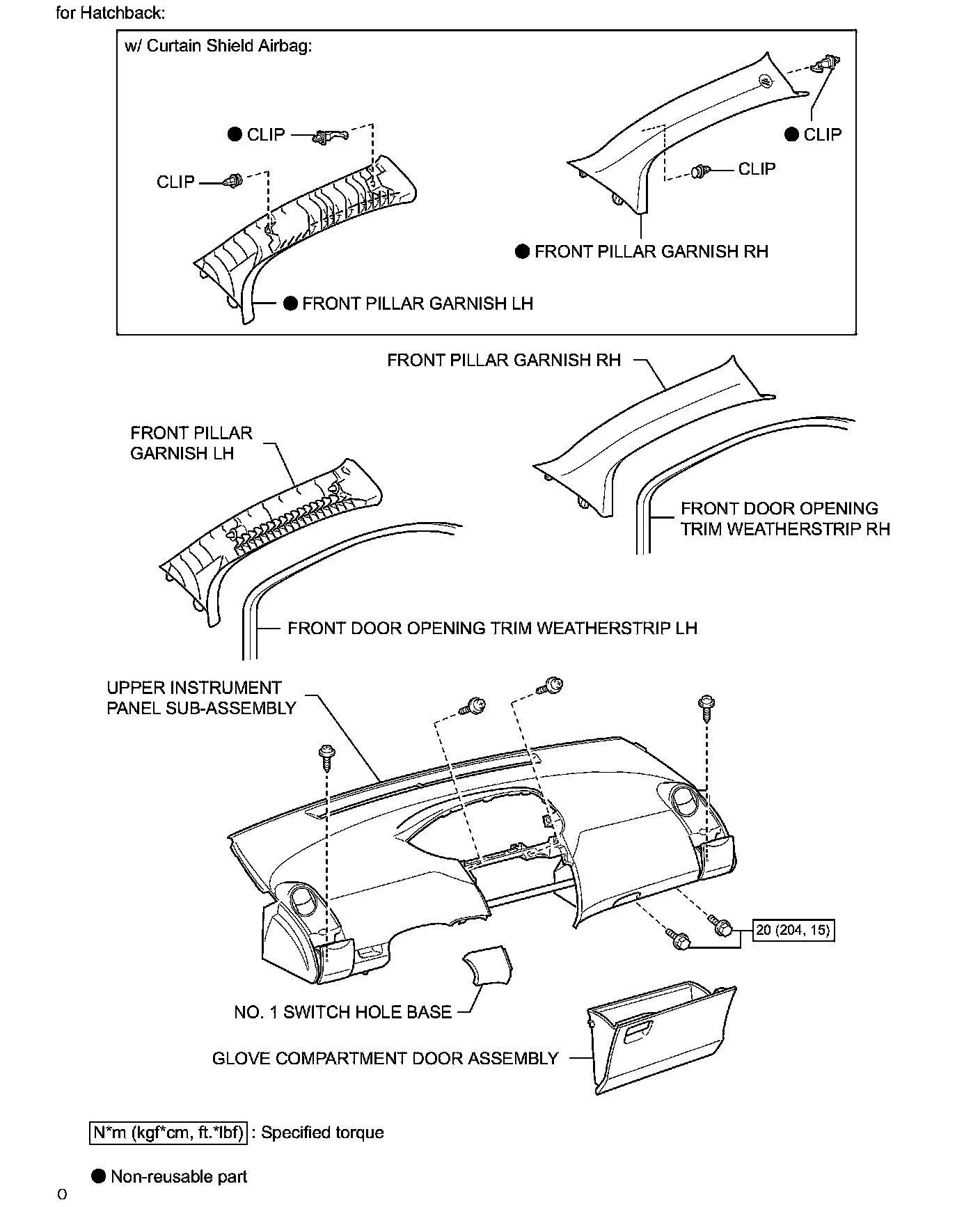

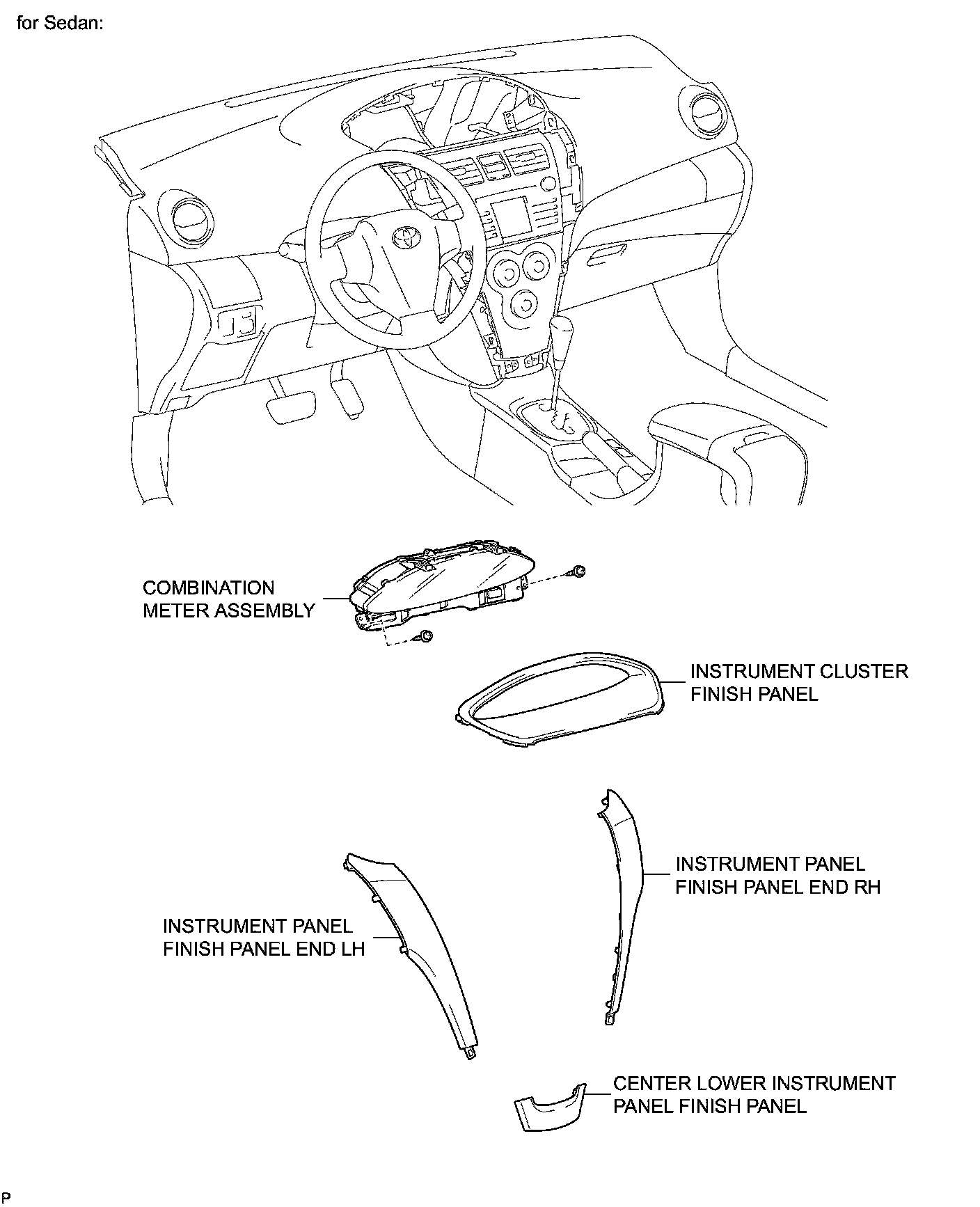

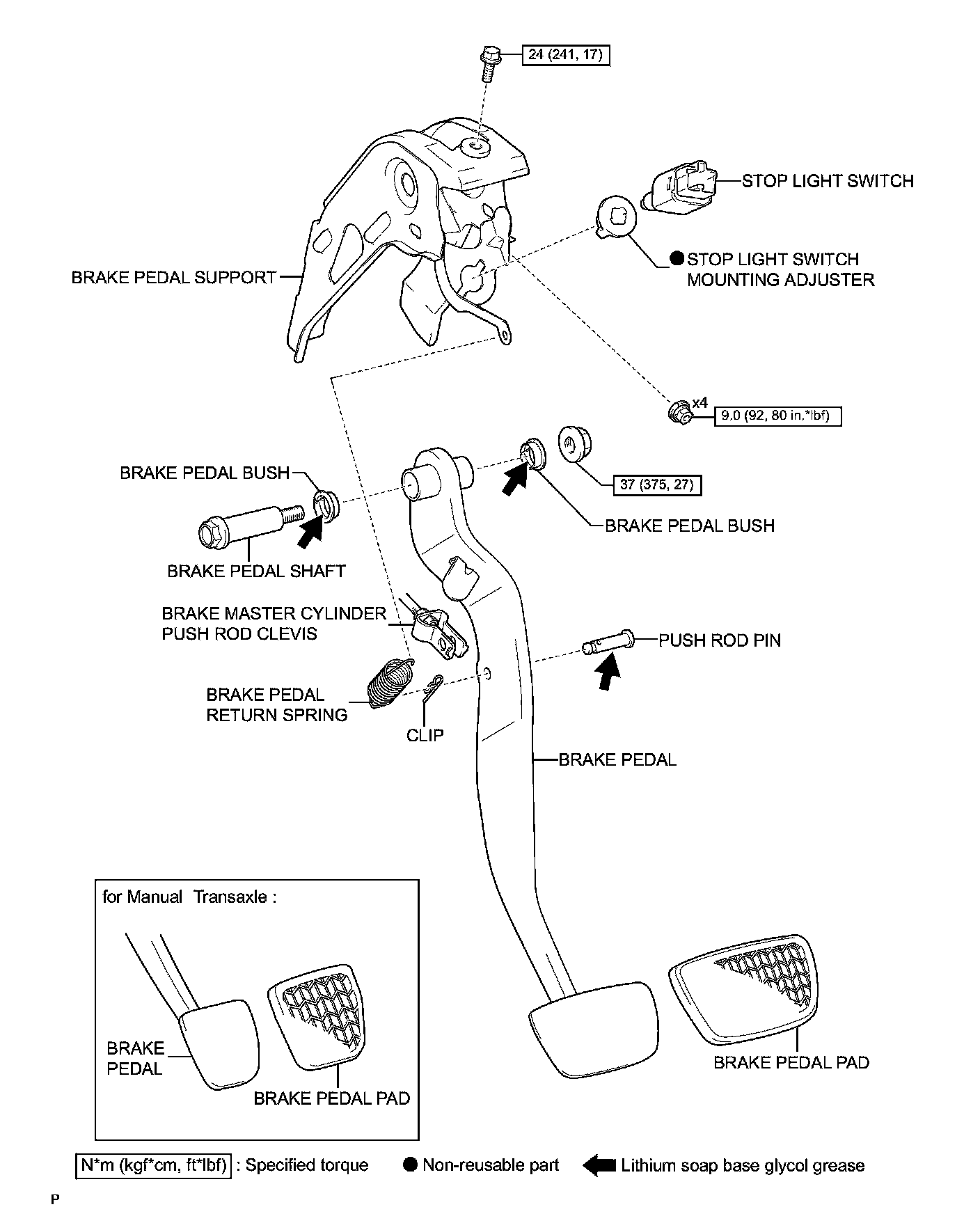

BRAKE: BRAKE PEDAL SUPPORT: COMPONENTS
