ABS (Antilock Brake System) (for Hatchback)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM (for Hatchback): TERMINALS OF ECU

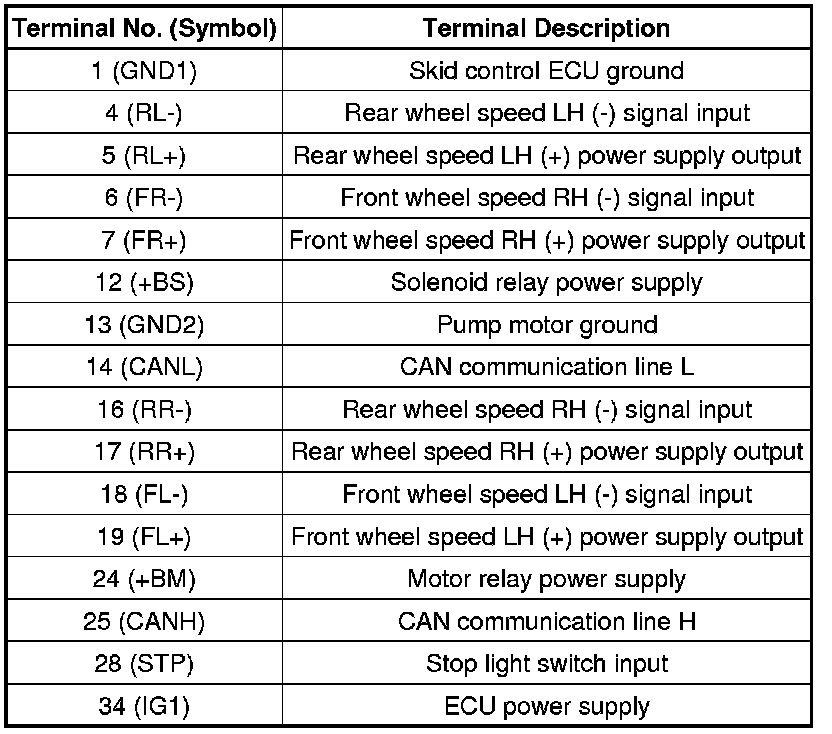

1. TERMINALS OF ECU

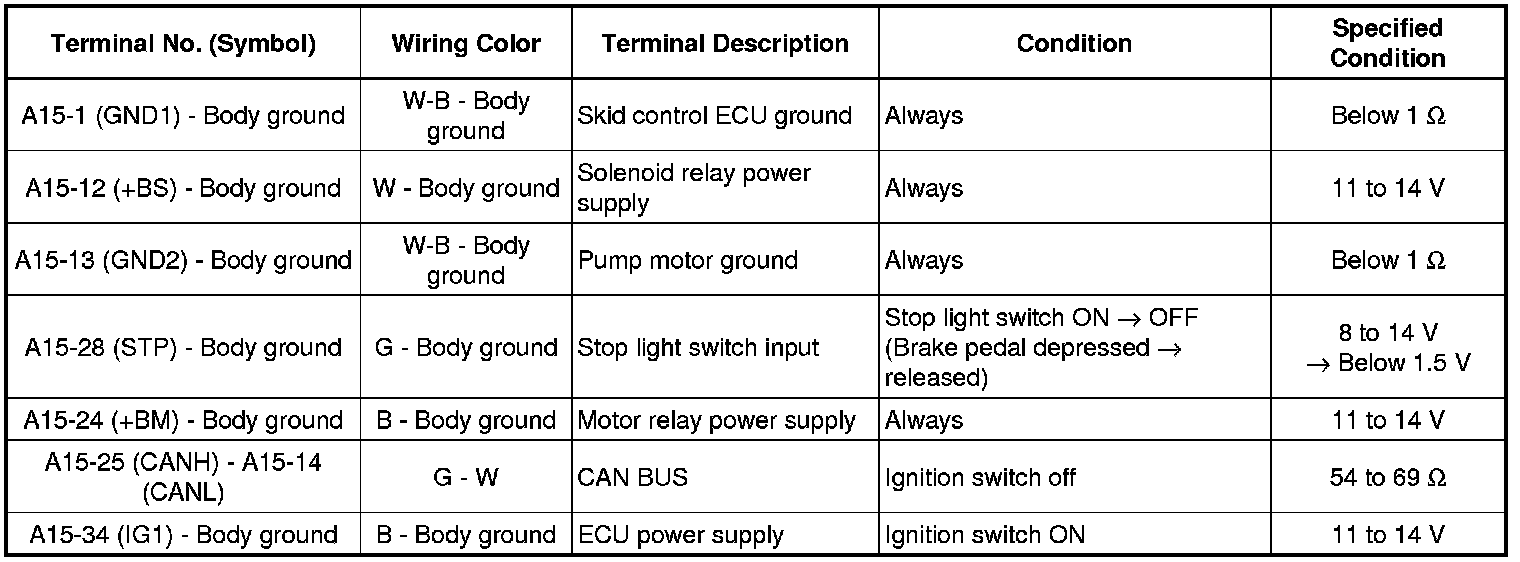

2. TERMINAL INSPECTION

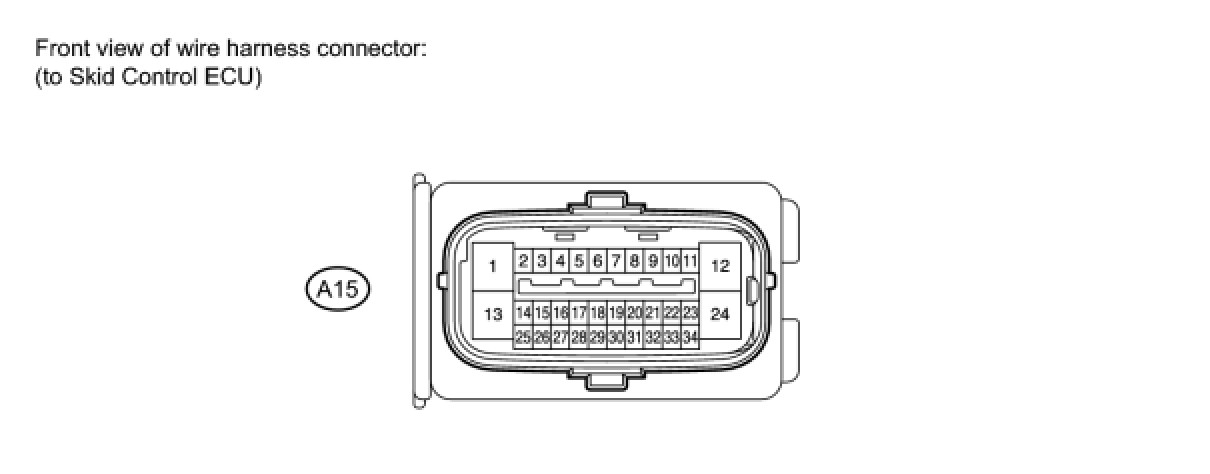

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.

HINT
Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
