Seats: Specifications

SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

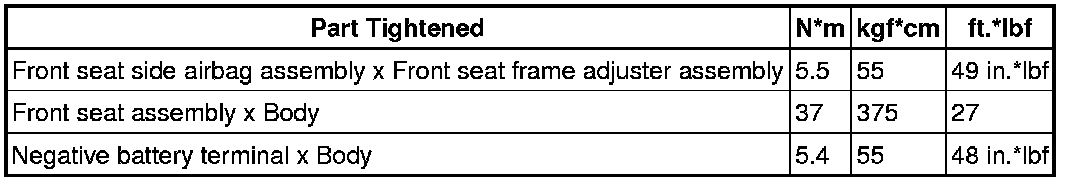

FRONT SEAT ASSEMBLY::

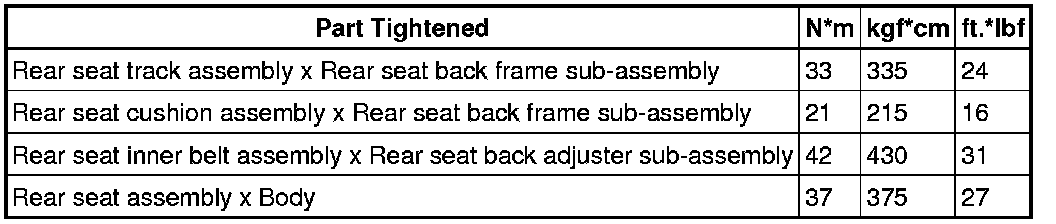

REAR SEAT ASSEMBLY (for Separate Folding Seat Type)::

REAR SEAT ASSEMBLY (for 60/40 Slide Reclining Fold Down Seat Type RH Side)::

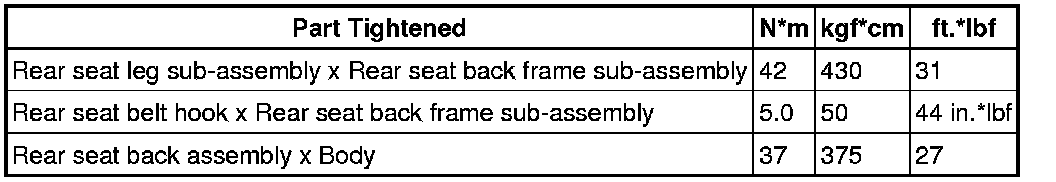

REAR SEAT ASSEMBLY (for Bench Reclining Fold Down Seat Type)::
