Front Seat Assembly (for Hatchback)
>>
Components
Components

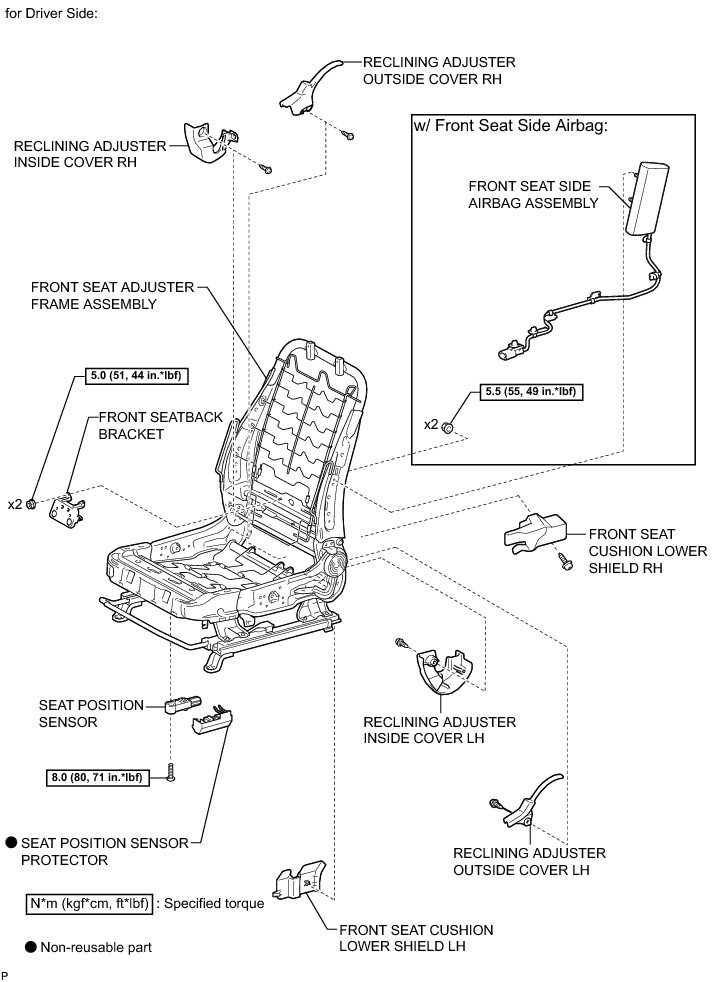

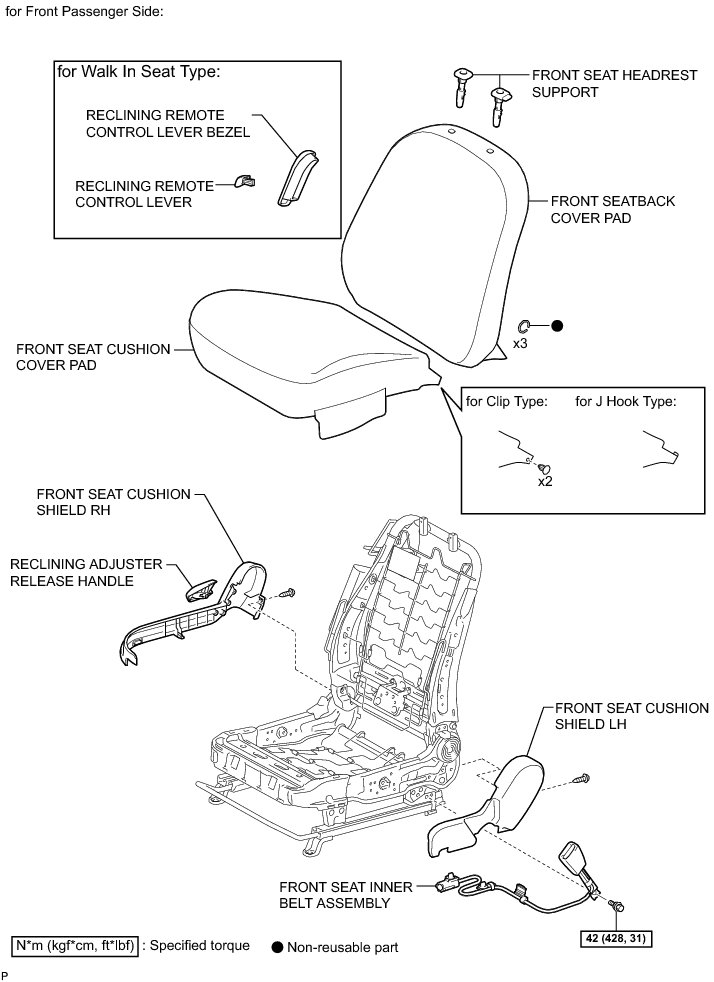

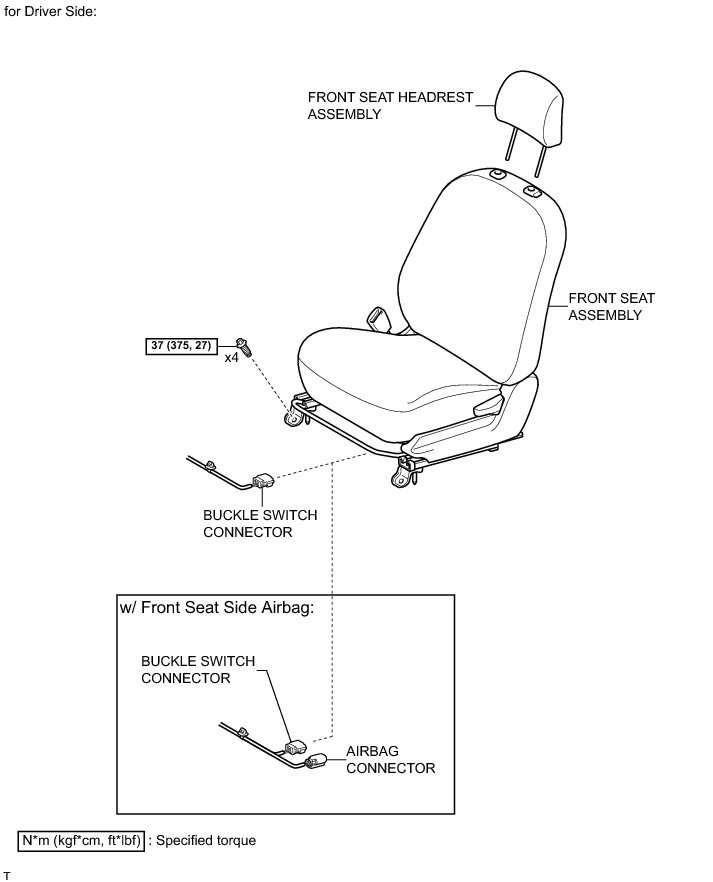

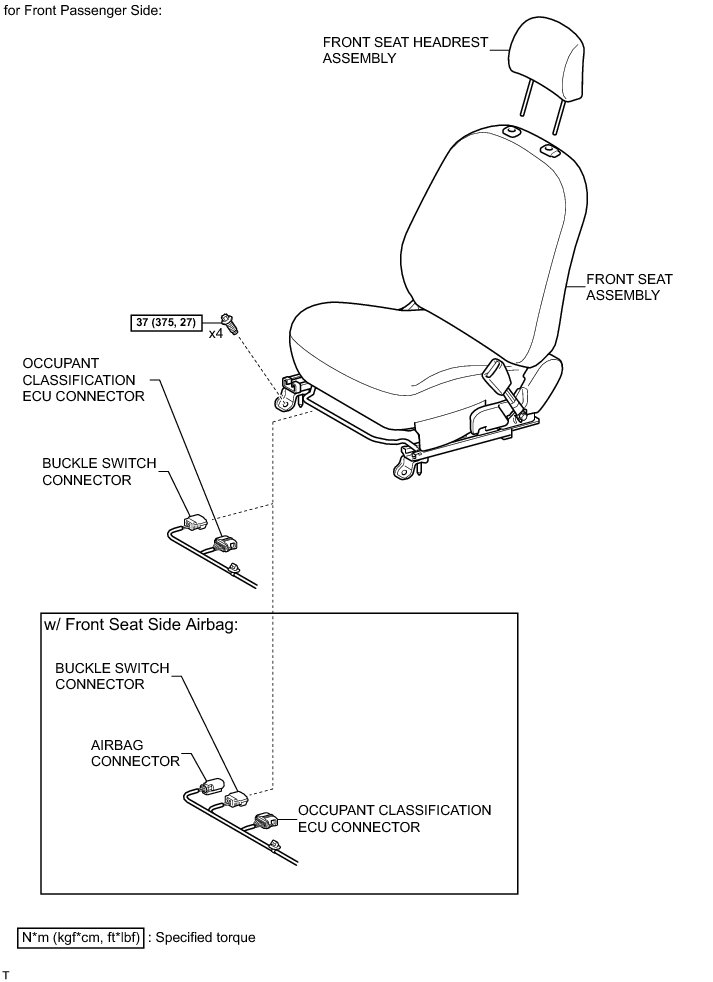

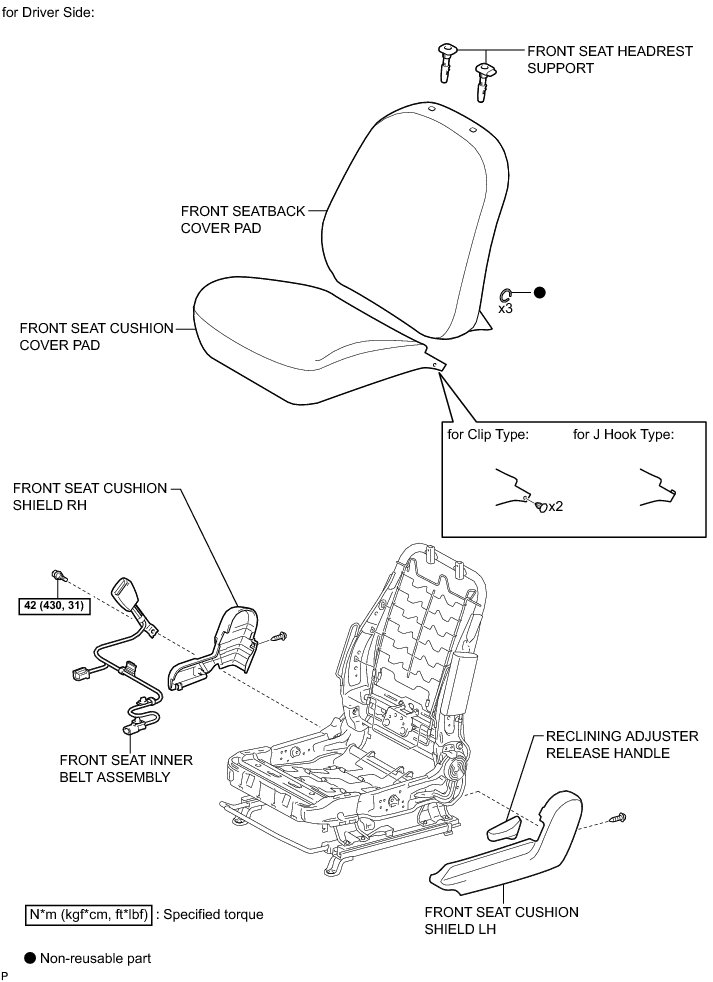

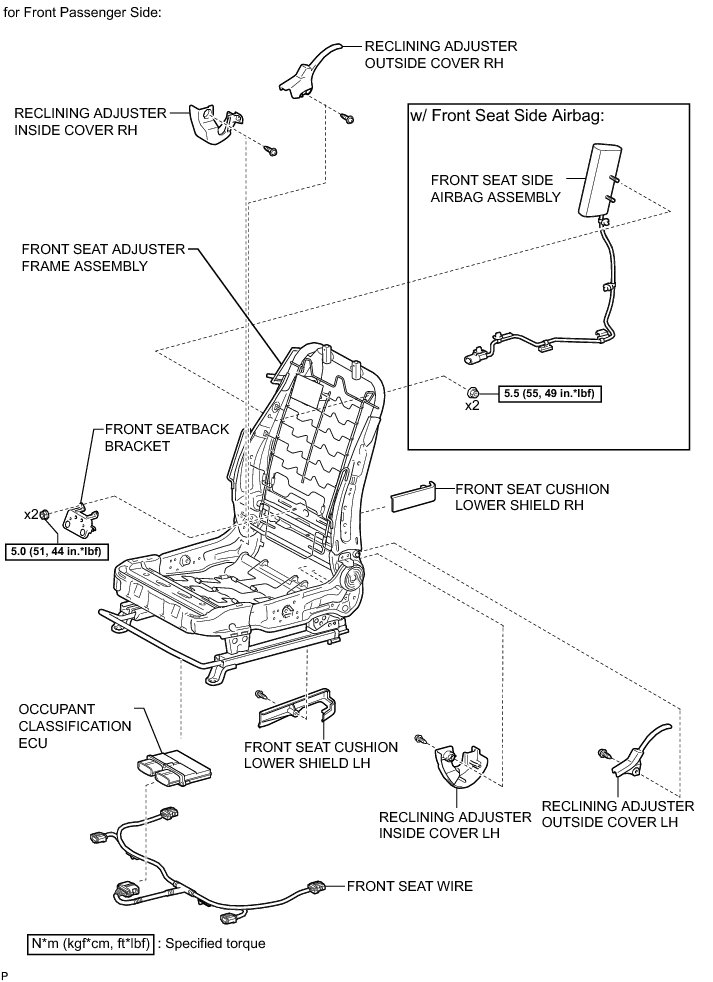

SEAT: FRONT SEAT ASSEMBLY (for Hatchback): COMPONENTS
