Installation

MIRROR: INNER REAR VIEW MIRROR: INSTALLATION

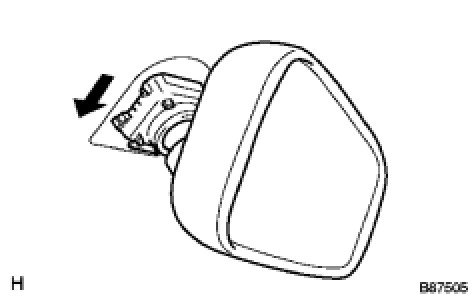

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY





(a) Slide and install the inner rear view mirror.

(b) Engage the 2 claws and install the cover.
