Outer Mirror Switch (for Hatchback)

MIRROR: OUTER MIRROR SWITCH (for Hatchback): INSPECTION

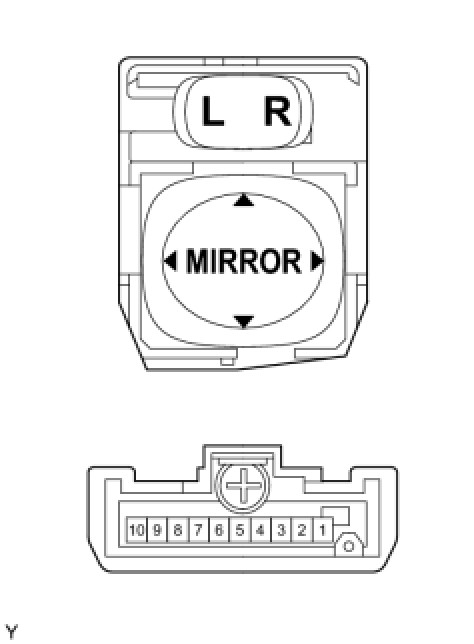

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY





(a) Check the resistance.

(1) Select L on the left/right adjustment switch.

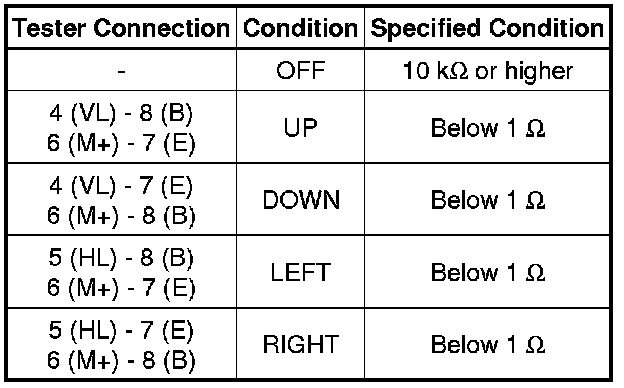

(2) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

Standard Resistance:





(2) If the result is not as specified, replace the outer mirror switch.

(3) Select R on the left/light adjustment switch.

(4) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

Standard Resistance:





(4) If the result is not as specified, replace the outer mirror switch.
