Removal

MIRROR: OUTER MIRROR SWITCH (for Hatchback): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL BOX Removal

3. REMOVE OUTER MIRROR SWITCH ASSEMBLY





(a) Disconnect the connector.

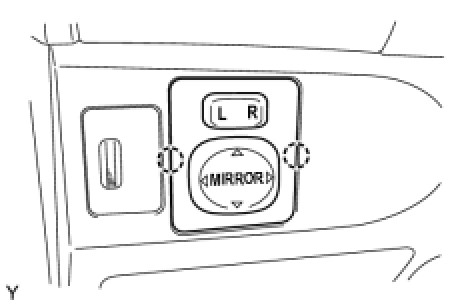

(b) Disengage the 2 claws and remove the outer mirror switch.
