Removal

DOOR LOCK: DOOR CONTROL SWITCH (for Sedan): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT ARMREST BASE UPPER PANEL Disassembly

3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Power Window)





(a) Remove the 3 screws and the power window regulator master switch.

4. REMOVE DOOR CONTROL SWITCH

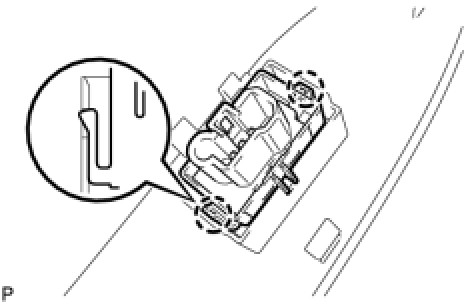

(a) for Front passenger side with power window:

Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the door control switch.

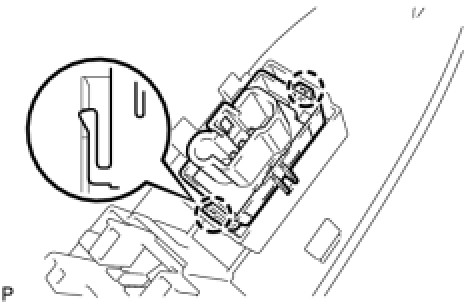

(b) w/o Power window:





(b) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the door control switch.
