Installation

EXTERIOR: FRONT PILLAR UPPER COVER (for Hatchback): INSTALLATION

HINT
The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL FRONT PILLAR UPPER COVER

(a) Engage the 2 claws and the clip and install the front pillar upper cover.

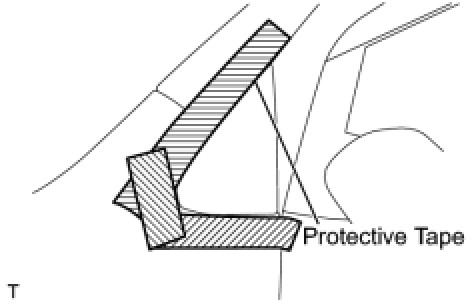

(b) Remove the protective tape.
