Reassembly

INTERIOR: REAR CONSOLE BOX (for Sedan): REASSEMBLY

1. INSTALL CONSOLE COMPARTMENT DOOR CUSHION





(a) for Console compartment door:

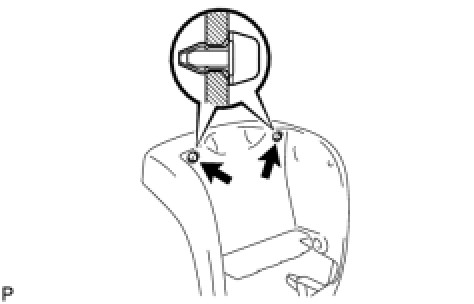

(1) Install the console compartment door cushion.

(b) for Console rear end panel:





(1) Install the console compartment door cushion.

2. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY





(a) Install the console compartment door lock with the 2 screws.

3. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY





(a) Install the console compartment door lock with the 4 screws.

4. INSTALL CONSOLE BOX CUP HOLDER

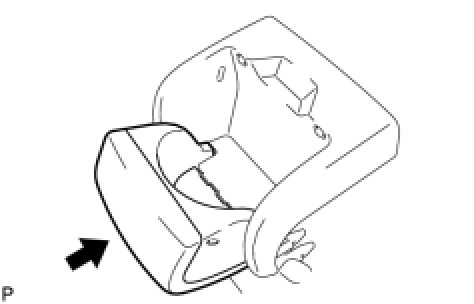

(a) Engage the hinge portion of the cup holder and install the cup holder.

5. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

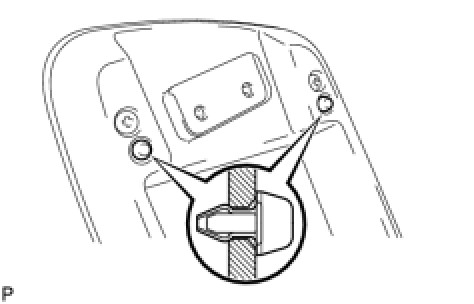

(a) Engage the 4 claws and 4 clips.

(b) Install the console rear end panel with the 2 screws.
