Removal

LIGHTING: PERSONAL LIGHT ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE MAP LIGHT ASSEMBLY

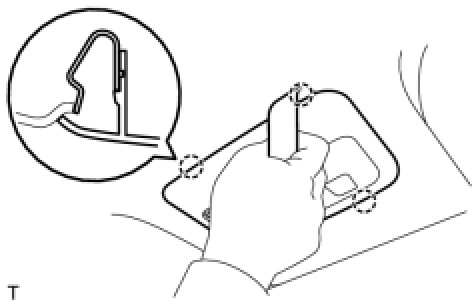

(a) Using a roof moulding remover, disengage the 4 claws.

(b) Disconnect the connector, and remove the map light.

3. REMOVE MAP LIGHT BULB

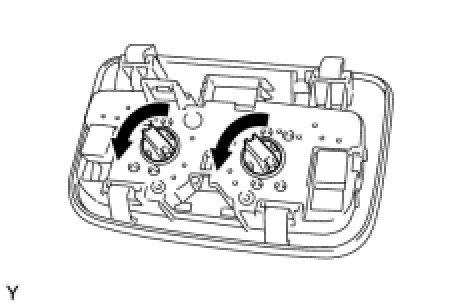

(a) Turn the 2 map light sockets and bulbs, in the direction indicated by the arrows in the illustration, to remove them.

(b) Remove the 2 map light bulbs from the light socket.
