Installation

LIGHTING: PERSONAL LIGHT ASSEMBLY: INSTALLATION

1. INSTALL MAP LIGHT BULB





(a) Install the map light bulb into the light socket.

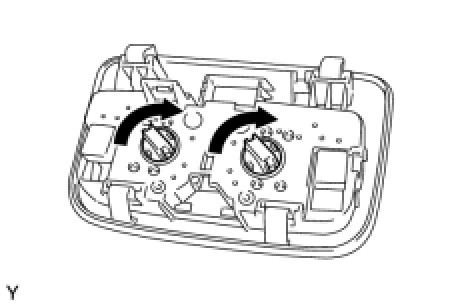

(b) Turn the map light bulb socket and bulb, in the direction indicated by the arrows in the illustration.

2. INSTALL MAP LIGHT ASSEMBLY





(a) Connect the connector.

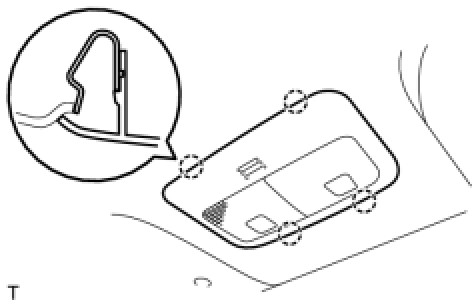

(b) Engage the 4 claws and install the map light.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
