Reassembly

EXTERIOR: REAR BUMPER (for Hatchback): REASSEMBLY

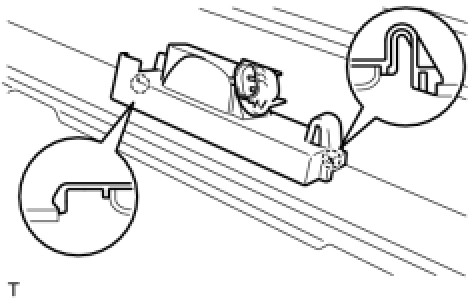

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

(a) Engage the 2 claws and install the license plate light.





2. INSTALL REAR BUMPER ENERGY ABSORBER LH

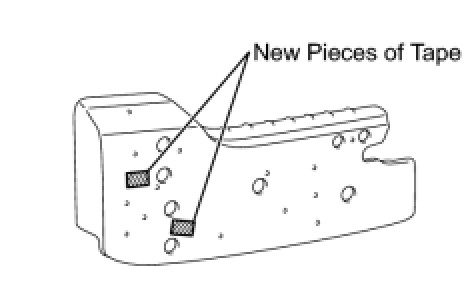

(a) Apply 2 new pieces of tape.

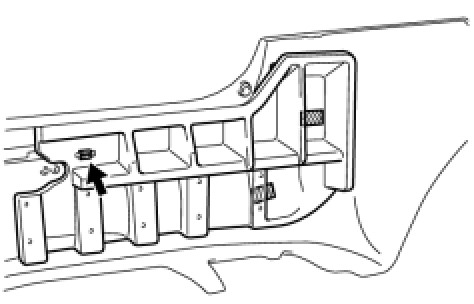

(b) Install the rear bumper energy absorber with the clip.





3. INSTALL REAR BUMPER ENERGY ABSORBER RH

HINT
Use the same procedure as for the LH side.
