AUDIO / VISUAL: STEREO JACK ADAPTER ASSEMBLY (for Sedan): INSTALLATION

1. INSTALL STEREO JACK ADAPTER ASSEMBLY

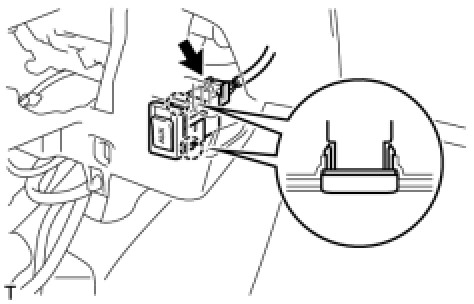

(a) Connect the stereo jack adapter connector.





(b) Engage the 2 claws and install the stereo jack adapter.

2. INSTALL INSTRUMENT LOWER PAD Installation

3. INSTALL INSTRUMENT PANEL FINISH PANEL END Installation

4. INSTALL REAR CONSOLE BOX ASSEMBLY Installation

5. INSTALL REAR CONSOLE BOX CARPET Installation

6. INSTALL REAR CONSOLE BOX UPPER REAR PANEL SUB-ASSEMBLY Installation

7. INSTALL REAR CONSOLE BOX UPPER PANEL SUB-ASSEMBLY Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

9. INSTALL INSTRUMENT PANEL LOWER CENTER FINISH PANEL Installation

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
