ECU Power Source Circuit

THEFT DETERRENT: THEFT DETERRENT SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the theft warning ECU.

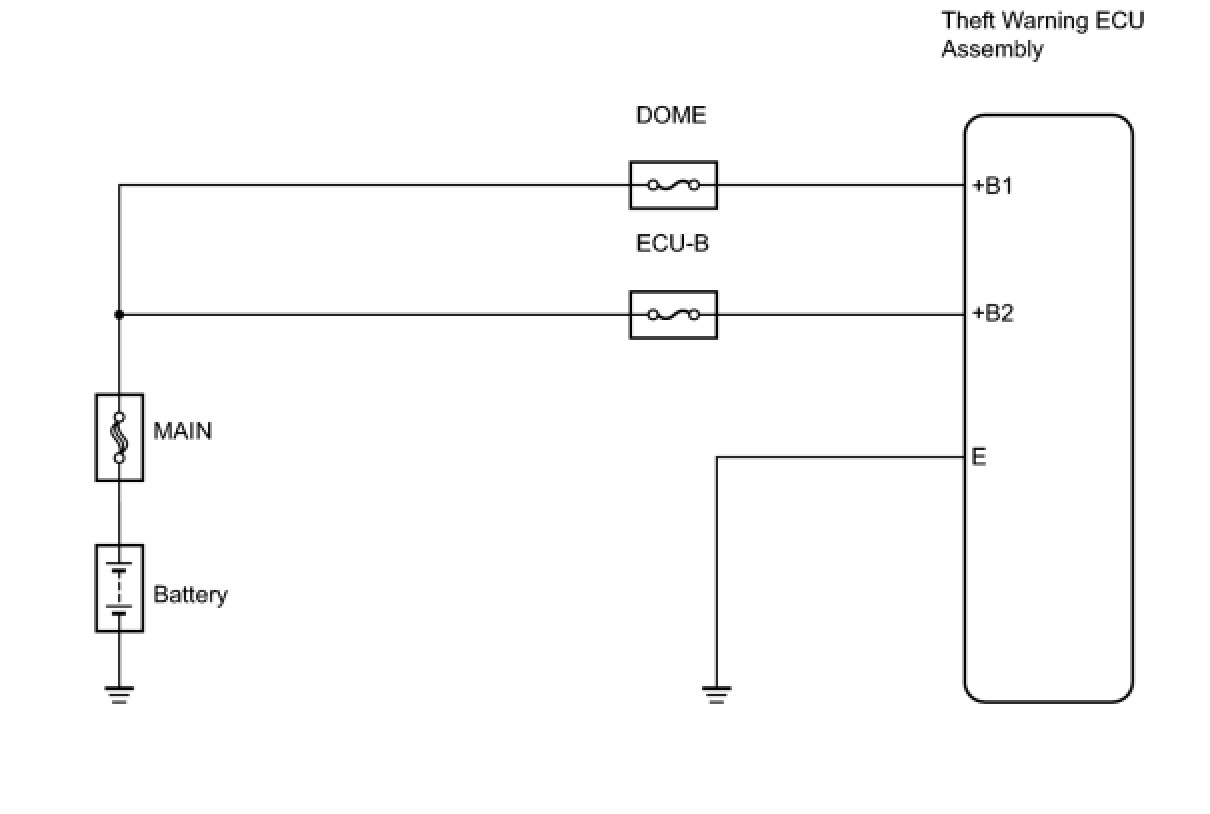

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-B, DOME)

(a) Remove the ECU-B fuse and DOME fuse from the engine room R/B.

(b) Measure the resistance.

Standard resistance:

Below 1 Ohms

(c) Reinstall the fuses.

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT THEFT WARNING ECU ASSEMBLY

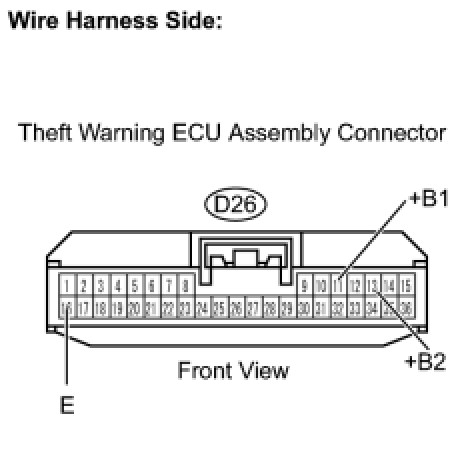

(a) Remove the theft warning ECU assembly without disconnecting the D26 connector.

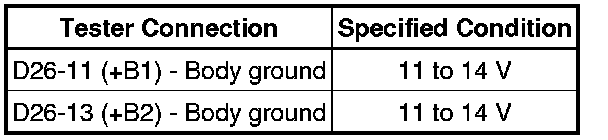

(b) Measure the voltage.

Standard voltage:

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (POWER SOURCE)

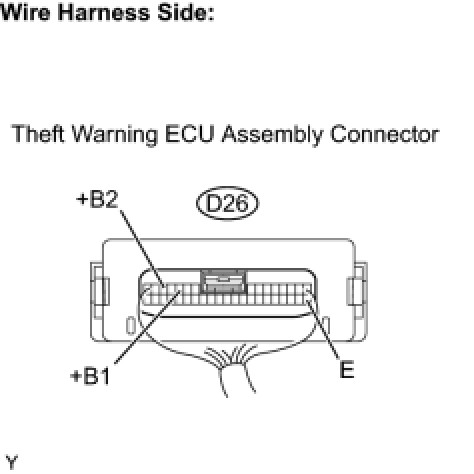

(a) Disconnect the D26 theft warning ECU connector.

(b) Measure the voltage.

Standard voltage:

(d) Reconnect the theft warning ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE THEFT WARNING ECU ASSEMBLY
