ECU Power Source Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU assembly.

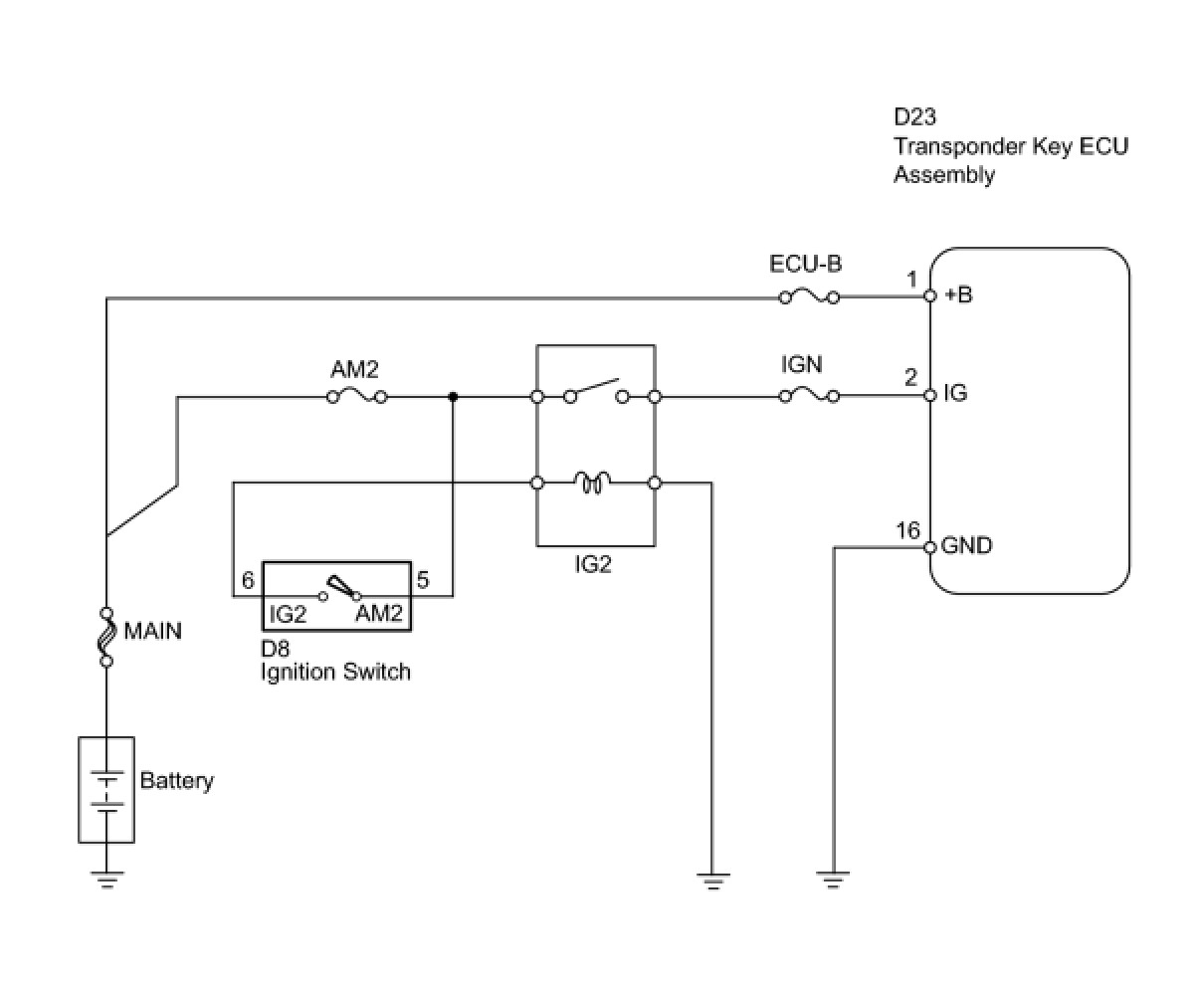

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (ECU-B)

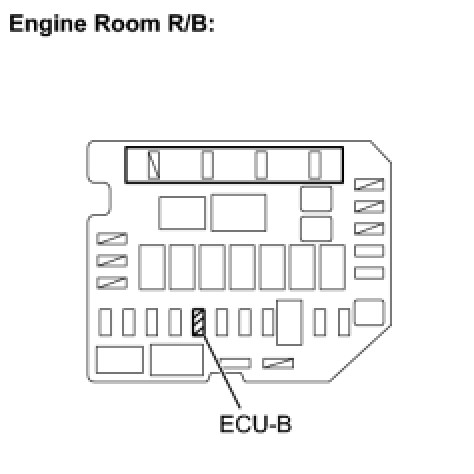

(a) Remove the ECU-B fuse from the engine room R/B and J/B.

(b) Measure the ECU-B fuse resistance.

Standard resistance:

Below 1 Ohms

(c) Reinstall the ECU-B fuse.

NG -- REPLACE FUSE
OK -- Continue to next step.

2. INSPECT FUSE (IGN)

(a) Remove the IGN fuse from the main body ECU.

(b) Measure the IGN fuse resistance.

Standard resistance:

Below 1 Ohms

(c) Reinstall the IGN fuse.

NG -- REPLACE FUSE
OK -- Continue to next step.

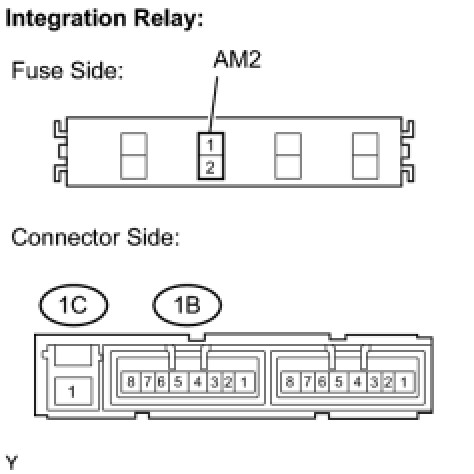

3. INSPECT INTEGRATION NO.1 RELAY (IG2 RELAY AND AM2 FUSE)

(a) Remove the integration relay from the engine room R/B and J/B.

(b) Inspect the AM2 fuse.

(1) Remove the AM2 fuse from the integration relay.

(2) Measure the resistance of the AM2 fuse.

Standard resistance:

Below 1 Ohms

(3) Reinstall the AM2 fuse.

(c) Inspect the IG2 relay.

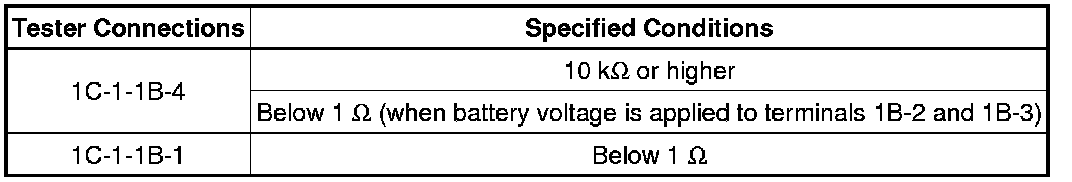

(1) Measure the resistance between the terminals shown below.

Standard resistance:

(2) Reinstall the integration relay.

NG -- REPLACE INTEGRATION RELAY
OK -- Continue to next step.

4. INSPECT IGNITION SWITCH ASSEMBLY

(a) Disconnect the D8 ignition switch connector.

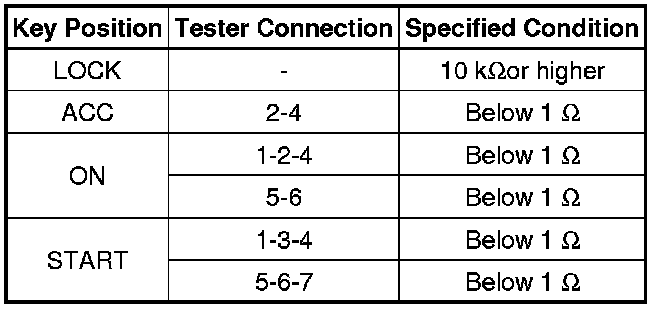

(b) Measure the resistance between the terminals shown below.

Standard resistance:

(c) Reconnect the D8 ignition switch connector.

NG -- REPLACE IGNITION SWITCH ASSEMBLY
OK -- Continue to next step.

5. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BATTERY AND BODY GROUND)

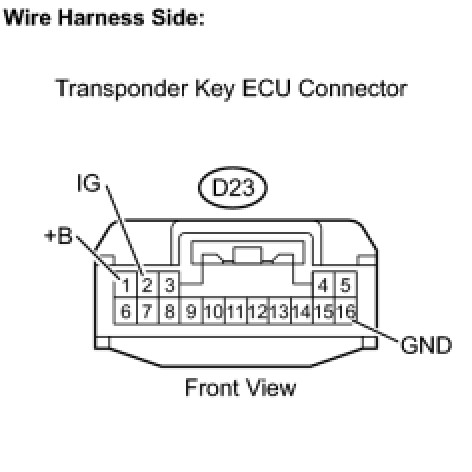

(a) Disconnect the D23 transponder key ECU connector.

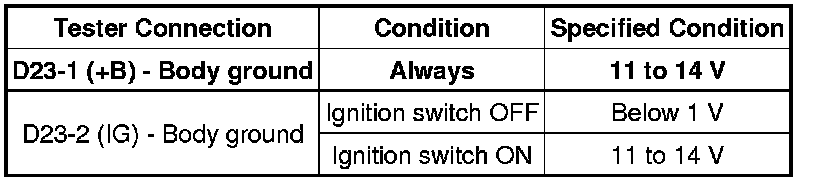

(b) Measure the voltage of the wire harness side connector.

Standard voltage:

(d) Reconnect the D23 transponder key ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
