Lock Cylinder Switch: Testing and Inspection

THEFT DETERRENT: DOOR UNLOCK SWITCH (for Sedan): INSPECTION

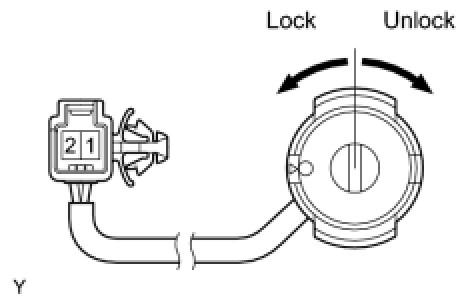

1. INSPECT DOOR UNLOCK SWITCH





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

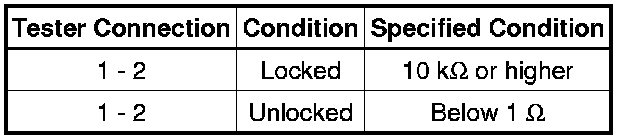

Standard Resistance:





(1) If the result is not as specified, replace the door unlock switch.
