Removal

THEFT DETERRENT: DOOR UNLOCK SWITCH (for Sedan): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

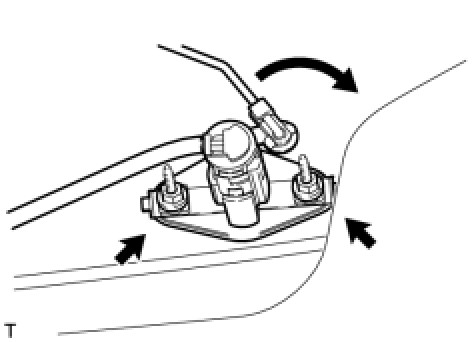

2. REMOVE LUGGAGE COMPARTMENT LOCK CYLINDER





(a) Disconnect the connector.

(b) Disconnect the luggage compartment door lock link, remove the 2 nuts and remove the luggage compartment lock cylinder.

3. REMOVE DOOR UNLOCK SWITCH





(a) Disengage the 2 claws and remove the door unlock switch.
