Installation

THEFT DETERRENT: DOOR UNLOCK SWITCH (for Sedan): INSTALLATION

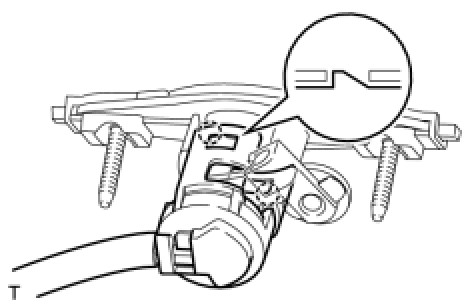

1. INSTALL DOOR UNLOCK SWITCH





(a) Engage the 2 claws and install the door unlock switch.

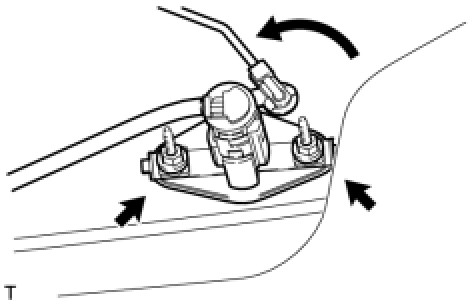

2. INSTALL LUGGAGE COMPARTMENT LOCK CYLINDER





(a) Install the luggage compartment lock cylinder with the 2 nuts.

Torque : 4.9 Nm (50 kgf-cm, 43 in-lbf)

(b) Connect the luggage compartment door lock link and connector.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
