Installation

ENGINE IMMOBILISER: TRANSPONDER KEY AMPLIFIER: INSTALLATION

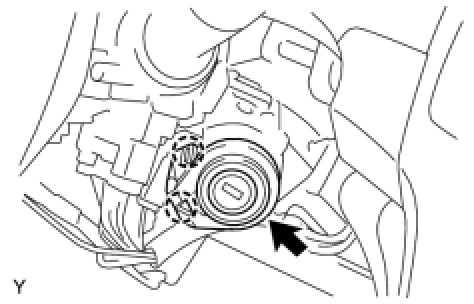

1. INSTALL TRANSPONDER KEY AMPLIFIER

(a) Engage the 2 claws and install the transponder key amplifier.





(b) Connect the connector.

2. INSTALL STEERING COLUMN COVER Installation
