Power Steering System

POWER STEERING: POWER STEERING SYSTEM: U0100,U0129: Lost Communication with ECM / PCM "A"
U0129 - Lost Communication with Brake System Control Module

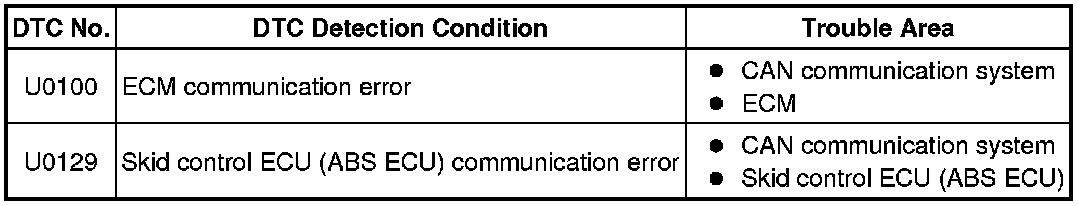

DESCRIPTION

The power steering ECU receives signals from the ECM and the skid control ECU (ABS ECU) via the CAN communication system.





HINT
When two or more DTCs starting with [U] are output simultaneously, inspect the connectors and wire harness of each ECU.

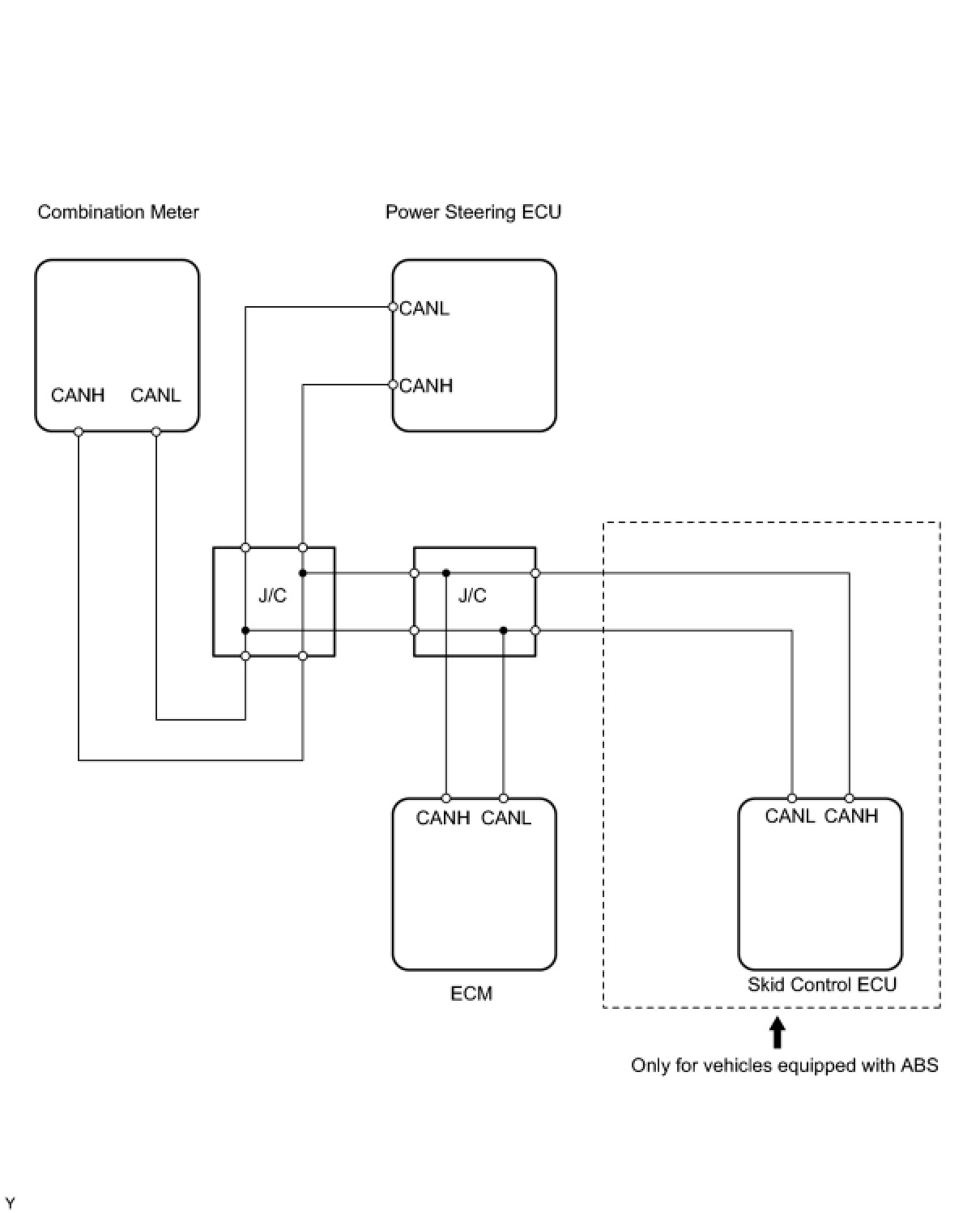

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTCs other than U0100 and U0129 are not output.

NG -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

OK -- GO TO CAN COMMUNICATION SYSTEM
