1NZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1604: Startability Malfunction
P1604 - Startability Malfunction - (Continued)

80. READ VALUE USING TECHSTREAM (ISC LEARNING VALUE)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON and turn the Techstream on.

(c) Start the engine and warm it up until the engine coolant temperature stabilizes with the A/C switch and all the accessory switches should be off

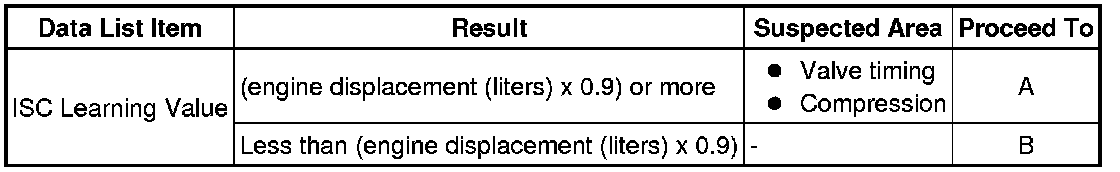

(d) Using the Techstream, select and read [ISC Learning Value] in the Data List.

Result:





B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
A -- Continue to next step.

81. CHECK CYLINDER COMPRESSION PRESSURE

(a) Inspect the compression Engine.

NG -- CHECK AND REPAIR ENGINE ASSEMBLY

OK -- CHECK VALVE TIMING

82. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

(a) Inspect the engine coolant temperature sensor Testing and Inspection.

NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK -- Continue to next step.

83. CHECK FUEL PRESSURE

HINT
For the fuel pressure inspection, refer to the following procedures Testing and Inspection.

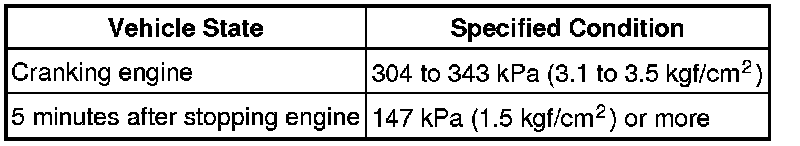

(a) Attach a fuel pressure gauge and check the fuel pressure when cranking the engine and after stopping the engine.

Standard:





NG -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
OK -- Continue to next step.

84. READ VALUE USING TECHSTREAM (LONG FT #1)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

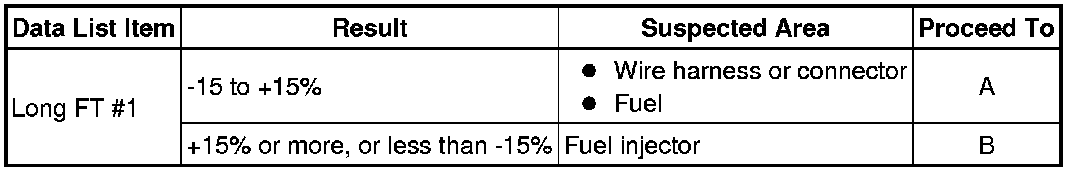

(c) Using the Techstream, select and read [Long FT #1] in the Data List.

Result:





B -- REPLACE FUEL INJECTOR
A -- Continue to next step.

85. PERFORM SIMULATION TEST

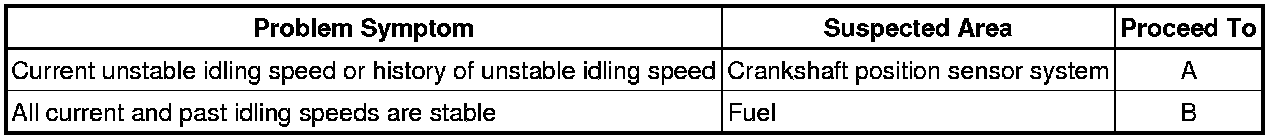

(a) Check if the idling speed after starting the engine is currently stable and has always been stable in the past.

Result:





HINT
Through the customer problem analysis, confirm the fuel being used and the location at which the fuel was added to check if the malfunction is caused by the fuel in the vehicle.

B -- REPLACE FUEL
A -- Continue to next step.

86. CHECK SENSOR INSTALLATION (CRANKSHAFT POSITION SENSOR)

(a) Check the tightening and installation condition of the crankshaft position sensor bolt.

(b) Check the connection of the crankshaft position sensor connector.

OK:

Sensor is installed correctly.

NG -- SECURELY REINSTALL SENSOR
OK -- Continue to next step.

87. CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - ECM)

(a) Check the harnesses and connectors, referring to DTC P0335 inspection procedure P0335.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

88. CHECK CRANKSHAFT POSITION SENSOR

(a) Replace the crankshaft position sensor Removal.

(b) Check the engine start operation.

OK:

Malfunction has been repaired successfully.

NG -- REPLACE ECM

OK -- END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

89. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON and turn the Techstream on.

(c) Using the Techstream, select the [Control the Fuel Pump / Speed] Active Test.

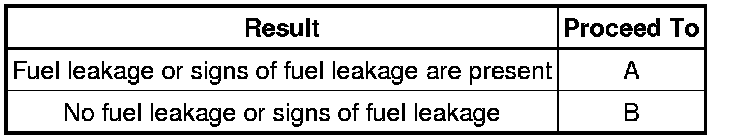

(d) When performing the Active Test, check for fuel leakage from the fuel pipes.

Result:





HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- When performing the Active Test, if there is no operating noise from the fuel pump, the fuel pump system may be malfunctioning.
- Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.
B -- INSPECT FUEL PUMP

A -- REPAIR OR REPLACE FUEL LINE

90. INSPECT FUEL PUMP

(a) Remove the fuel suction tube.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
- Make sure there is no foreign matter such as iron particles on the fuel pump and no signs that the fuel pump was stuck.
- Make sure the internal connector is securely connected.
- Make sure the fuel pump filter is not clogged.
NG -- REPLACE FUEL PUMP

OK -- REPLACE FUEL PRESSURE REGULATOR

91. CHECK FUEL PRESSURE

HINT
For the fuel pressure inspection, refer to the following procedures Testing and Inspection.

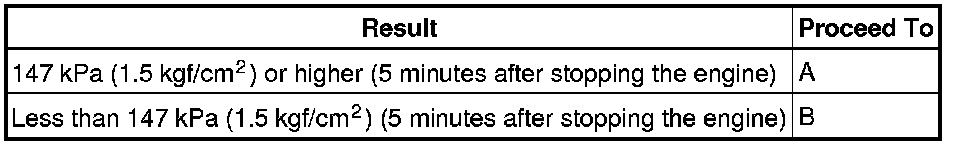

(a) Attach a fuel pressure gauge and check the fuel pressure after stopping the engine.

Result:





B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)
A -- Continue to next step.

92. READ VALUE USING TECHSTREAM (LONG FT #1)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, select and read [Long FT #1] in the Data List.

Result:





B -- REPLACE FUEL INJECTOR
A -- Continue to next step.

93. PERFORM SIMULATION TEST

(a) Check if the idling speed after starting the engine is currently stable and has always been stable in the past.

Result:





HINT
Through the customer problem analysis, confirm the fuel being used and the location at which the fuel was added to check if the malfunction is caused by the fuel in the vehicle.

B -- REPLACE FUEL
A -- Continue to next step.

94. CHECK SENSOR INSTALLATION (CRANKSHAFT POSITION SENSOR)

(a) Check the tightening and installation condition of the crankshaft position sensor bolt.

(b) Check the connection of the crankshaft position sensor connector.

OK:

Sensor is installed correctly.

NG -- SECURELY REINSTALL SENSOR
OK -- Continue to next step.

95. CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - ECM)

(a) Check the harnesses and connectors, referring to DTC P0335 inspection procedure P0335.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

96. CHECK CRANKSHAFT POSITION SENSOR

(a) Replace the crankshaft position sensor Removal.

(b) Check the engine start operation.

OK:

Malfunction has been repaired successfully.

NG -- REPLACE ECM

OK -- END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

97. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP / SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON and turn the Techstream on.

(c) Using the Techstream, select the [Control the Fuel Pump / Speed] Active Test.

(d) When performing the Active Test, check for fuel leakage from the fuel pipes.

Result:





HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- When performing the Active Test, if there is no operating noise from the fuel pump, the fuel pump system may be malfunctioning.
- Check if the vehicle ran out of fuel, as engine starting trouble due to running out of fuel is also detected.
B -- INSPECT FUEL PUMP

A -- REPAIR OR REPLACE FUEL LINE

98. INSPECT FUEL PUMP

(a) Remove the fuel suction tube.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
- Make sure there is no foreign matter such as iron particles on the fuel pump and no signs that the fuel pump was stuck.
- Make sure the internal connector is securely connected.
- Make sure the fuel pump filter is not clogged.
NG -- REPLACE FUEL PUMP
OK -- Continue to next step.

99. CHECK PURGE VSV

(a) Disconnect the vacuum hose (on the canister side) of the purge VSV.





(b) Start the engine.

(c) Idle the engine.

(d) Disconnect the connector of the purge VSV.

(e) Check if air flows through the purge VSV.

OK:

Air does not flow

(f) Connect the connector of the purge VSV.

(g) Connect the vacuum hose of the purge VSV.

HINT
When this inspection is performed, the MIL may illuminate. After finishing the inspection, check and clear DTCs DTC Check / Clear.

NG -- INSPECT PURGE VSV
OK -- Continue to next step.

100. CHECK FUEL INJECTOR

(a) Clean the inside of the surge tank with compressed air.

(b) After stopping the engine, measure the HC concentration inside the surge tank for 15 minutes.

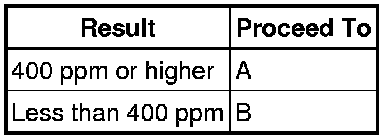

Result:





HINT
If the concentration is 400 ppm or higher, a fuel injector may have a sealing problem.

B -- CHECK INTAKE VALVE

A -- REPLACE FUEL INJECTOR

101. CHECK INTAKE VALVE

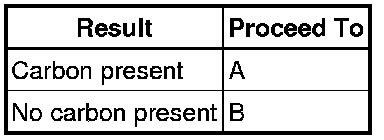

(a) Check if carbon is on the intake valves.

Result:





B -- READ VALUE USING TECHSTREAM (ISC LEARNING VALUE)

A -- CLEAN INTAKE VALVE

102. READ VALUE USING TECHSTREAM (ISC LEARNING VALUE)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Start the engine, turn off all accessory switches and warm up the engine until the engine coolant temperature stabilizes.

(d) Using the Techstream, select and read [ISC Learning Value] in the Data List.

Result:





B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
A -- Continue to next step.

103. CHECK CYLINDER COMPRESSION PRESSURE

(a) Inspect the compression Engine.

NG -- CHECK AND REPAIR ENGINE ASSEMBLY

OK -- CHECK VALVE TIMING

104. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

(a) Inspect the engine coolant temperature sensor Testing and Inspection.

NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK -- Continue to next step.

105. CHECK SENSOR INSTALLATION (CRANKSHAFT POSITION SENSOR)

(a) Check the tightening and installation condition of the crankshaft position sensor bolt.

(b) Check the connection of the crankshaft position sensor connector.

OK:

Sensor is installed correctly.

NG -- SECURELY REINSTALL SENSOR
OK -- Continue to next step.

106. CHECK SENSOR INSTALLATION (CAMSHAFT POSITION SENSOR)

(a) Check the tightening and installation condition of the camshaft position sensor bolt.

(b) Check the connection of the camshaft position sensor connector.

OK:

Sensor is installed correctly.

NG -- SECURELY REINSTALL SENSOR
OK -- Continue to next step.

107. CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - ECM)

(a) Check the harnesses and connectors, referring to DTC P0335 inspection procedure P0335.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

108. CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR - ECM)

(a) Check the harnesses and connectors, referring to DTC P0340 inspection procedure P0340.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

109. CHECK CRANKSHAFT POSITION SENSOR

(a) Replace the crankshaft position sensor Removal.

(b) Check the engine start operation.

OK:

Malfunction has been repaired successfully.

NG -- CHECK CAMSHAFT POSITION SENSOR

OK -- END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE)

110. CHECK CAMSHAFT POSITION SENSOR

(a) Replace the camshaft position sensor Removal.

(b) Check the engine start operation.

OK:

Malfunction has been repaired successfully.

NG -- REPLACE ECM

OK -- END (CAMSHAFT POSITION SENSOR IS DEFECTIVE)

111. GO TO DTC CHART Engine Control System - SFI System

112. REPAIR ENGINE IMMOBILISER SYSTEM How To Proceed With Troubleshooting

113. CHECK STARTER SIGNAL CIRCUIT Cranking Holding Function Circuit

114. CHECK AND REPAIR ENGINE ASSEMBLY OR BATTERY

115. SECURELY REINSTALL SENSOR Installation

116. REPLACE CRANKSHAFT POSITION SENSOR Removal

117. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

118. REPAIR OR REPLACE HARNESS OR CONNECTOR

119. CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

120. CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

121. CHECK FUEL INJECTOR CIRCUIT Fuel Injector Circuit

122. CHECK AND REPAIR ENGINE ASSEMBLY

123. REPLACE FUEL INJECTOR Removal

124. REPLACE FUEL PRESSURE REGULATOR Disassembly

125. REPAIR OR REPLACE AIR INDUCTION SYSTEM

126. CHARGE OR REPLACE BATTERY

127. REPAIR OR REPLACE ENGINE ASSEMBLY

128. REPLACE STARTER

129. CHARGE OR REPLACE BATTERY

130. REPLACE STARTER

131. CHECK AND REPAIR ENGINE ASSEMBLY

132. CHARGE OR REPLACE BATTERY

133. CHECK AND REPAIR ENGINE ASSEMBLY

134. REPLACE FUEL PRESSURE REGULATOR Disassembly

135. REPLACE SPARK PLUG Locations

136. CHECK CRANKSHAFT POSITION SENSOR CIRCUIT P0335

137. CHECK IGNITION COIL POWER SOURCE CIRCUIT P0351

138. REPAIR OR REPLACE HARNESS OR CONNECTOR

139. CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

140. CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

141. REPLACE CRANKSHAFT POSITION SENSOR Removal

142. CHECK FUEL INJECTOR CIRCUIT Fuel Injector Circuit

143. REPAIR OR REPLACE AIR INDUCTION SYSTEM

144. REMOVE FOREIGN OBJECT AND CLEAN THROTTLE BODY

145. REPAIR OR REPLACE HARNESS OR CONNECTOR

146. REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

147. REPAIR OR REPLACE HARNESS OR CONNECTOR

148. REPLACE MASS AIR FLOW METER Removal

149. REPAIR OR REPLACE HARNESS OR CONNECTOR

150. REPLACE AIR FUEL RATIO SENSOR Removal

151. REPLACE FUEL INJECTOR Removal

152. REPLACE SPARK PLUG (ABNORMAL CYLINDER) Locations

153. REPLACE SPARK PLUG (ALL CYLINDER) Locations

154. REPLACE FUEL PRESSURE REGULATOR Disassembly

155. CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

156. REPLACE FUEL INJECTOR Removal

157. CHECK FUEL INJECTOR CIRCUIT Fuel Injector Circuit

158. REPAIR OR REPLACE HARNESS OR CONNECTOR

159. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

160. END (CAMSHAFT POSITION SENSOR IS DEFECTIVE) Removal

161. SECURELY REINSTALL SENSOR Installation

162. SECURELY REINSTALL SENSOR Installation

163. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

164. END (CAMSHAFT POSITION SENSOR IS DEFECTIVE) Removal

165. REPAIR OR REPLACE HARNESS OR CONNECTOR

166. REPAIR OR REPLACE HARNESS OR CONNECTOR

167. CHECK AND REPAIR ENGINE ASSEMBLY

168. REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

169. REPLACE FUEL INJECTOR Removal

170. REPLACE FUEL

171. SECURELY REINSTALL SENSOR Installation

172. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

173. REPAIR OR REPLACE HARNESS OR CONNECTOR

174. REPLACE FUEL PUMP Removal

175. REPLACE FUEL INJECTOR Removal

176. REPLACE FUEL

177. SECURELY REINSTALL SENSOR Installation

178. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

179. REPAIR OR REPLACE HARNESS OR CONNECTOR

180. REPLACE FUEL PUMP Removal

181. INSPECT PURGE VSV Testing and Inspection

182. CHECK AND REPAIR ENGINE ASSEMBLY

183. REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

184. SECURELY REINSTALL SENSOR Installation

185. SECURELY REINSTALL SENSOR Installation

186. END (CRANKSHAFT POSITION SENSOR IS DEFECTIVE) Removal

187. END (CAMSHAFT POSITION SENSOR IS DEFECTIVE) Removal

188. REPAIR OR REPLACE HARNESS OR CONNECTOR

189. CHARGE OR REPLACE BATTERY

190. REPLACE ECM Removal

191. REPLACE ECM Removal

192. REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

193. REPAIR OR REPLACE FUEL LINE

194. REPAIR OR REPLACE FUEL SYSTEM

195. REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

196. REPAIR OR REPLACE FUEL SYSTEM

197. REPLACE FUEL INJECTOR Removal

198. CLEAN OR REPLACE THROTTLE BODY Removal

199. END

200. INSPECT STARTER

201. REPLACE FLYWHEEL SUB-ASSEMBLY OR DRIVE PLATE AND RING GEAR Removal

202. CHECK STARTER SIGNAL CIRCUIT Cranking Holding Function Circuit

203. INSPECT STARTER

204. REPLACE FUEL INJECTOR Removal

205. REPLACE IGNITION COIL Locations

206. REPAIR OR REPLACE FUEL LINE

207. REPLACE ECM Removal

208. REPLACE CAMSHAFT TIMING OIL CONTROL VALVE Removal

209. REPLACE MASS AIR FLOW METER Removal

210. REPLACE MASS AIR FLOW METER Removal

211. REPLACE FUEL INJECTOR Removal

212. REPAIR OR REPLACE FUEL LINE

213. REPLACE ECM Removal

214. REPLACE ECM Removal

215. CHECK VALVE TIMING Adjustments

216. REPLACE ECM Removal

217. REPAIR OR REPLACE FUEL LINE

218. REPLACE FUEL PRESSURE REGULATOR Disassembly

219. REPLACE ECM Removal

220. REPAIR OR REPLACE FUEL LINE

221. REPLACE FUEL INJECTOR Removal

222. CLEAN INTAKE VALVE

223. CHECK VALVE TIMING Adjustments
